產品特色
- Dual Socket E (LGA-4677)
5th/4th Gen Intel® Xeon® Scalable processors - 32 DIMMs up to 8TB 3DS ECC DDR5-5600: RDIMM
- Up to 4 double-width or 7 single-width GPUs
- Integrated 2280 M.2
- 7 PCIeG5 x16 Slots
- 2x OCP3.0 slots
- AST2600, support IPMI 2.0
產品亮點

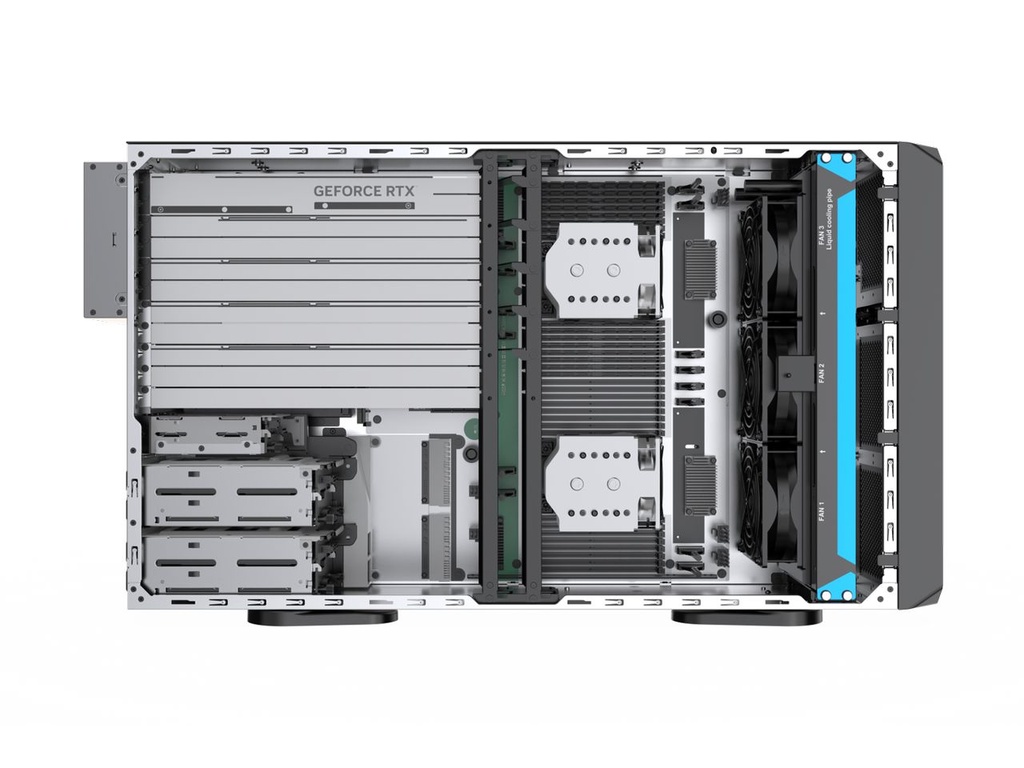

頂視圖
Internal Layout
產品規格
| Form Factor | 4U 8Bay Rack 4 GPU AI Server(Eagle Stream) |
|---|---|
| System Model | B468-G4 |
| Processor | Supports 4th/5th Generation Intel® Xeon® Scalable Processors Supports up to 350W TDP CPUs |
| Chipset | Intel® C741 chipset |
| PCIe Expansion | 7x PCIe 5.0 Slots via MCIO x8 and SFF-TA-1033 |
| GPU Card | Up to 4 double-width or 10 single-width GPUs |
| Memory | 32 DDR5 memory slots, supporting DDR5 RDIMM 4400/4800/5600MHz memory |
| Storage | Front hot-swap: Support 8 hot-swap 3.5"/2.5" SAS/SATA drives
Internal M.2: 2 x M.2 (Up to 2280) SSD, 2x SlimSAS(support SATA3.0 or PCIe3.0 x4) |
| Raid | Support to VROC，RAID 0, 1, 5, 6, 10, 50, and 60, Support cache protection |
| Network | 1x 1GbE (RJ45) onboard, Support NCSI function 1x OCP3.0 slot |
| IO Ports | Front: 2x USB2.0, 1x VGA(option)
Rear: 2x USB3.0, 1x VGA，1x 1GbE (RJ45) ,1x USB TypeC（UART） Internal: 1 x TPM header |
| Fan | Standard 3 hot-swap N+1 redundant fans, supporting 1238 specifications |
| Power Supply | 1+1 redundancy (2000W/2200W/2600W/3200W) |
| BMC | DC-SCM 2.0 module, Based Aspeed AST2600，support IPMI2.0/Redfish |
| Server Size | 6.89 (H) x 17.2 (W) x 33.15 (D)(175mm x 437mm x 842mm) |
| Operating Environment |
Operating Temp.: 10° C ~ 35° C (50° F~ 95° F)
Non-Operation Temperature:-40° C~70° C In/Non-operating Humidity: 20%~90%,(non-condensing) |
