4U 8bay Barebone Server

B468-G4
https://www.yycase.com/web/image/product.template/158/image_1920?unique=3ebb54a

4U4GPU Intel AI Server powered by 5th/4th Gen Intel Xeon Scalable processors

Overview

The B468-G4 standalone tower/rackmount barebone server is purpose-built for edge computing environments, offering a powerful and flexible solution for local AI learning models. Ideal for beginners, it serves as an excellent starting point for building your first AI machine in the office. As your needs grow, its versatile design allows integration into a rack by connecting to other rackmount solutions. Featuring 8 hot-swap bays and a PCI zone that accommodates up to 4 dual-width GPU cards, it provides essential functionality for both casual workloads and advanced applications. Whether as a workstation or entry-level AI machine, the B468-G4 delivers dependable performance for scalable AI deployment.

    This combination does not exist.

    FeaturesSpecial DesignSpecifications

    Features

    • Dual Socket E (LGA-4677)
      5th/4th Gen Intel® Xeon® Scalable processors
    • 32 DIMMs up to 8TB 3DS ECC DDR5-5600: RDIMM
    • Up to 4 double-width or 7 single-width GPUs
    • Integrated 2280 M.2
    • 7 PCIeG5 x16 Slots
    • 2x OCP3.0 slots
    • AST2600, support IPMI 2.0


    Special Design

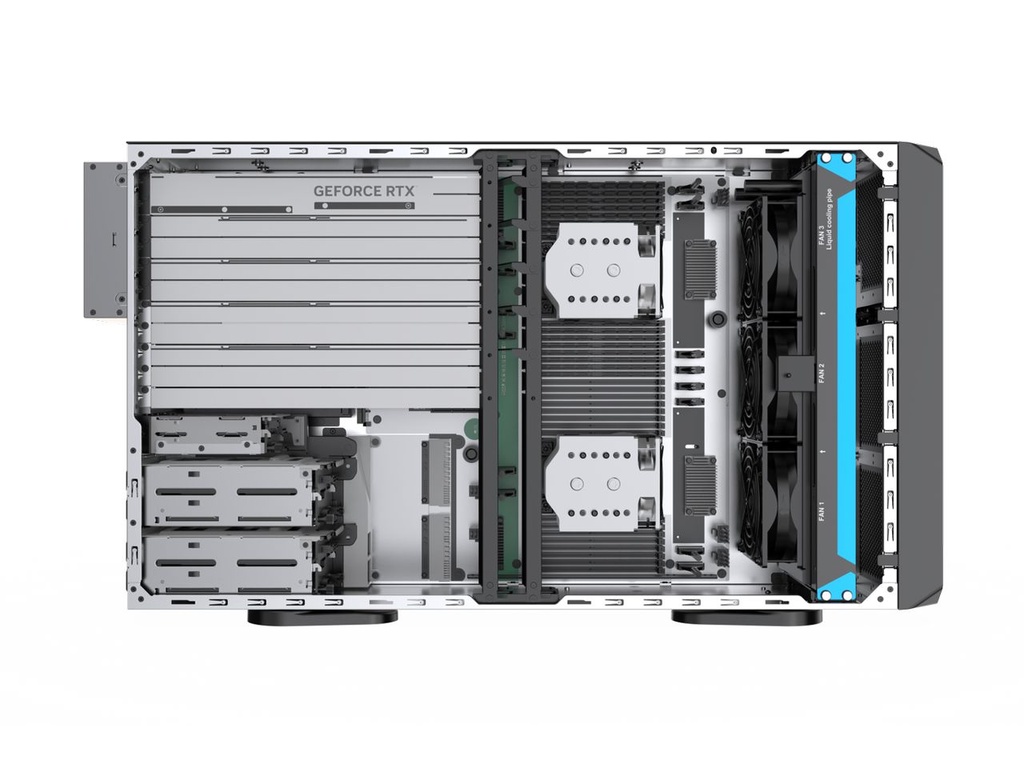

    Top view
    Internal Layout

    Specifications

    Form Factor4U 8Bay Rack 4 GPU AI Server(Eagle Stream)
    System ModelB468-G4
    Processor Supports 4th/5th Generation Intel® Xeon® Scalable Processors
    Supports up to 350W TDP CPUs
    ChipsetIntel® C741 chipset
    PCIe Expansion 7x PCIe 5.0 Slots via MCIO x8 and SFF-TA-1033
    GPU Card Up to 4 double-width or 10 single-width GPUs
    Memory 32 DDR5 memory slots, supporting DDR5 RDIMM 4400/4800/5600MHz memory
    Storage Front hot-swap: Support 8 hot-swap 3.5"/2.5" SAS/SATA drives
    Internal M.2: 2 x M.2 (Up to 2280) SSD, 2x SlimSAS(support SATA3.0 or PCIe3.0 x4)
    Raid Support to VROC，RAID 0, 1, 5, 6, 10, 50, and 60, Support cache protection
    Network 1x 1GbE (RJ45) onboard, Support NCSI function
    1x OCP3.0 slot
    IO Ports Front: 2x USB2.0, 1x VGA(option)
    Rear: 2x USB3.0, 1x VGA，1x 1GbE (RJ45) ,1x USB TypeC（UART）
    Internal: 1 x TPM header
    Fan Standard 3 hot-swap N+1 redundant fans, supporting 1238 specifications
    Power Supply1+1 redundancy (2000W/2200W/2600W/3200W)
    BMC DC-SCM 2.0 module, Based Aspeed AST2600，support IPMI2.0/Redfish
    Server Size 6.89 (H) x 17.2 (W) x 33.15 (D)(175mm x 437mm x 842mm)
    Operating
    Environment    		 Operating Temp.: 10° C ~ 35° C (50° F~ 95° F)
    Non-Operation Temperature:-40° C~70° C
    In/Non-operating Humidity: 20%~90%,(non-condensing)
