產品特色
- Dual Socket P+ (LGA-4189)
Supports 3rd Gen Intel® Xeon® Scalable processors - 18 DDR4 slots, supports 3200MHz DDR4 memory
- Up to 12 Expansion slots, support PCIe 4.0 x16
- Supports up to 10 600W dual-width GPUs
- Support SAS/SATA/NVMe drives, support hot-swap
- 2 OCP 3.0 Slots
- AST2600, support IPMI 2.0
產品亮點

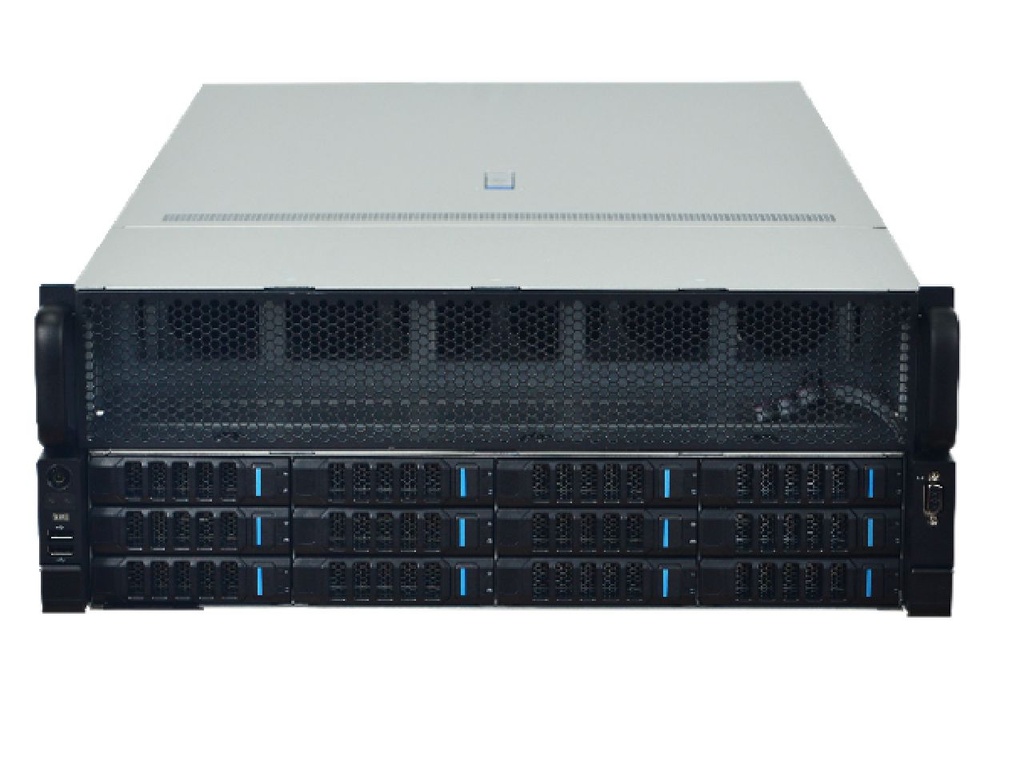

前視圖
➊ Power Button
➋ UID Button
➌ 2x USB2.0 Type A
➍ VGA
後視圖
➊ Power Supply
➋ UART（Type C port）
➌ 2x USB3.0 Type A
➍ RJ45（NC-SI）
➎ UID
➏ VGA
➐ Power Supply
主機板
➊ 6x MCIO 8i
➋ 3th Gen Intel® Xeon® Ice Lake SP
➌ 18x DIMM Slots DDR4-3200MHz
➍ 2x Slim SAS (to OCP NIC 3.0)
➎ DC-SCM
➏ PSU
➐ 2x M.2 NVMe
➑ 6x MCIO 8i
➒ 4x MCIO 8i
頂視圖
➊ Storage Module Supports 12LFF or 25SFF
➋ Support Intel Ice Lake SP
➌ Intel® C621A
➍ 12 PCIeG4 x16 FHFL Slots, Up to 10 double-width GPU(s)
➎ DC-SCM AST2600 BMC
➏ 3+1 CRPS
➐ 2x PEX88096 Switch
➑18 DDR4 RDIMM,3200MT/s, Supports Intel® Optane
➒ Fan Module 6056
產品規格
| System Model | B4612-G3 |
|---|---|
| Processor | Supports 3rd Gen. Intel® Xeon® Scalable processors (Ice Lake) Supports up to 250W TDP CPUs |
| Chipset | Intel® C621A chipset |
| PCIe Expansion | Switch：2/1x Broadcom PEX88096, 96-lanes PCIeG4 Switch or direct link to CPU
Input：10/8 MCIO (PCIe4.0 x8) Output：12 FHHL PCIe 4.0 x16 slots |
| GPU Card | Up to 10 Triple-slot Triple-Fan PCIe GPUs |
| Memory | 16 DDR4 slots, supports 2666/2933/3200MHz DDR4 memory |
| Storage | Front hot-swap: Support 12 hot-swap 3.5/2.5" SAS/SATA drives Internal M.2: 2 x M.2 (Up to 2280) SSD, support PCIe4.0 x4 or SATA 6Gb/s |
| Raid | Support to VROC，RAID 0, 1, 5, 6, 10, 50, and 60，Support Cache protection |
| Network | 1x 1GbE (RJ45) onboard, Support NCSI function
1x OCP3.0 slot |
| IO Ports | Front: 2x USB3.0, 1x VGA Rear: 2x USB3.0, 1x VGA，1x 1GbE (RJ45) ,1x USB TypeC（UART） |
| Fan | Standard 12 hot-swap N+1 redundant fans, supporting 6038/6056 specifications |
| Power Supply | 3+1 or 2+2 redundancy (2000W/2200W/2600W/3200W) |
| BMC | DC-SCM 2.0 module, Based Aspeed AST2600，support IPMI2.0/Redfish |
| Server Size | 175mm(H) x 437mm(W) x 842mm(D) |
| Operating Environment |
Operation Temperature.: 10° C ~ 35° C ,Non-Operation Temperature:-40° C~70° C
In/Non-operating Humidity: 20%~90%,(non-condensing) |
