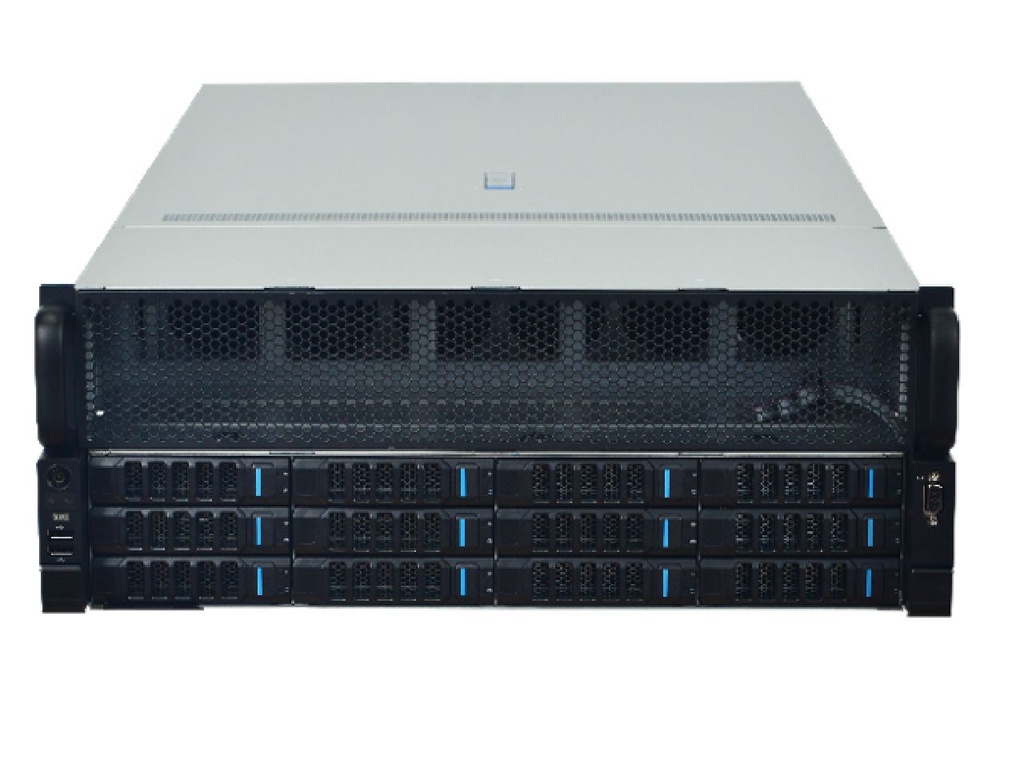

4U 12bay Barebone Server

B4612-G3
https://www.yycase.com/web/image/product.template/159/image_1920?unique=70aa978

4U10G Intel AI Server powered by 3rd Gen Intel® Xeon® Scalable processors

Overview

Designed as a quick and cost-effective solution for AI deployment, the B4612-G3 4U barebone server supports 3rd Gen Intel® Xeon® Scalable processors. Built on a robust and reliable platform, it features a high-speed PCIe expansion card capable of supporting up to 10 dual-width GPU cards, enabling effective AI learning. The high-speed 12-bay frontal design provides flexibility for data storage, while its refined I/O configuration enhances operational efficiency for handling modern tasks. This server is the perfect starting point for building a stable and efficient AI environment.

    This combination does not exist.

    FeaturesSpecial DesignSpecifications

    Features

    • Dual Socket P+ (LGA-4189)
      Supports 3rd Gen Intel® Xeon® Scalable processors
    • 18 DDR4 slots, supports 3200MHz DDR4 memory
    • Up to 12 Expansion slots, support PCIe 4.0 x16
    • Supports up to 10 600W dual-width GPUs
    • Support SAS/SATA/NVMe drives, support hot-swap
    • 2 OCP 3.0 Slots
    • AST2600, support IPMI 2.0


    Special Design

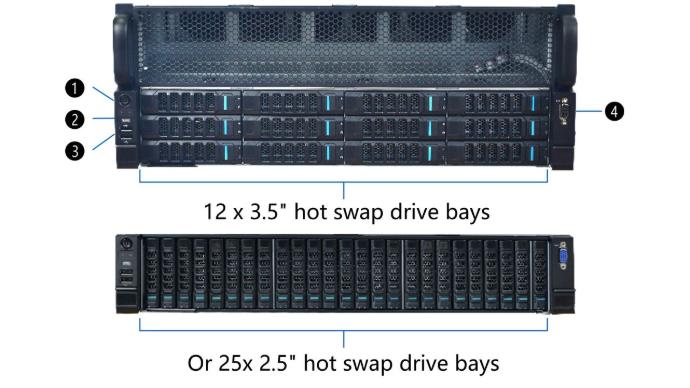

    Front view

    ➊ Power Button
    ➋ UID Button
    ➌ 2x USB2.0 Type A
    ➍ VGA

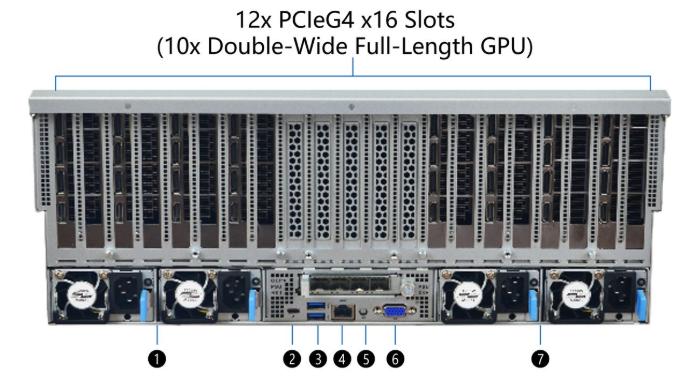

    Rear view

    ➊ OCP3.0-L
    ➋ UART（Type C port）
    ➌ 2x USB3.0 Type A
    ➍ RJ45（NC-SI）
    ➎ UID
    ➏ VGA
    ➐ OCP3.0-R

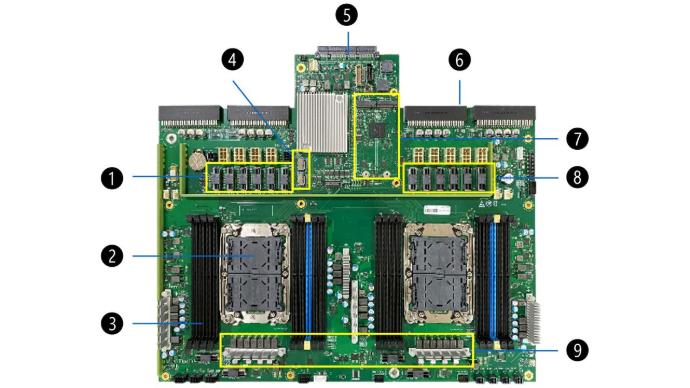

    Motherboard

    ➊ 6x MCIO x8
    ➋ 3th Gen Intel® Xeon® Ice Lake SP
    ➌ 18x DIMM Slots DDR4-3200MHz
    ➍ 2x Slim SAS (to OCP NIC 3.0)
    ➎ DC-SCM
    ➏ PSU
    ➐ 2x M.2 NVMe
    ➑ 6x MCIO 8i
    ➒ 4x MCIO 8i

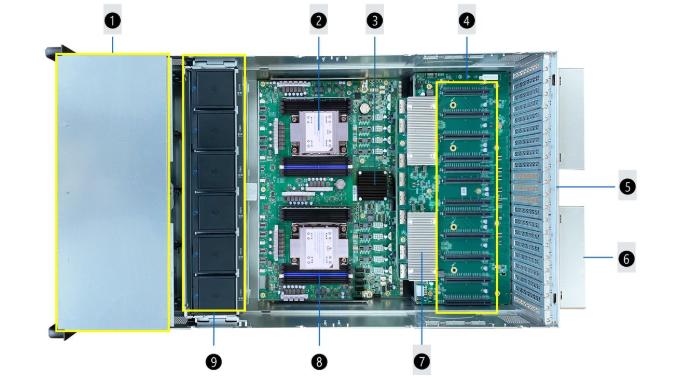

    Top view

    ➊ Storage Module Supports 12LFF or 25SFF
    ➋ Support Intel Ice Lake SP
    ➌ Intel® C621A
    ➍ 12 PCIeG4 x16 FHFL Slots, Up to 10 double-width GPU(s)
    ➎ DC-SCM AST2600 BMC
    ➏ 3+1 CRPS
    ➐ 2x PEX88096 Switch
    ➑18 DDR4 RDIMM,3200MT/s, Supports Intel® Optane
    ➒ Fan Module 6056

    Specifications

    System ModelB4612-G3
    Processor Supports 3rd Gen. Intel® Xeon® Scalable processors (Ice Lake)
    Supports up to 250W TDP CPUs
    ChipsetIntel® C621A chipset
    PCIe Expansion Switch：2/1x Broadcom PEX88096, 96-lanes PCIeG4 Switch or direct link to CPU
    Input：10/8 MCIO (PCIe4.0 x8)
    Output：12 FHHL PCIe 4.0 x16 slots
    GPU Card Up to 10 Triple-slot Triple-Fan PCIe GPUs
    Memory 16 DDR4 slots, supports 2666/2933/3200MHz DDR4 memory
    Storage Front hot-swap: Support 12 hot-swap 3.5/2.5" SAS/SATA drives
    Internal M.2: 2 x M.2 (Up to 2280) SSD, support PCIe4.0 x4 or SATA 6Gb/s
    Raid Support to VROC，RAID 0, 1, 5, 6, 10, 50, and 60，Support Cache protection
    Network 1x 1GbE (RJ45) onboard, Support NCSI function
    1x OCP3.0 slot
    IO Ports Front: 2x USB3.0, 1x VGA
    Rear: 2x USB3.0, 1x VGA，1x 1GbE (RJ45) ,1x USB TypeC（UART）
    Fan Standard 12 hot-swap N+1 redundant fans, supporting 6038/6056 specifications
    Power Supply 3+1 or 2+2 redundancy (2000W/2200W/2600W/3200W)
    BMC DC-SCM 2.0 module, Based Aspeed AST2600，support IPMI2.0/Redfish
    Server Size 175mm(H) x 437mm(W) x 842mm(D)
    Operating
    Environment    		 Operation Temperature.: 10° C ~ 35° C ,Non-Operation Temperature:-40° C~70° C
    In/Non-operating Humidity: 20%~90%,(non-condensing)
