產品規格

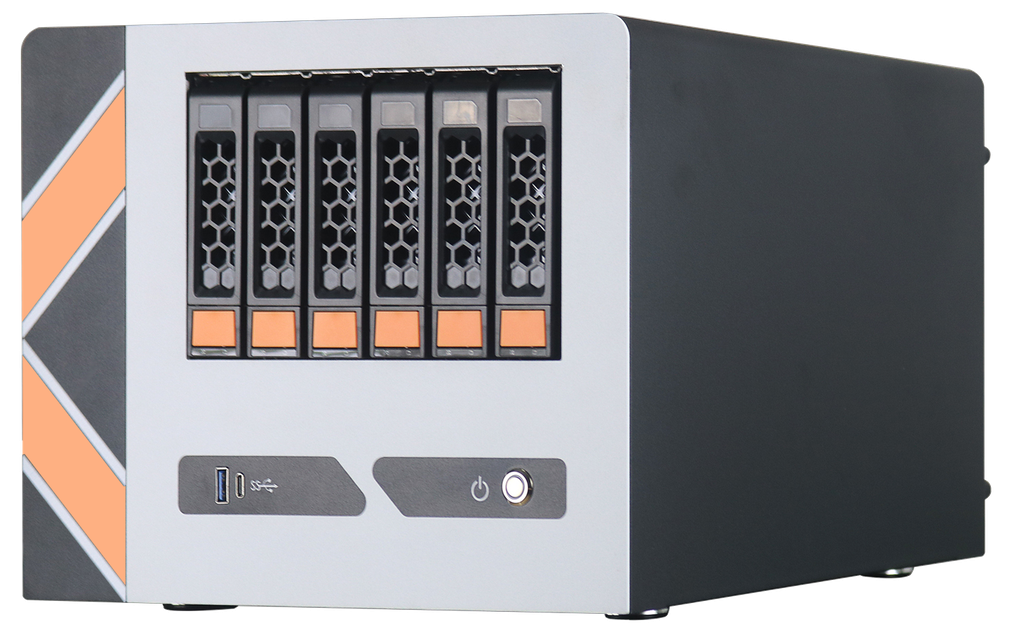

| Model | YY-NA06 |
|---|---|
| Case Dimension | 295 Dx 280 Wx 217 H mm |
| Motherboard configuration | Standard mini ITX (6.7"x6.7") |
| Drive configuration |
|
| CPU Clearance Zone | 58mm |
|
GPU Clearance Zone
| GPU length: Max. 280 mm; height: Max. 120 mm |
|
Expansion slots
|
2 full height PCI slot
|
|
Front panel control
|
Power switch, System reset USB 3.0 x 1, Type-C x1 |
|
Materials
|
Recyclable materials; RoHS compliant ABS, SECC t1.0 Sheet Metal |
|
Emissions
|
Designed to meet FCC class
|
|
Color
|
Black
|
|
Power Supply (option)
|
Flex
|
| Packing Information | 370 Dx 356 Wx 326 Hmm Net Weight / Gross Weight:6.4 kg / 7.5 kg |
