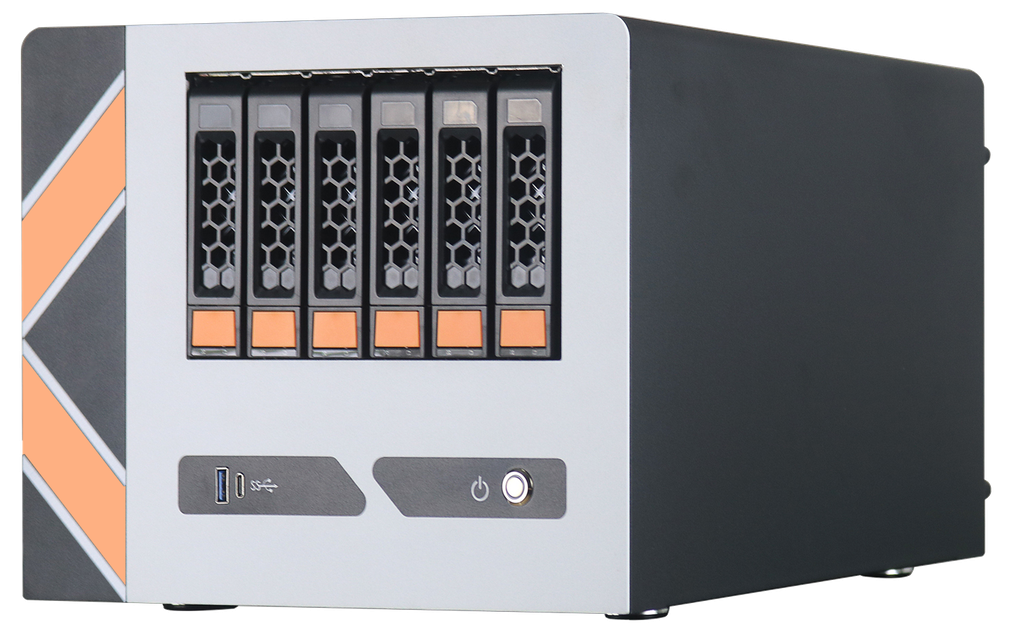

6Bay Small Nas Case

18L tiny NAS case for office/home application
https://www.yycase.com/web/image/product.template/173/image_1920?unique=d887687

Overview
This 6bay NAS case is fully compatible with mini‑ITX motherboards and flex PSUs, while still preserving two PCI slots to support advanced GPU applications. To ensure system stability, we’ve carefully positioned ventilation holes and integrated a cooling fan to efficiently dissipate heat from both storage devices and GPU cards.

    This combination does not exist.

    Specifications

    Specifications

    ModelYY-NA06
    Case Dimension295 Dx 280 Wx 217 H mm
    Motherboard configurationStandard mini ITX (6.7"x6.7")
    Drive configuration
    • Economic 3.5" / 2.5" x 6 (Supports SAS / SATA drives)
    • Internal 2.5" x 3 for Economic Version
    CPU Clearance Zone58mm
    GPU Clearance Zone
    		GPU length: Max. 280 mm; height: Max. 120 mm
    Expansion slots
    		2 full height PCI slot
    Front panel control
    		Power switch, System reset
    USB 3.0 x 1, Type-C x1
    Materials
    		Recyclable materials; RoHS compliant
    ABS, SECC t1.0 Sheet Metal
    Emissions
    		Designed to meet FCC class
    Color
    		Black
    Power Supply (option)
    		Flex
    Packing Information 370 Dx 356 Wx 326 Hmm
    Net Weight / Gross Weight:6.4 kg / 7.5 kg
