產品特色與優勢

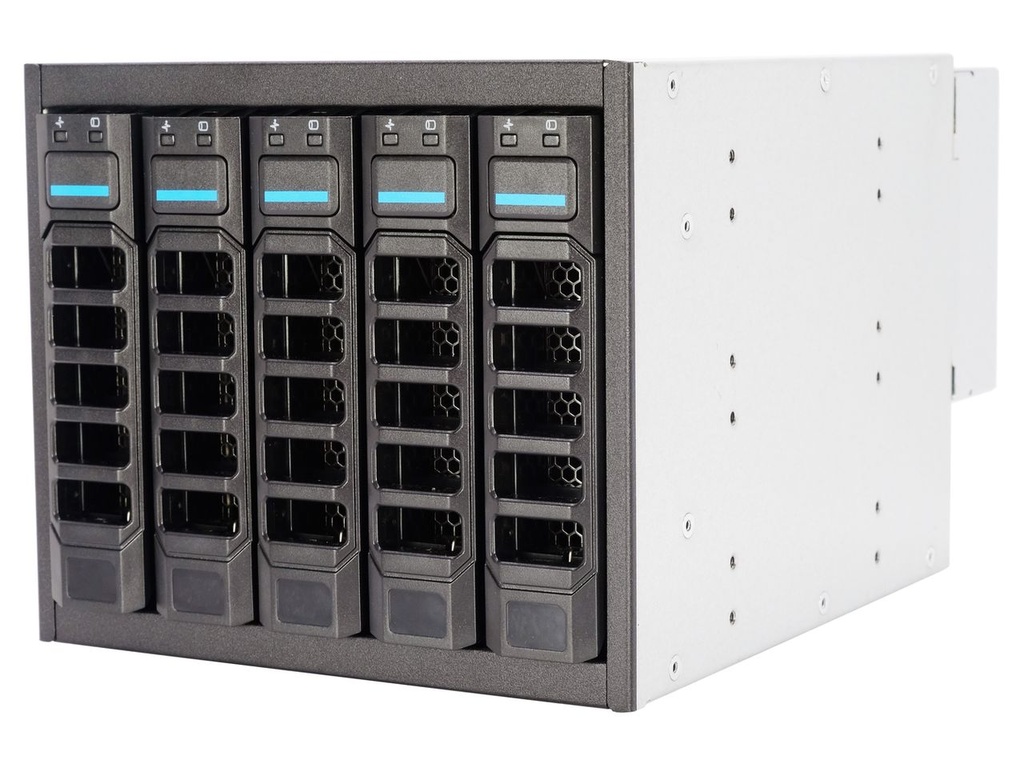

- Ready to use 5 HDD hotswap module for 3 ODD slots
- High compatibility to 3.5" and 2.5" HDD and SSD
- Fast transmission speed, up to 12Gbps
- Friendly port interface arrangement
- Support I2C signal control for advanced monitoring and configuration
- Powerful 8cm fan for great thermal control
❶ 5* SATA 7P Connectors
❷ 2* 4PIN Power Connectors
❸ 1* 1x4 Pin Fan Connector
❹ 1* 2x3 Pin BMC I2C Connector
❺ 1* 1x6 Pin ID Headers & Jumpers
❻ Preserved SGPIO Port
❷ 2* 4PIN Power Connectors
❸ 1* 1x4 Pin Fan Connector
❹ 1* 2x3 Pin BMC I2C Connector
❺ 1* 1x6 Pin ID Headers & Jumpers
❻ Preserved SGPIO Port
I2C LED Behavior:
| LED Rule | ||
|---|---|---|
| Status LED(1) | Activity LED(2) | |
| Description | Blue/Red | White |
| Drive Not Present | X | Off |
| Drive Present,No Activity | X | Solid |
| Drive Present,Activity | X | 4Hz |
| Locate(Identify) | 4Hz(Blue) | X |
| Fail | On(Red) | X |
| Rebuild | 1Hz(Red) | X |
None I2C LED Behavior
| LED Rule (Not via I2C port) | ||
|---|---|---|
| Status LED(1) | Activity LED(2) | |
| Description | White | |
| Drive Not Present | Off | |
| Drive Present,No Activity | On(White) | |
| Drive Present,Activity | On/off Consistent with P11(White) | |
Note:
- In some specific situations, the Fail/Rebuild function requires the update to the BMC firmware about the definition of the I2C signal from the motherboard side.
- When there is no I2C signal, the Activity LED behavior can only be triggered via Pin 11 of the HDD SATA port, no other LED behavior
產品規格
| Part No. | 7507-13500-A |
|---|---|
| Form Factors | 3 x 5.25 Bay for 5 HDD |
| Support HDD types | 1) For 3.5" and 2.5" HDD type
2) For SATA I,II,III HDD or SAS I, II, III HDD 3) For SATA 6G/ SAS 12G HDD 4)Support SAS primary channel only |
| Interface | 5 x SATA data ports |
| Hot swap Support | YES |
| Power Connector | 4 pin x 2 |
| Transfer rate | Support Up to SATA III 6G & SAS 12Gbps(SAS-III) |
| HDD Connection | Cable-less HDD connection |
| Tray Material | Tinplate body & Plastic front bezel |
| Cooling fan | 8cm fan x 1 |
| Power LED | Power ON : White Accessing : White blinking |
| Fan Failure LED | - |
| Overheating LED | - |
| Data cable | w/o cables |
| Product Colors | Black |
| Dimension WxHxD | 146 x 126 x 214mm |
| Weight | 1.8 kg |
