7507-13500-A Hot Swap 3.5" HDD Enclosure
https://www.yycase.com/web/image/product.template/163/image_1920?unique=d400e60

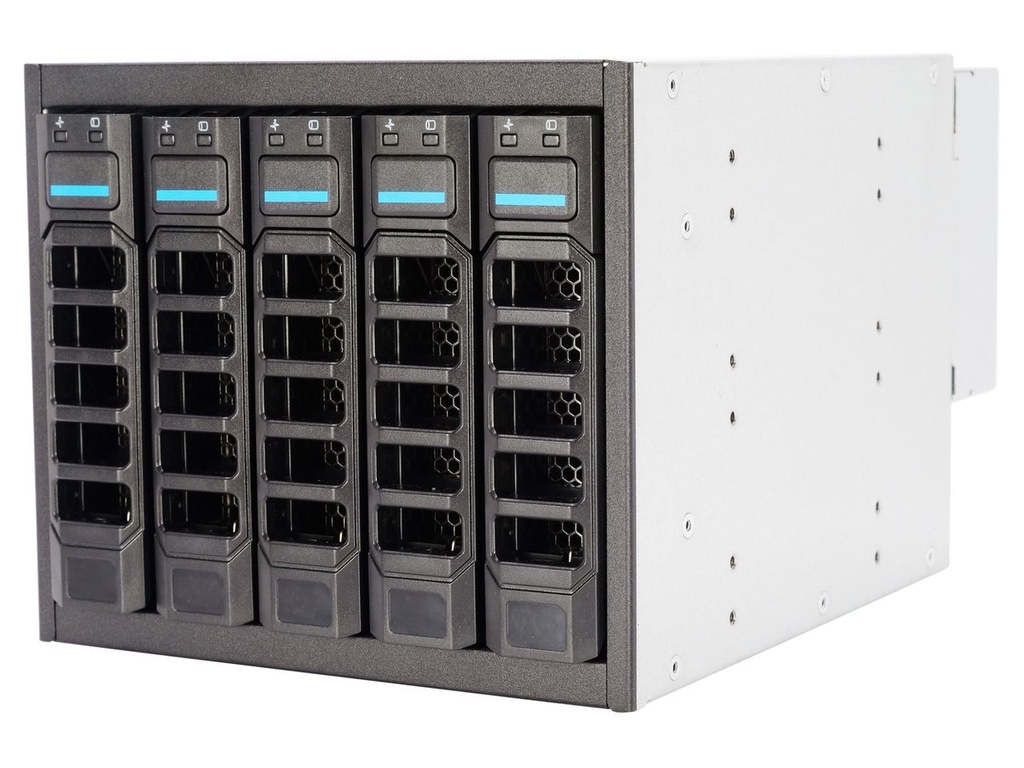

Upgrade your storage setup with this 5-bay HDD hotswap module, designed to fit 3 ODD slots effortlessly. Enjoy high compatibility with 3.5” and 2.5” HDDs and SSDs, ensuring seamless integration with various drives.

Overview

Experience ultra-fast data transfer speeds of up to 12Gbps, perfect for high-performance applications. The user-friendly port interface enhances accessibility, while I2C signal control enables advanced monitoring and configuration for optimized system management. Keep your drives cool with a powerful 8cm fan, delivering efficient thermal control for maximum reliability

    This combination does not exist.

    Features & Benefits

    • Ready to use 5 HDD hotswap module for 3 ODD slots
    • High compatibility to 3.5" and 2.5" HDD and SSD
    • Fast transmission speed, up to 12Gbps
    • Friendly port interface arrangement
    • Support I2C signal control for advanced monitoring and configuration
    • Powerful 8cm fan for great thermal control

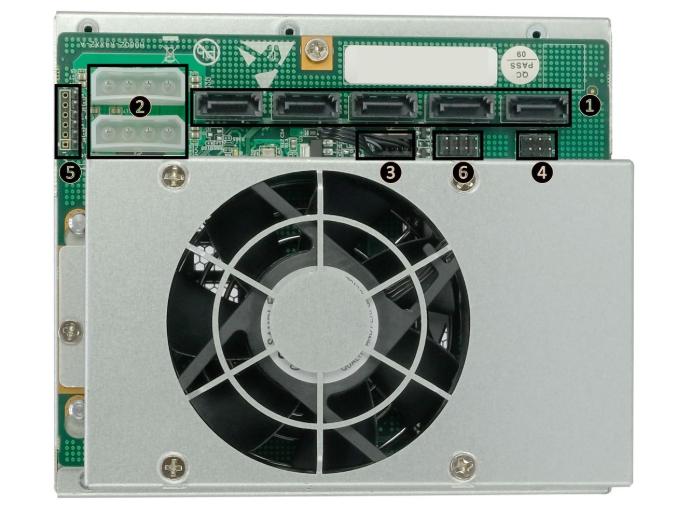

    ❶ 5* SATA 7P Connectors
    ❷ 2* 4PIN Power Connectors
    ❸ 1* 1x4 Pin Fan Connector
    ❹ 1* 2x3 Pin BMC I2C Connector
    ❺ 1* 1x6 Pin ID Headers & Jumpers
    ❻ Preserved SGPIO Port

    I2C LED Behavior:

    LED Rule
    Status LED(1)Activity LED(2)
    DescriptionBlue/RedWhite
    Drive Not PresentXOff
    Drive Present,No ActivityXSolid
    Drive Present,ActivityX4Hz
    Locate(Identify)4Hz(Blue)X
    FailOn(Red)X
    Rebuild1Hz(Red)X

    None I2C LED Behavior

    LED Rule (Not via I2C port)
    Status LED(1)Activity LED(2)
    DescriptionWhite
    Drive Not PresentOff
    Drive Present,No ActivityOn(White)
    Drive Present,ActivityOn/off
    Consistent with P11(White)

    Note:

    • In some specific situations, the Fail/Rebuild function requires the update to the BMC firmware about the definition of the I2C signal from the motherboard side.
    • When there is no I2C signal, the Activity LED behavior can only be triggered via Pin 11 of the HDD SATA port, no other LED behavior

    Specifications

    Part No.7507-13500-A
    Form Factors3 x 5.25 Bay for 5 HDD
    Support HDD types 1) For 3.5" and 2.5" HDD type
    2) For SATA I,II,III HDD or SAS I, II, III HDD
    3) For SATA 6G/ SAS 12G HDD
    4)Support SAS primary channel only
    Interface5 x SATA data ports
    Hot swap SupportYES
    Power Connector4 pin x 2
    Transfer rateSupport Up to SATA III 6G & SAS 12Gbps(SAS-III)
    HDD ConnectionCable-less HDD connection
    Tray MaterialTinplate body & Plastic front bezel
    Cooling fan8cm fan x 1
    Power LEDPower ON : White
    Accessing : White blinking
    Fan Failure LED-
    Overheating LED-
    Data cablew/o cables
    Product ColorsBlack
    Dimension WxHxD146 x 126 x 214mm
    Weight1.8 kg
