產品規格

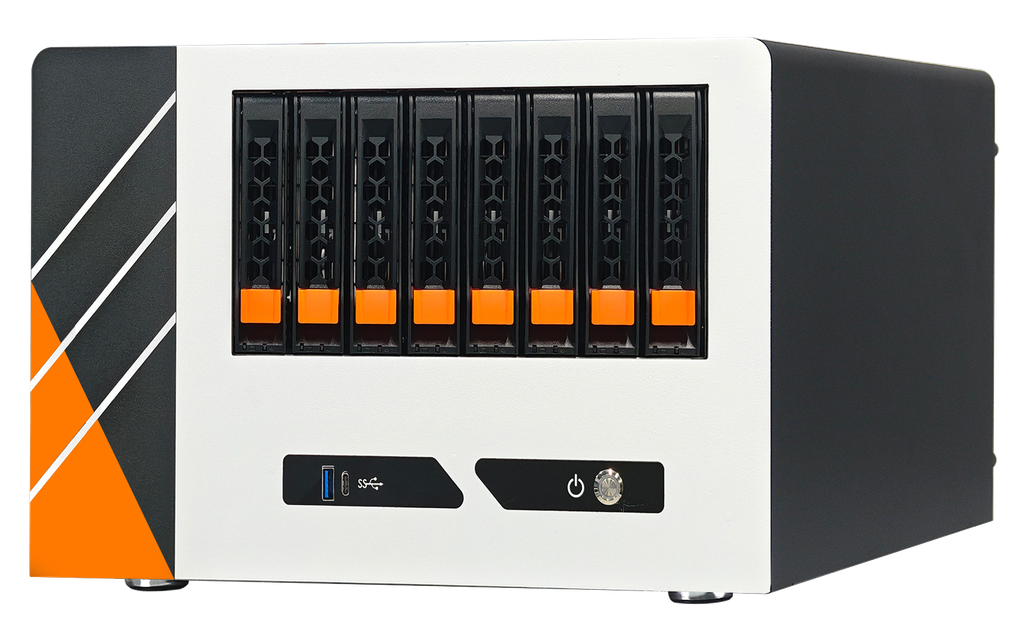

| Model | YY-NA08 |
|---|---|
| Case Dimension | 305 D x 360 W x 225 H mm |
| Motherboard configuration | Standard mini ITX (6.7" x6.7") |
| Drive configuration |
|
| CPU Clearance Zone | 60mm |
|
GPU Clearance Zone
| GPU length: Max. 265 mm; height: Max. 120 mm |
|
Expansion slots and ports
|
4 Full Height PCI slot
|
|
Front panel control
|
Power switch, System Reset USB 3.0 x 1, Type-C x1 |
|
Materials
|
Recyclable materials; RoHS compliant ABS, SECC t1.0 Sheet Metal |
|
Emissions
|
Designed to meet FCC class
|
|
Color
|
Black
|
|
Power Supply (option)
|
Flex
|
| Packing Information | 370 D x 435 W x 325 H mm Net Weight / Gross Weight:8.3 kg / 10 kg |
