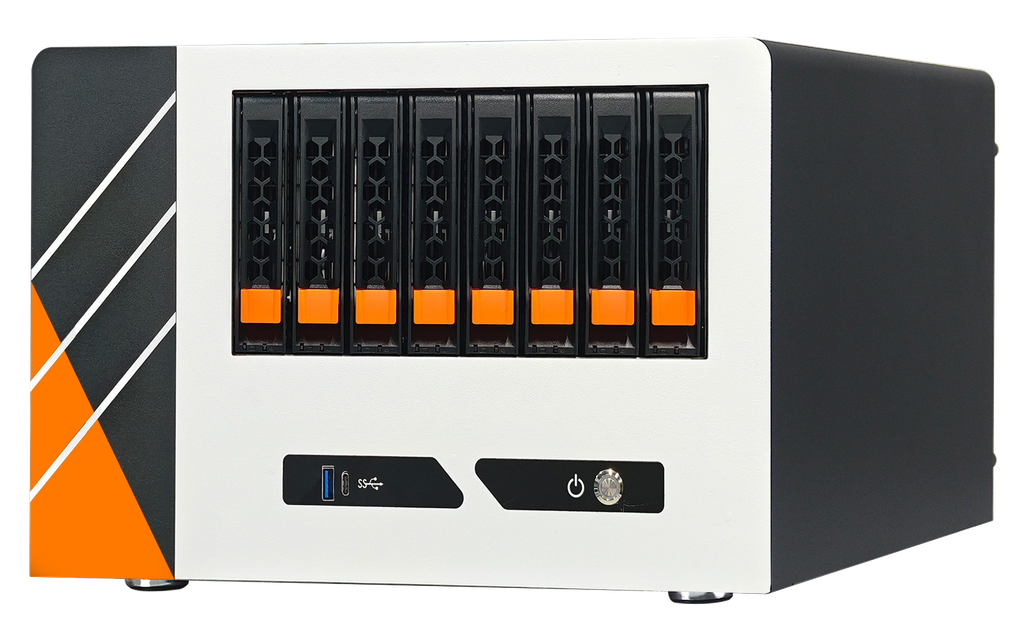

8Bay Compact Nas Case

23L Small NAS case for Office/Home Application
https://www.yycase.com/web/image/product.template/174/image_1920?unique=f65d357

Overview
This 8bay NAS case is fully compatible with mini‑ITX motherboards and flex PSUs, while still preserving two PCI slots to support advanced GPU applications. To ensure system stability, we’ve carefully positioned ventilation holes and integrated a cooling fan to efficiently dissipate heat from both storage devices and GPU cards.

    This combination does not exist.

    Specifications

    Specifications

    ModelYY-NA08
    Case Dimension305 D x 360 W x 225 H mm
    Motherboard configurationStandard mini ITX (6.7" x6.7")
    Drive configuration
    • Standard 3.5" / 2.5" x 8 (Supports SAS / SATA drives)
    • Internal 2.5" x 5 for Standard Version
    CPU Clearance Zone60mm
    GPU Clearance Zone
    		GPU length: Max. 265 mm; height: Max. 120 mm
    Expansion slots and ports
    		 4 Full Height PCI slot
    Front panel control
    		Power switch, System Reset
    USB 3.0 x 1, Type-C x1
    Materials
    		Recyclable materials; RoHS compliant
    ABS, SECC t1.0 Sheet Metal
    Emissions
    		Designed to meet FCC class
    Color
    		Black
    Power Supply (option)
    		Flex
    Packing Information 370 D x 435 W x 325 H mm
    Net Weight / Gross Weight:8.3 kg / 10 kg
