5U 機架式機箱
YY-R5xx 專為 5U 機架式機箱設計
R5系列是5U機架式機箱，具有高度彈性。
它具有多種硬體籠組合：3.5 英寸 HDD 籠和 5.25 英寸 ODD 籠的數量和方向可以根據要求更改。可選配前部大冷卻風扇，為內部設備提供最佳的冷卻效果。巨大的容量使其能夠容納 ECB 主機板和多個 PCI-E 或 GPU 卡。最重要的是，它支援滑動安裝。用戶可以輕鬆地將其與伺服器機架整合。簡而言之，它是適用於機架式或塔式 PC 應用的多功能機殼。
Specifications

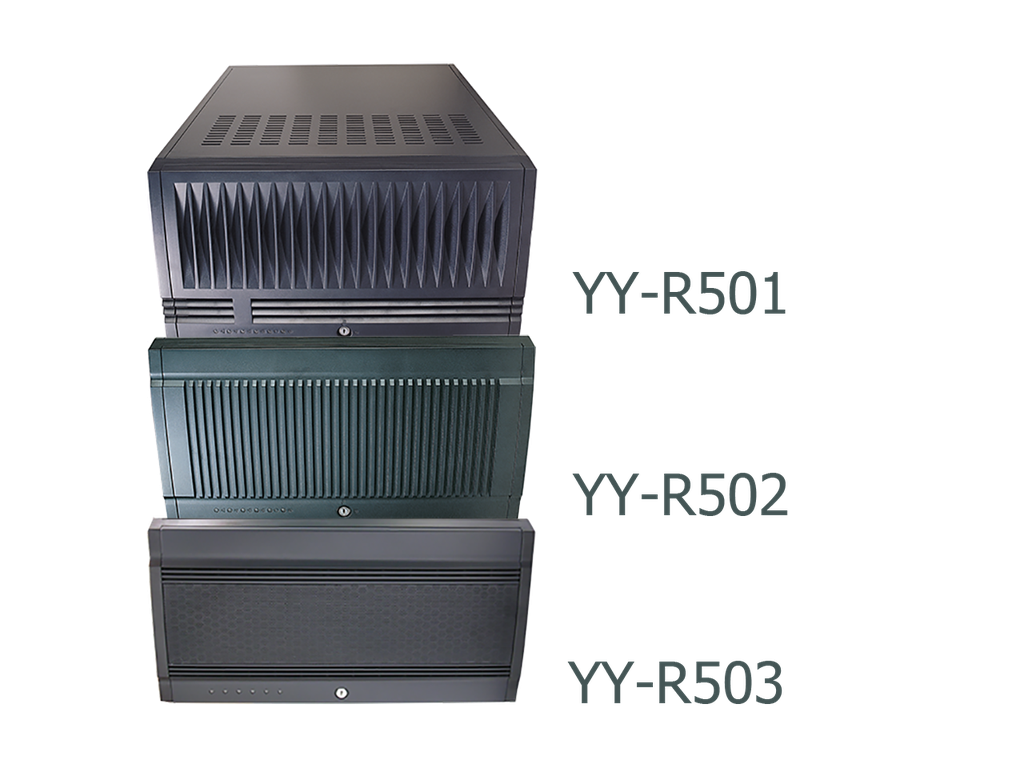

| Module | YY-R501 / YY-R502 / YY-R503 |
|---|---|
| Case dimension | 220mm W x 600mm D x 427mm H (19"5U) |
| Motherboard configuration | Extended ATX 12"x13", ATX |
| Drive configuration | (Default) A : 8 * 5.25" exposed+2*HDD Bracket (Default) B : 5 * 5.25" exposed + 5 * 3.5"HDD hidden + 2 * 3.5" HDD Bracket (Default) C : Flexible & Scaleable with Raid Module Assembly NS-160S: supports 4 internal HDD placed in 3x5.25" drive bays NS-170S: supports 5 internal HDD placed in 3x5.25" drive bays |
| Optional system cooling fans | 1*12cm fans for rear-mounted (built-in) 2* 6cm fans (optional) |
| Expansion slots and ports | 7 slots |
| Front panel control | Power switch, Reset switch, Power LED, HDD LED, Fan alarm LED, HDD failure LED, Lan LED*2; USB*4+audio in/out |
| Materials | Recyclable materials Flame retardant plastic parts and front bezel(HB) Heavy-duty steel chassis Hardened aluminum alloy handle (options for YY-R5xx) Meets the requirements of RoHs & WEEE |
| Emissions | Designed to meet FCC class B-47 CFR part15/IEC/CISPR 22:1993 |
| Net Weight | 14kgs/30.8lbs |
| Color | Cool Gray, Black |
| Power Supply | EPS12V, ATX12V SIGLE OR REUNDANT PSII 300W~650W UL, CSA, TÜV, CE approved, Doc compliance |
| Options | Hold down clamp card holder (7 slots) Foot Holder Instrusion switch Handle & rackmount kits 24" telescopic slide mounting kits B type HDD frame, by 3*5.25" drives to 5-HDD devices C type HDD Internal Enclosure (NS-160S, 170S) |
| Packing /Shipping | 3.91cuft/carton 242pcs/20'container 507pcs/40' container 586pcs/40HQ container |
