Features & Benefits
- Optional PCI Card Retainer for holding different height add-on cards
Special Design
Specifications

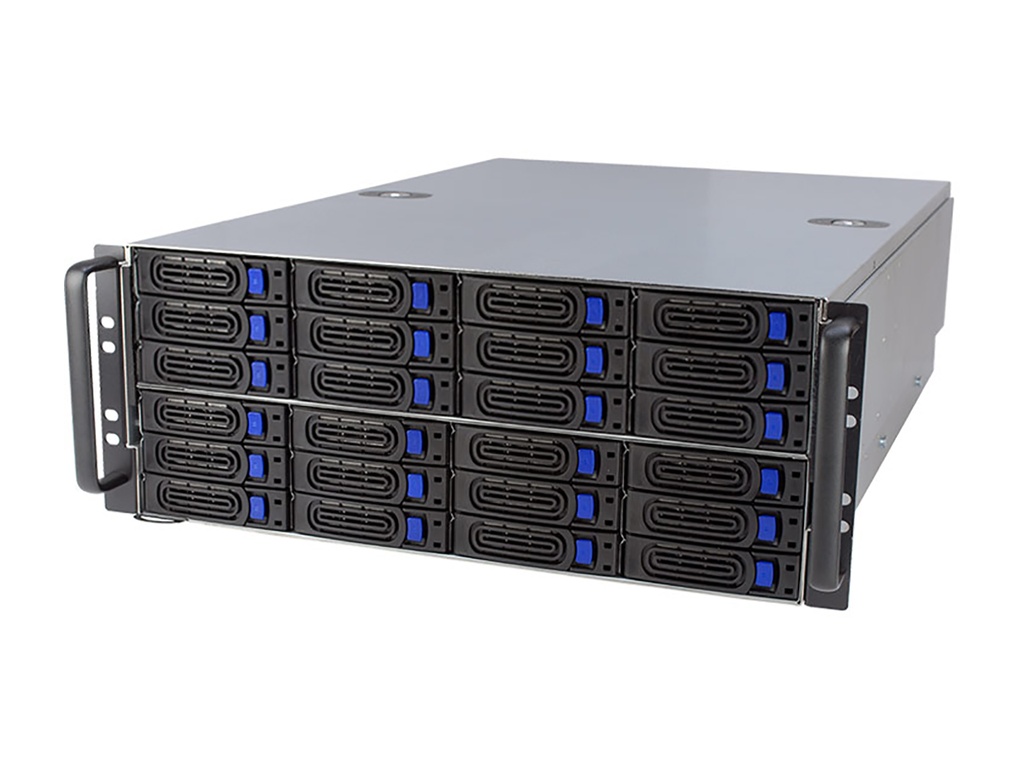

| Model | YY-R4624 |
|---|---|
| Form Factor | 4U |
| M/B Form Factor | ATX, CEB, Extended ATX (12”x13”) |
| Dimensions (WxHxD) mm | 442 x 176 x 660 (25.6”D) |
| Drive Bays - Slim ODD Bay - 2.5”HDD Bay - 3.5”HDD Bay |
0 0 24 |
| PSU Form Factor | ATX Single or Mini Redundant |
Front Panel IO and Indicators |
Power on/off switch, System reset switch 1 x Power Status, 1 x HDD Activity 2 x LAN Activity 2 x USB2.0 (default) or 2 x USB3.0 (option) |
| System Security | Intrusion Switch |
| Cooling Fans - Middle - Rear Exhaust Out |
3 x 120x120xT38mm 2 x 80x80xT25mm |
| Expansion Slots | 7 x Full Height and Full Length |
| HDD Backplane | 12Gb/s mini-SAS or mini-SAS, down compatible with 6Gb/s HDD |
| Metal Thickness | SGCC 1.2mm |
| Net Weight | 16.5kg |
| Gross Weight | 20.2kg |
| Packing / Container Loading | 55x78x30 (4.55cuft) |
