Features & Benefits
- The most versatile 2U chassis with complete hardware support
- 6G or 12Gb/s mini-SAS / SATA backplane option
- Sturdy chassis structure
- Auto lock top cover for quick access
- Modular building blocks
Special Design
Optional Kits
Lockable front panel for safety purpose
The lockable front panel provides a fresh look for the 2U rackmount case. It also has two important function. First, it can help protect the storage device, preventing malicious access of the physical device and accidental removal of the hard drives. Second, the honeycomb pattern provides great path for the cooling air. It is a worth considering accessory.
Specifications

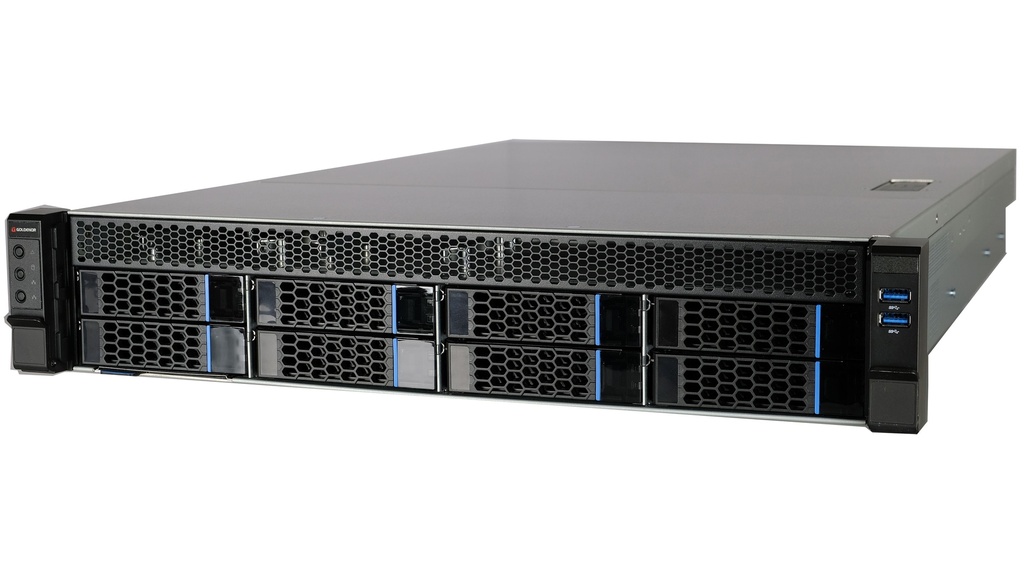

| Model | YY-R2608 |
|---|---|
| Form Factor | 2U |
| M/B Form Factor | ATX, CEB, Extended ATX (12"x13") |
| Dimensions (WxHxD) mm | 442 x 87 x 660 (25.6"D) |
| Drive Bays - Slim ODD Bay - 2.5"HDD Bay - 3.5"HDD Bay |
1 2 8 |
| PSU Form Factor | 2U Single or 2U Redundant |
Front Panel IO and Indicators |
Power on/off switch, System reset switch 1 x Power Status, 1 x HDD Activity 2 x LAN Activity 2 x USB2.0 (default) or 2 x USB3.0 (option) |
| System Security | Intrusion Switch |
| Cooling Fans - Middle | 3 x 80x80xT38mm |
| Expansion Slots | 7 x Low Profile PCI or 3 x Full height Riser PCI |
| HDD Backplane | 6Gb/s 12Gb/s mini-SAS, optional SGPIO for 12GB backplane |
| Metal Thickness | SGCC t1.2mm |
| Net Weight | 10.8kg |
| Gross Weight | 13.8kg |
| Packing (Single) / Container Loading | 55x798x18.5 (2.86cuft) |
| Optional Double Carton size/weight | 57x80x20cm / (3.22't) Gross Weight +1 kg |
