1U 機架式伺服器機箱
YY-R1604 專為 1U SAS/SATA 儲存設計

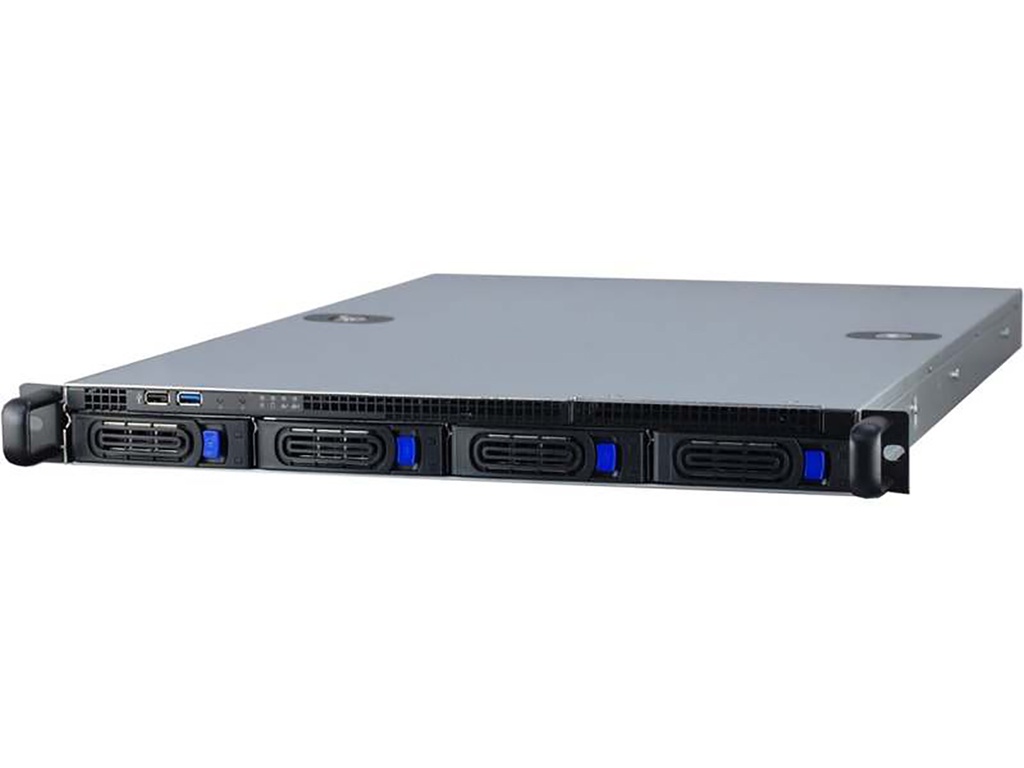

YY-R1604 是一款 1U 機架式機箱，深度為 25.6 吋。擴展的深度增強了其容納 EATX 主機板的能力，該主機板具有更先進的硬體支持，包括雙 CPU 或雙 RAM。
此機箱專為主儲存伺服器而設計。前置四個 3.5 吋硬碟托架，可選配 12Gb/s SAS/SATA 背板，提供靈活的儲存容量。內建風扇架有助於高效率冷卻系統，確保系統能夠有效率地完成任務。最重要的是，它完全可自訂。這款儲存伺服器機箱的深度可根據需求在 16 吋至 25.6 吋之間調整。它是各種應用的理想選擇。
Specifications
| Model | YY-R1604 |
|---|---|
| M/B Form Factor | ATX, CEB, Extended ATX(12”x13”) |
| Dimensions (WxHxD) | 442 x 43.5 x 660mm (25.6”D) |
| - Slim ODD bay - 2.5”HDD bay - 3.5”Hot-swap tray |
1 2 4 |
| PSU Form Factor | 1U Single or 1U Redundant, FlexATX |
| Front Panel IO and Indicators |
Power on/off switch System reset switch 1 x Power Status, 1 x HDD Activity, 2 x LAN Activity, 2 x USB2.0 (default) |
| System Security | Intrusion Switch |
| Cooling Fans | 6 x 40xT28mm |
| Rear plate of Chassis | PSU mounting, IO bracket, Expansion slot and port shall depend by request |
| HDD Backplane | 12Gb/s mini-SAS |
| Metal Thickness | SGCC t1.2mm |
| Net Weight | 10.5.0kg |
| Gross Weight | 11.8kg |
| Packing (Single) Container Loading |
55.5x79x16 (2.48’) |
| *Optional Double Carton size/weight |
57x80x17.5 +0.7kg |
