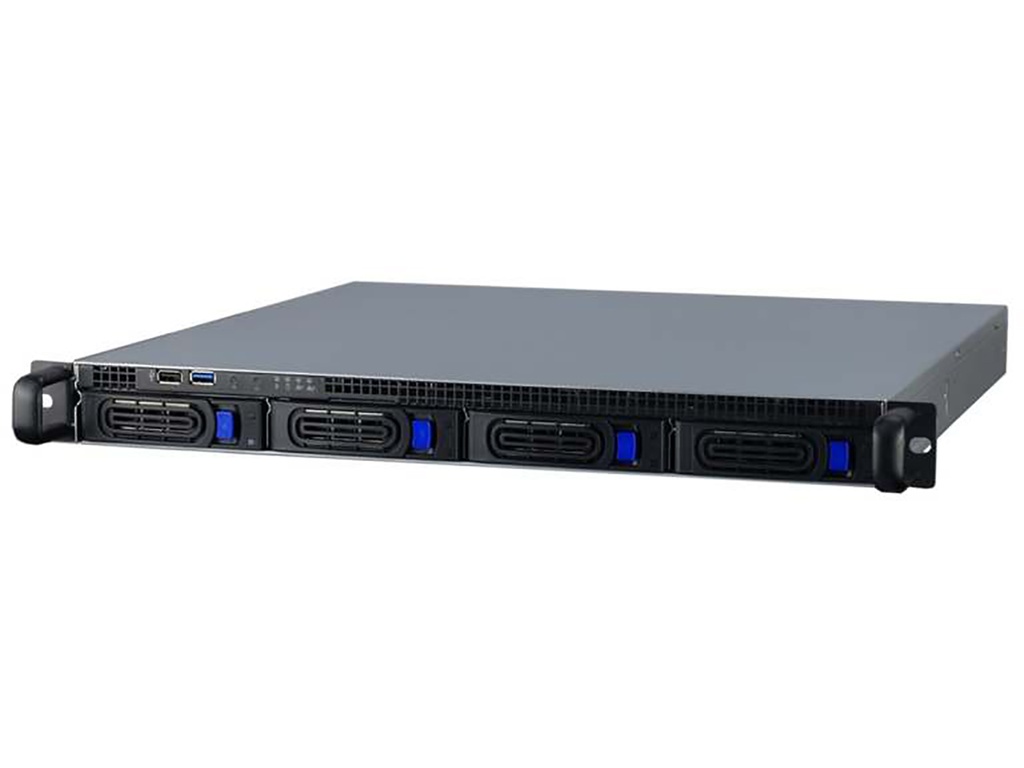

1U 機架式伺服器機箱
YY-R1404 專為 1U SAS/SATA 儲存設計
YY-R1404 是一款 1U 機架式機箱，專為主儲存伺服器設計。
前置四個 3.5 吋硬碟托架和可選的 12Gb/s SAS/SATA 背板，為輕配置的入門級伺服器提供靈活的儲存容量。雖然它只有 1U 伺服器機箱，但仍配備內建風扇架，可有效冷卻系統。最重要的是，它完全可自訂。機箱深度可根據需求在 16 英吋至 25.6 英吋之間分配。它是各種應用的理想選擇。
Specifications
| Model | YY-R1404 |
|---|---|
| M/B Form Factor | Mini ITX (6.7" x6.7" ) |
| Dimensions (WxHxD) | 442 x 43.5 x 405mm (16" D) |
| - Slim ODD bay - 2.5”HDD bay - 3.5”Hot-swap tray |
1 2 4 |
| PSU Form Factor | 1U Single or 1U Redundant, FlexATX |
| Front Panel IO and Indicators |
Power on/off switch System reset switch 1 x Power Status, 1 x HDD Activity, 2 x LAN Activity, 2 x USB2.0 (default) |
| System Security | Intrusion Switch |
| Cooling Fans | 3 x 40xT28mm |
| Rear plate of Chassis | PSU mounting, IO bracket, Expansion slot and port shall depend by request |
| HDD Backplane | 12Gb/s mini-SAS |
| Metal Thickness | SGCC t1.2mm |
| Net Weight | 6.0kg |
| Gross Weight | 7.0kg |
| Packing (Single) Container Loading |
55.5x51x16 (1.6’) |
| *Optional Double Carton size/weight |
57x52x17.5 +0.5kg |
