Feature
- Support iPad 2 / 3rd / 4th and iPad Air
- Camera open/Home closed (pin access)

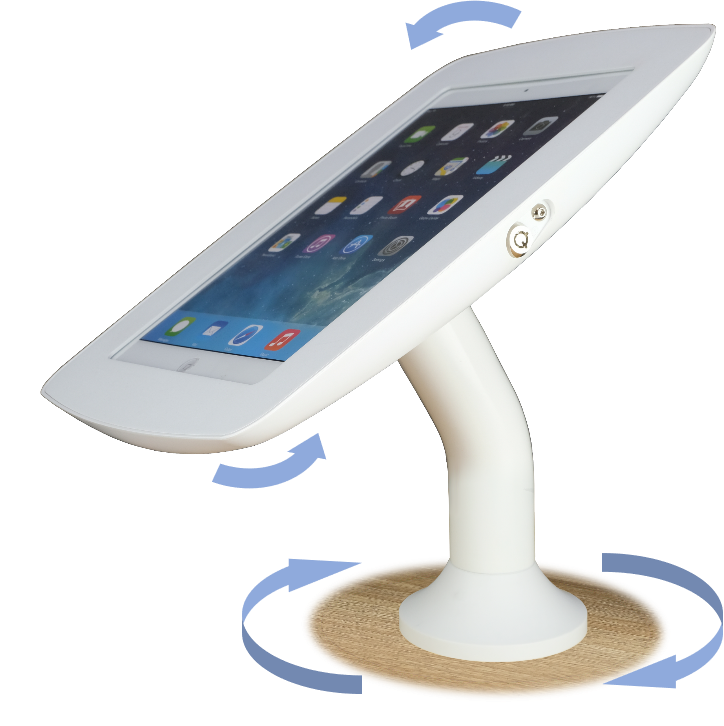

- Pivot Hinge - Rotatable for Landscape or Portrait
- Viewing angle 30° / Tube Height 125mm
- Swivel Base (0~330°,height:34mm);
mount underneath; suggest use for desktop
Photo Album
Specification
YY-KP series Mount and Stand, its module design may supply the fixed mount or allowing user to get the ideal angle with friendly Pivot, Tilt and Swivel mechanical features. Not only for iPad, but also for the most of 10” tablet by custom request.
- Dimension / Weight :
- Enclosure 312 x 232 x 30mm/750g
- Tube 31 (12cm/200g)
- Hinge/Mount : Φ95xH33mm @150g ( A / P / T / S )
Installation
Swivel Base / mount underneath
Suitable for shelf/table's
thickness less than 20mm (3/4")
Options
Face plate options:
YKP01 - Front home blocked
Home button could be blocked optional
YKP02 - Front-exposed
Optimum screen opening to support most of 9.7" Tablet; Home button exposed; Camera exposed
