Feature
- Protect the iPad with security lock
- Cable routing inside
- Support iPad 2/3/4/Air/Air2/Samsung 9.7”
- Faceplate : Camera and Home button exposed
- Mount and fixed for Landscape or Portrait viewing
- Viewing angle 30° / Tube Height 125mm
Photo Album
Specification
- Enclosure: ABS, Sheet Metal / 312 x 232 x 30mm / 750g
- Faceplate: Home button and Camera Exposed
- Hinge & Tube : Steel / Φ40x138mm / 400g
- Base : Sheet Metal / 224 x 200 x t3mm / 700g
- Color: White / Black / customized color
- Retailer Packing or Bulk Packing
- User have to integrate Enclosure, Hinge with the screw kits
- Carton size : 37x29x19Hcm N.W. 1.8kg/G.W. 2.8kg

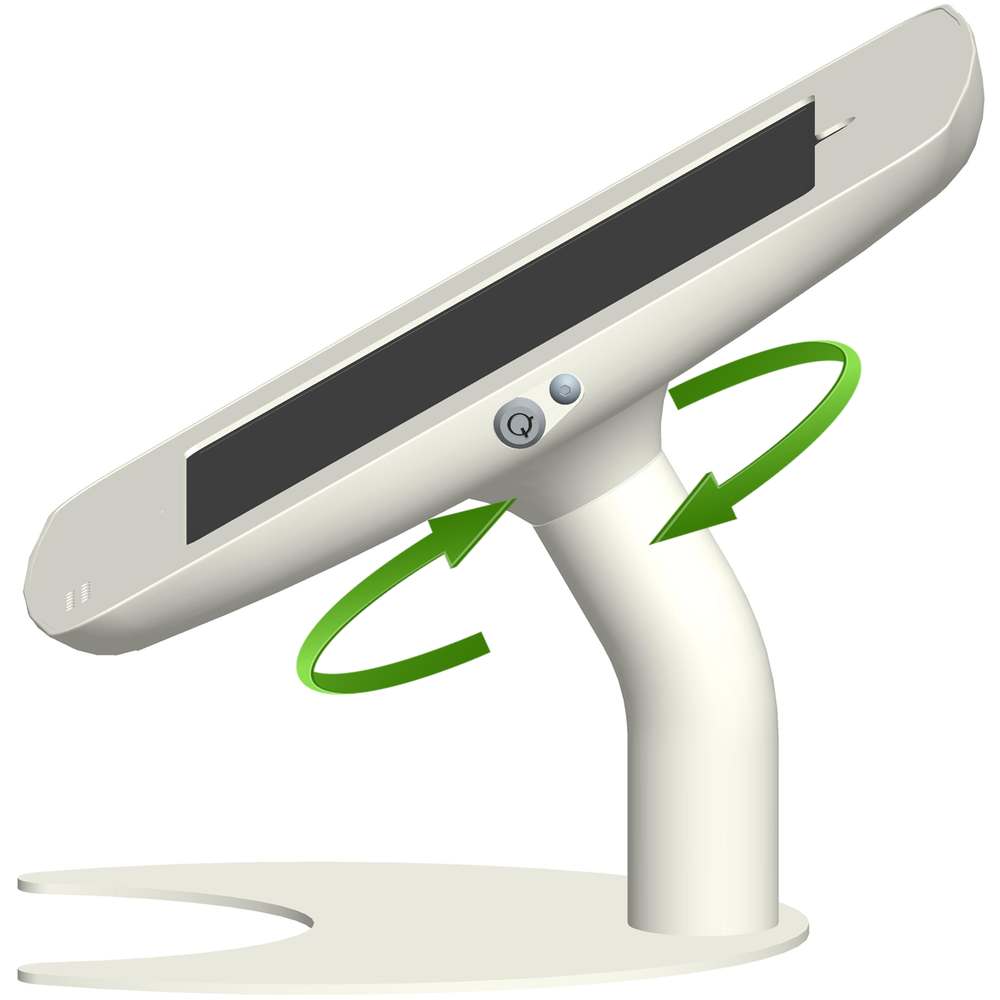

YY-KP series Mount and Stand, its module design may supply the fixed mount or allowing user to get the ideal angle with friendly Pivot, Tilt and Swivel mechanical features. Not only for iPad, but also for the most of 10" tablet by custom request.
Special Design
>
Options
Face plate options:
YKP01 - Front home blocked
Home button could be blocked optional
YKP02 - Front-exposed
Optimum screen opening to support most of 9.7" Tablet; Home button exposed; Camera exposed
