產品特色
- Dual Socket E (LGA-4677)
5th/4th Gen Intel® Xeon® Scalable processors - 32 DDR5 slots, supports 4800MHz DDR5 memory
- Up to 11 Expansion slots, support PCIe 5.0 x16
- Supports up to 10 Twin-slot Triple-Fan PCIe GPUs
- Support SAS/SATA/NVMe drives, support hot-swap
- AST2600, support IPMI 2.0
產品亮點

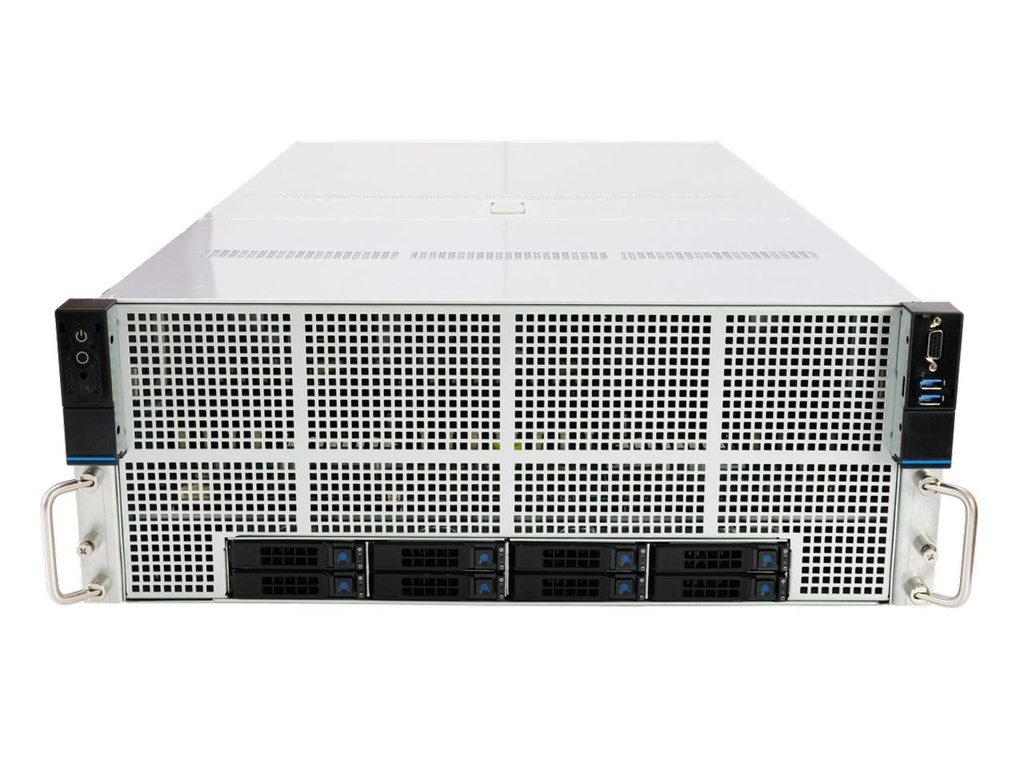

前視圖

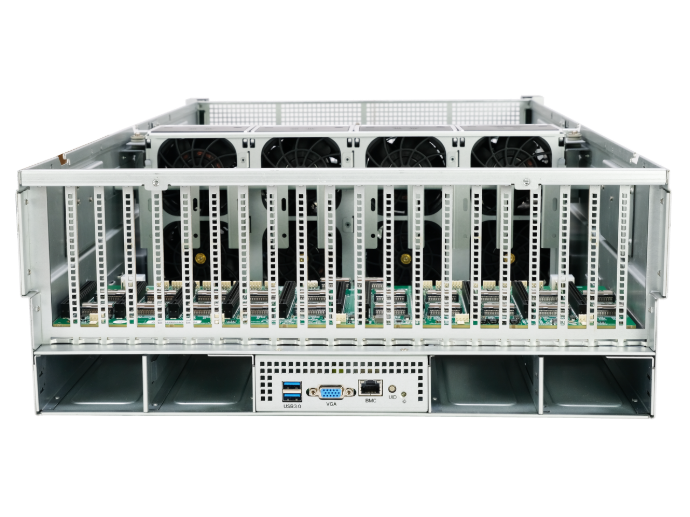

後視圖

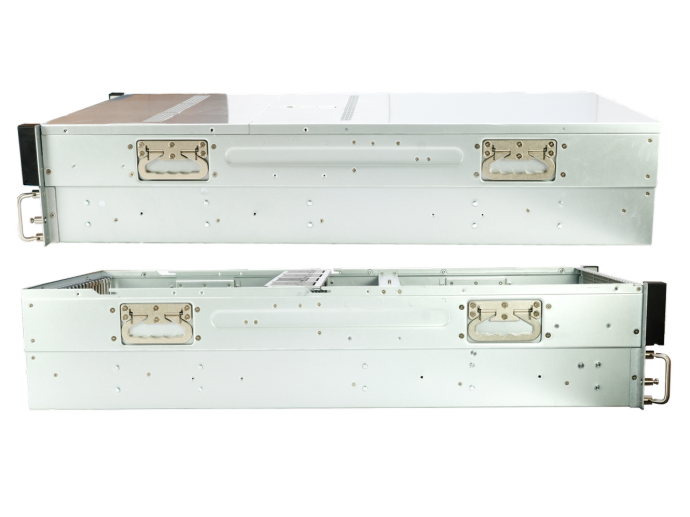

側視圖

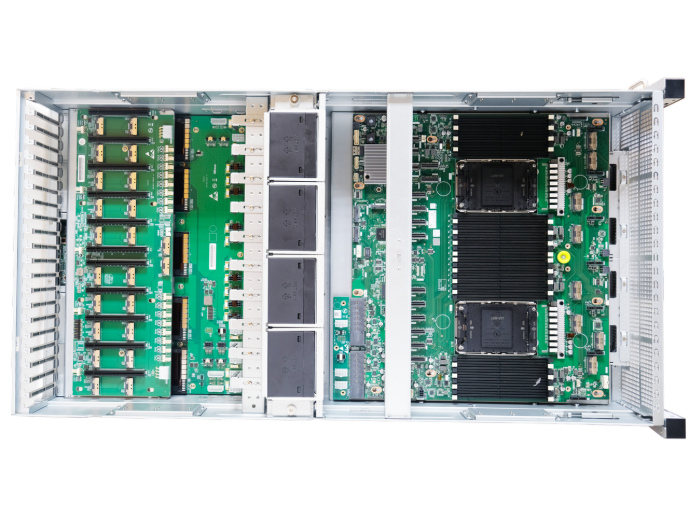

頂視圖
Internal Layout
產品變化選項：
| Order PN | GPU | Other PCIe | Storage | PSU |
|---|---|---|---|---|
| B4608-G4D1 | 8 x twin slots cards | 2 x PCIeG5 x8
1 x PCIEG5 x16 for Network card | 8 SFF | 4x2000W PSU |
| B4608-G4D2 | 8 x twin slots cards | 2 x PCIeG5 x8
1 x PCIEG5 x16 for Network card | 4 NVME SFF+ 4 SFF | 4x2000W PSU |
| B4608-G4D3 | 9 x twin slots cards | 1 x PCIEG5 x16 for Network card | 8 SFF | 4x2000W PSU |
| B4608-G4D4 | 10 x twin slots cards | - | 8 SFF | 4x2000W PSU |
產品規格
| Form Factor | 4U 8bay Rack and 8 GPU Card Server |
|---|---|
| Model | B4608-G4 |
| Processor | Support 2x Intel Sapphire/Emerald Rapids CPU,64c Supports up to 350W TDP CPUs |
| Memory | 32 DDR5 memory slots, supporting DDR5 UP to 2TB 4800MT/s, support RDIMM, LRDIMM |
| BMC | Aspeed AST2600 Chip, 2GB DDR4 SDRAM, integrate an independent 1000Mbps network interface dedicated to IPMI management. |
| Network | Support PCIe network cards (x8, x16) with 1G/2.5G/10G electrical ports and 10G/25G/100G/200G optical ports. |
| IO Ports | Front: VGA, 2x USB 3.0, UID LED/BTN , Health LED, PWR LED/BTN
Rear: VGA, 2x USB 3.0, UID LED/BTN, Mgmt RJ45 |
| PCIe Expansion | Max support 11* PCIe GEN5 X16 slots, Directlink |
| Storage | Support 8x 2.5" SAS/SATA SSD, or 4x 2.5" NVMe SSD + 4x 2.5" SAS/SATA SSD |
| Fan | 8x 8056 fans, support N+1 redundancy |
| Power Supply | 4x 1300W/1600W/2000W(100-220VAC & 240V HVDC) hot–swap power supply，support N+1 redundancy |
| Server Dimension | 6.89" (H) x 17.6" (W) x 34.25" (D)(175mm x 447mm x 870mm) |
