8L輕巧型 77系列

YY-7702 最適合商業應用

概述

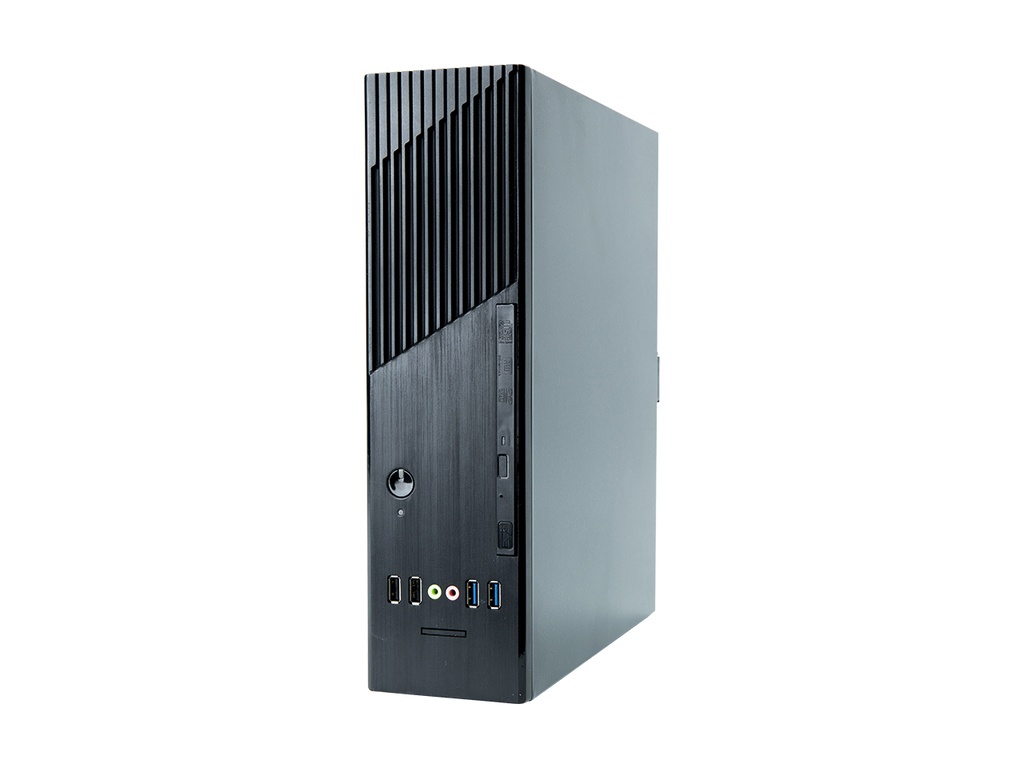

YY-7702 是一款優雅而小巧的 8L 小型電腦機殼。它很小但能夠容納基本設備，包括一組 ODD、HDD 和 SSD。
具有面向未來的 FPIO 配置的現代前面板增加了其相容性。憑藉完整的安全解決方案支持，它可以廣泛應用於各種場景，特別是商業用途。毫無疑問，這是一款您不想錯過的堅固電腦機殼。

Specifications

Model	YY-7702
Case Dimension (structure) Case Dimension (with bezel)	325 W x 263 D x 90 H mm(7.69L) 325 W x 273 D x 90 H mm(7.99L)
Motherboard configuration	Standard Micro ATX 9.6”x9.6”, mini ITX
Drive configuration	Cage A Slim ODD (T9.5mm, screw-less) 1 x 3.5” HDD (screw-less) or 1 x 2.5” HDD (screw) 1 x 2.5” HDD (screw-less) + 1 x 2.5” HDD (screw)
CPU Clearance Zone	Cage A: 41mm
Expansion slots and ports	Tool-less 4 low profile PCI slot
Front panel control	Power switch, Power LED, HDD LED USB2.0 / Audio (USB3.0 option) /Type C SD Card Reader (option)
Materials	Recyclable materials; RoHS compliant ABS, SGCC t0.6 Sheet Metal
Emissions	Designed to meet FCC class
Color	Black
Power Supply (option)	TFX
Optional Kits	Internal speaker with AMP board Chassis Intrusion Switch 60x60x10mm Fan (front-mounted)
