入門型 3A 系列

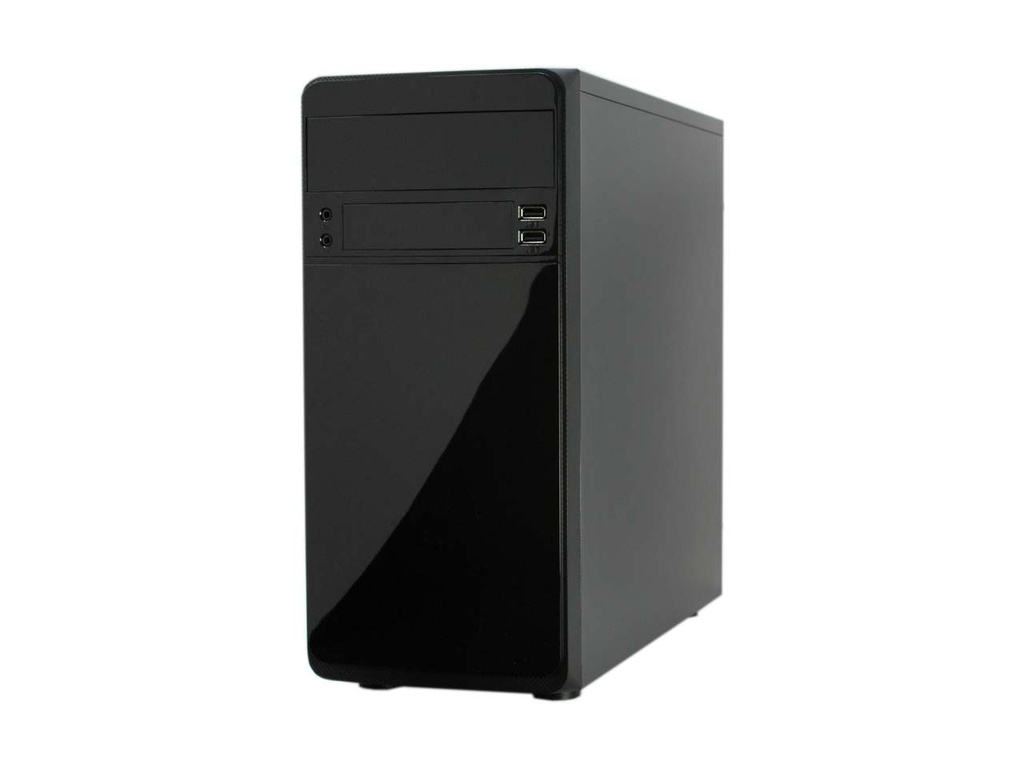

YY-3A22 最適合應用於辦公室
YY-3A22 是一款迷你直立式電腦機殼，配有光澤的鋼琴黑色邊框，適合辦公室和家庭使用。
它配備一個 5.25 吋裝置插槽和一個外露的 3.5 吋裝置插槽，可提供靈活的儲存配置。此外，它還允許使用儲存裝置背板模組擴充兩個 3.5 吋裝置或三個 2.5 吋 裝置轉換空間，根據不同的應用充分增強系統性能。雖然它很小，但它為建立通用系統提供了一個完整的平台。
產品規格
| Module | YY-3A22 |
|---|---|
| Case dimension (structure) | 165 W x 350 D x 355 H (mm) |
| Case Dimension (with bezel) | 165 W x 384 D x 355 H (mm) |
| Motherboard configuration | microATX, mini ITX |
| Drive configuration | 1 - 5.25" ODD bay 1 - 3.5” Exposed bay 2 - 3.5” HDD bay (or 2.5”) 3 - 2.5” HDD bay |
| Optional system cooling fan | 12cm Fan (front-mounted) 12cm Fan (side-mounted) 8/9cm Fan (rear-mounted) |
| Expansion slots | Standard PCI 4 Slots |
| Front panel control | Power switch, reset switch Power LED/HDD LED USB1.1 / Audio (USB2.0/3.0 option) Multi-Card Reader (option) |
| Materials Default: Option: |
Recyclable, RoHS compliant ABS front panel t0.35mm SGCC Chassis + t0.4mm Black Covers t0.4mm Fully Black Covers |
| Emissions | Designed to meet FCC class |
| Color | Black |
| Power Supply | ATX12V 300W~550W PFC, 80+, Bronze, Silver, Gold |
| Packing Infomation | 20’Container: 800pcs 40 Container: 1600pcs 40’HQ Container: 1950pcs CKD shipment 40’HQ container:7500pcs |
