入門型 3A 系列

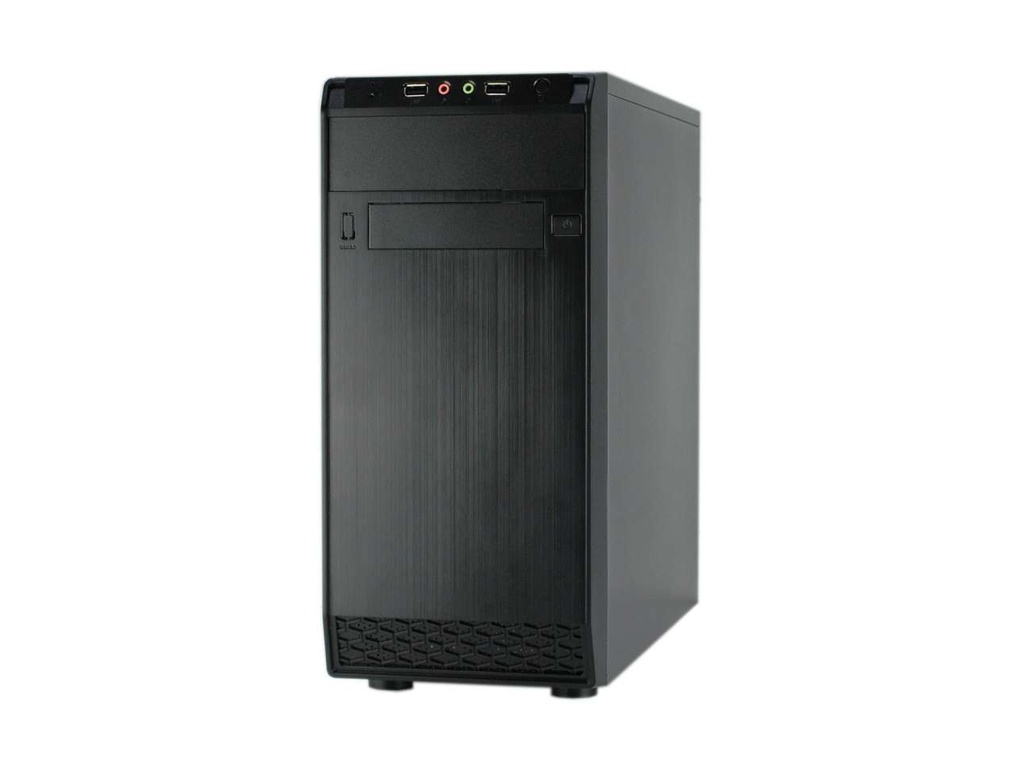

YY-3A21 最適合辦公室應用系統
YY-3A21是一款雙側開啟的迷你直立式機箱，設計易於安裝和佈線。前面板底部的時尚開口提供了高效的空氣通道，可引導冷空氣順利通過底部。後部和前部的可選 8 公分和 12 公分風扇進一步為重載系統提供了出色的通風。此外，前面板 I/O 專門設置在機箱頂部，方便在落地使用時存取。
產品規格
| Module | YY-3A21 |
|---|---|
| Case dimension (structure) | 165 W x 350 D x 355 H (mm) |
| Case Dimension (with bezel) | 165 W x 384 D x 355 H (mm) |
| Motherboard configuration | microATX, mini ITX |
| Drive configuration | 1 - 5.25" ODD bay 1 - 3.5” Exposed bay 2 - 3.5” HDD bay (or 2.5”) 3 - 2.5” HDD bay |
| Optional system cooling fan | 12cm Fan (front-mounted) 12cm Fan (side-mounted) 8/9cm Fan (rear-mounted) |
| Expansion slots | Standard PCI 4 Slots |
| Front panel control | Power switch, reset switch Power LED/HDD LED USB1.1 / Audio (USB2.0/3.0 option) Multi-Card Reader (option) |
| Materials Default: Option: |
Recyclable, RoHS compliant ABS front panel t0.35mm SGCC Chassis + t0.4mm Black Covers t0.4mm Fully Black Covers |
| Emissions | Designed to meet FCC class |
| Color | Black |
| Power Supply | ATX12V 300W~550W PFC, 80+, Bronze, Silver, Gold |
| Packing Infomation | 20’Container: 800pcs 40 Container: 1600pcs 40’HQ Container: 1950pcs CKD shipment 40’HQ container:7500pcs |
