產品規格
| 標準規格 | |
|---|---|

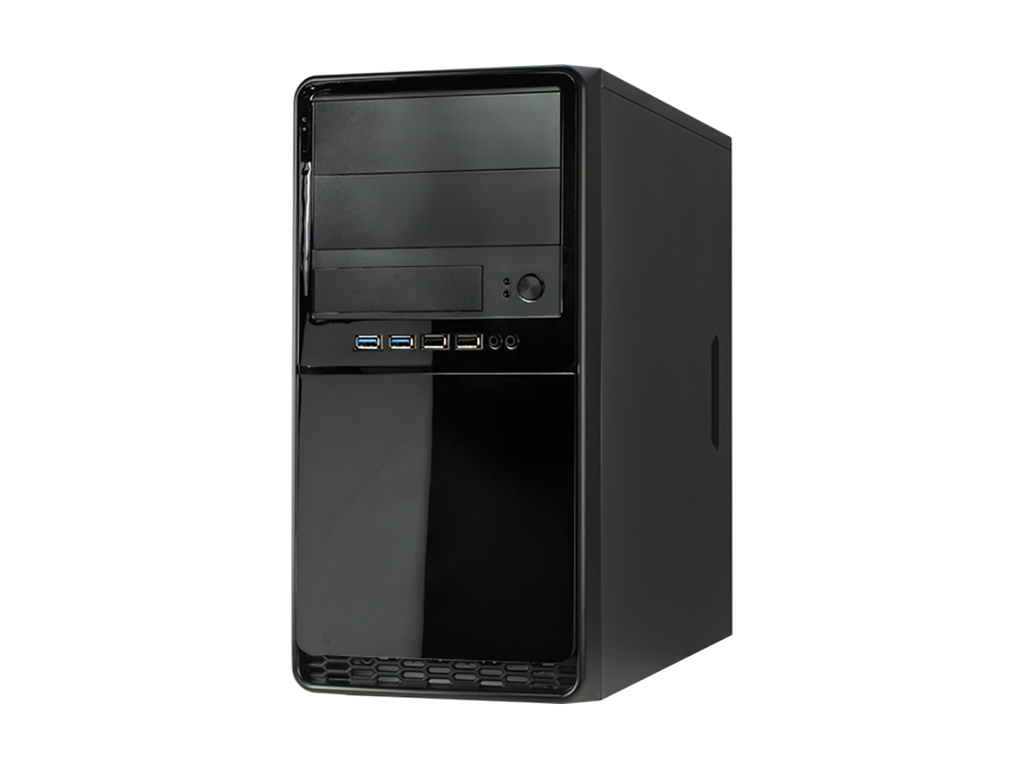

| Module | YY-3902 |
| Case dimension | 180mm W x 390mm D x 360mm H |
| Motherboard configuration | microATX, miniITX |
| Drive configuration | 2 - 5.25" ODD bay 1 - 3.5" FDD bay 2 - 3.5" HDD bay 1 - 2.5" HDD bay |
| Optional system cooling fans | 1*8~12cm Fan for rear-mounted 1*8~12cm for front-mounted |
| Expansion slots and ports | Standard PCI 4 slots |
| Front panel control | Power switch, reset switch, Power LED, HDD LED USB 2.0 ( USB 3.1 gen 1 Option ) /Audio / Multi-function Card reader (Optional) |
| Materials | Recyclable, RoHS compliant ABS, t0.5 SGCC |
| Emissions | Designed to meet FCC class |
| Color | Black |
| Power Supply | ATX12V 300W-550W |
| Options | Cooling fan, USB ( USB 3.0 Option ) /Audio, Multi-function Card reader |
| Packing /Shipping | 700pcs/20'container 1400pcs/40' container 1600pcs/40HQ container |
| Hypertec CIARA 專用 | |
|---|---|
| Module | YY-3902-C |
| Case dimension | 180mm W x 390mm D x 360mm H |
| Motherboard configuration | microATX, miniITX |
| Drive configuration | 2 - 5.25" ODD bay 1 - 3.5" FDD bay 2 - 3.5" HDD bay 1 - 2.5" HDD bay |
| Optional system cooling fans | 1*8~12cm Fan for rear-mounted 1*8~12cm for front-mounted |
| Expansion slots and ports | Standard PCI 4 slots |
| Front panel control | Power switch, reset switch, Power LED, HDD LED USB 2.0 ( USB 3.1 gen 1 Option ) /Audio / Multi-function Card reader (Optional) |
| Materials | Recyclable, RoHS compliant 35% PCR ABS, t0.5 SGCC |
| Emissions | Designed to meet FCC class |
| Color | Black |
| Power Supply | ATX12V 300W-550W |
| Options | Cooling fan, USB ( USB 3.0 Option ) /Audio, Multi-function Card reader |
| Packing /Shipping | 700pcs/20'container 1400pcs/40' container 1600pcs/40HQ container |
