產品特色與優勢

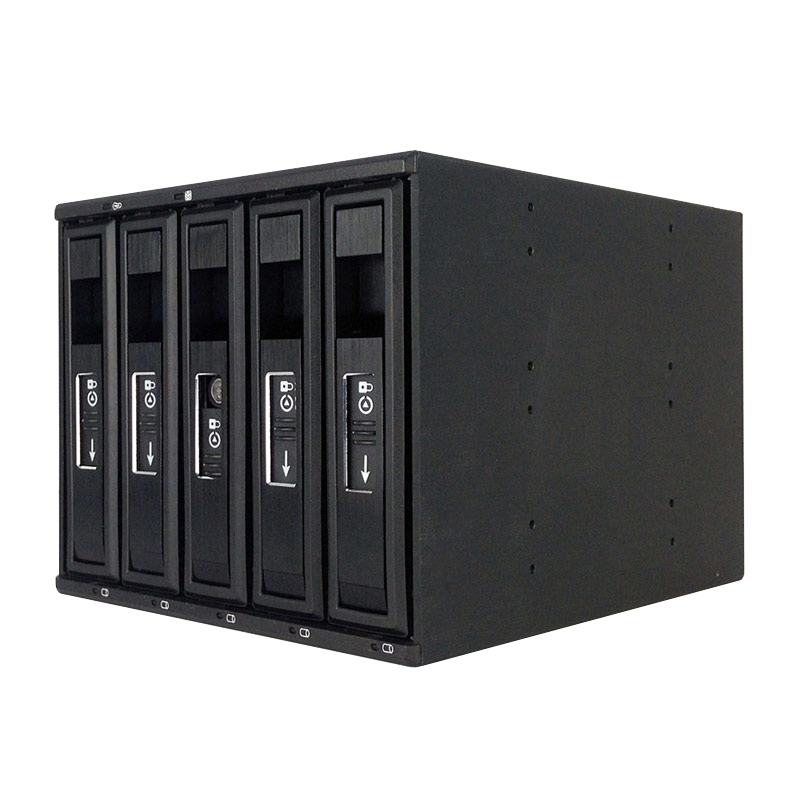

7507-1356 鋁合金結構硬碟背板模組，可安裝最多 5 顆 3.5 吋 SATA 或 SAS 硬碟，對應 3 組 5.25 吋裝置槽。專利彈簧導軌托盤設計，有效避免硬碟安裝時產生震動問題，搭配後置 80mm 散熱風扇，確保模組穩定運作於最佳狀態。
- 採用雙鎖設計，加強硬碟固定安全性，防止意外移除
- 鋁製托盤搭配螺絲固定設計，確保硬碟安全穩固
- 採用防震導軌設計，有效降低硬碟運作時的震動干擾
- 專利不鏽鋼滑軌設計，靜音連接托盤與機架
- 每個托盤皆設有 4 個彈性接觸點，有效限制上下方向的震動幅度
LED 指示燈 :
- Power on (HDD inside) : Green
- HDD access : Orange blinking
- Alarm : Green=normal, Red = Over heat
- Fan : Green=normal, Red = Fan Failure
- 1 x 8cm cooling fan to allow the unit stay cool, and with Fan Speed selection (High, Low)
- LED on/off Switch function
產品規格
| HDD Backplane Module | 7507-1356 |
|---|---|
| Certifications | CE、FCC、RoHS compliance |
| Color | Body ：Aluminum (Hairlines anodized black) Tray ：Aluminum / ABS (Black) |
| Material | Aluminum for optimized heat dissipation |
| HDD Type | Support 3.5” SATA I/II/III & SAS I, II 6Gps |
| Interfaces | 5 x SATA 7pin (Max. 6Gbps) 2 x 15pin SATA Power Fan Speed control (High / Low) HDD LED on/off Switch |
| Hot Swappable | Depend on System |
| FAN | 80 x 80 x 20 mm fan x 1 |
| Dimension WHD | 146 x 126 x 217 mm |
| Weight | 1.81 Kg |
| Packing Contents | 7507-1356 HDD Backplane Module (hard drives not included) Screws, Key x 2 |
