產品特色與優勢

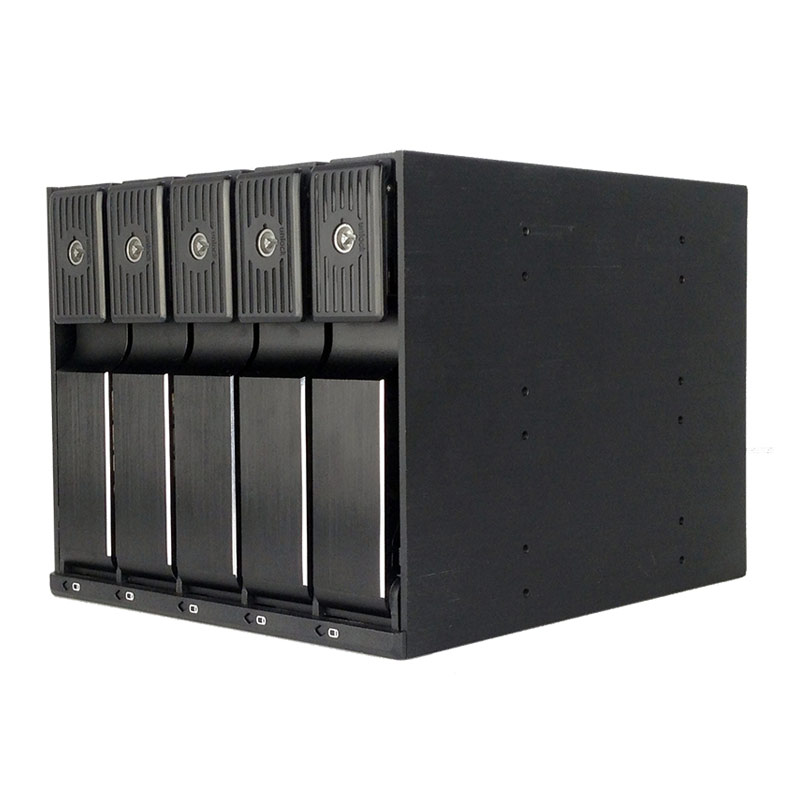

7507-2357 鋁合金結構硬碟背板模組，專為安裝最多 5 顆 3.5 吋 SATA 或 SAS 硬碟設計，可安置於 3 個 5.25 吋光碟機槽位中。無托盤設計使硬碟安裝更簡便，且搭載後置 80mm 散熱風扇，有效維持裝置在最佳運作狀態。7507-
- 輕鬆安裝硬碟，無需任何工具輔助
- 快速拆裝硬碟設計，節省系統維護時間
- 配備鑰匙鎖，防止硬碟誤拔或意外移除
LED 指示燈:
- Power on (HDD inside) : Green
- HDD access : Orange blinking
- Alarm : Green=normal, Red = Over heat
- Fan : Green=normal, Red = Fan Failure
產品規格
| HDD Backplane Module | 7507-2357 |
|---|---|
| Certifications | CE、FCC、RoHS compliance |
| Color | Body ：Aluminum (Hairlines anodized black) Tray ：Aluminum / ABS (Black) |
| Material | Aluminum for optimized heat dissipation |
| HDD Type | Support 3.5” SATA I/II/III & SAS I, II 6Gps |
| Interfaces | 5 x SATA 7pin (Max. 6Gbps) 2 x 15pin SATA Power Fan Speed control (High / Low) HDD LED on/off Switch |
| Hot Swappable | Depend on System |
| FAN | 80 x 80 x 20 mm fan x 1 |
| Dimension WHD | 146 x 126 x 198 mm |
| Weight | 1.35 Kg |
| Packing Contents | 7507-2357 HDD Backplane Module (hard drives not included) Screws, Key x 2 |
