產品特色
- 前置 USB 3.1 Gen 1 Type A（最高速率達 5 Gbps，可選配）
- USB 3.0 在 2015 年後被重新命名為 USB 3.1 Gen 1。
- 前置 USB 2.0 x 2 或可選配 USB 3.1 Gen 1 x 2。
產品亮點
- 將 FHS 進氣溫度規格從 38°C 放寬至 40°C。
- TAC2.0 指南規定通風孔需為 110mm x 150mm，且有效開孔率需達 60%。
- TAC 2.0 並不要求使用導風管或任何額外的系統風扇。
產品規格
| SPECIFICATIONS | |
|---|---|

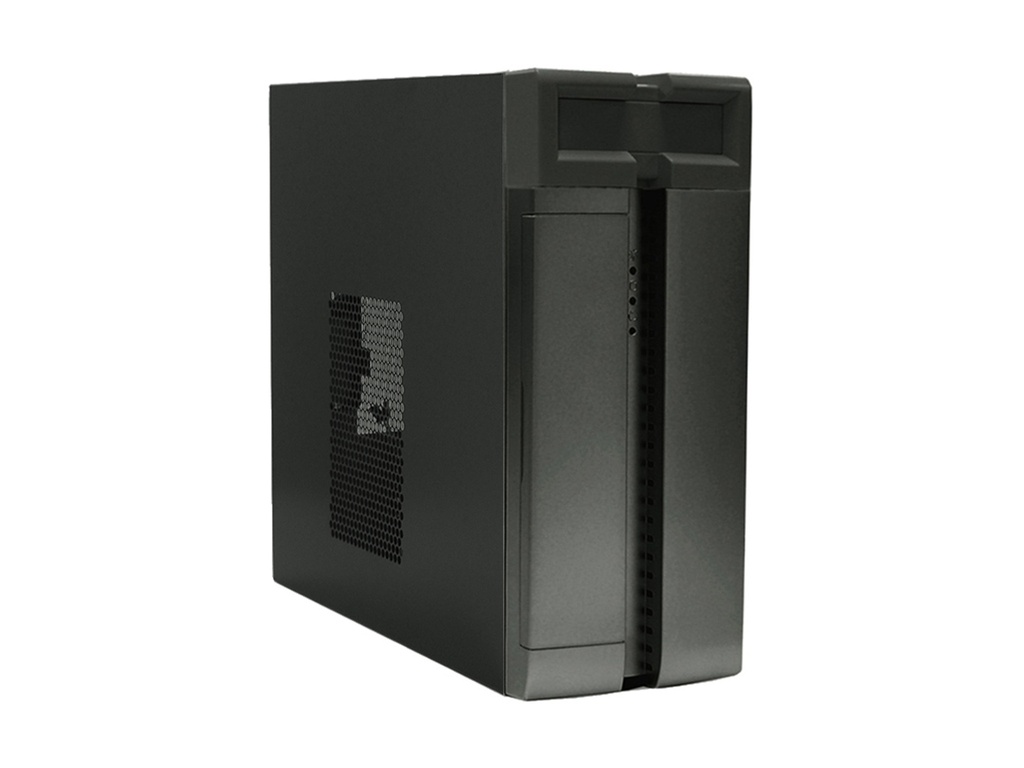

| Model | YY-A201 |
| Case dimension | 136mm W x 370mm D x 329mm H ( 5.3"W x 14.5"D x 12.9"H ) |
| Motherboard configuration | Micro ATX |
| Driver configuration | 1 - 5.25" ODD 1 - 3.5" FDD or Card Reader 1 - 3.5" HDD 1 - 3.5"(1") HDD Option |
| Optional system cooling fans | 2 x 6cm fans ( rear-mounted ) |
| Expansion slots and ports | Standard PCI 4 slots |
| Front panel control | Power switch, Power LED, HDD LED Dual USB (optional) |
| Materials | Recyclable materials Flame retardant plastic parts and front bezel(HB) Steel chassis Meets the requirements of RoHs & WEEE |
| Emissions | Designed to meet FCC class B-47 CFR part15/IEC/CISPR 22:1993 |
| Net Weight | 4.6kgs / 10.1lbs |
| Color | Cool Gray, Dark Gray |
| Power Supply | SFX 12 V3.0 200W~300W |
| Options | 2 x 6cm cooling fans (ball bearing) USB, Intrusion switch, Air Guide, Cleanable filter function |
| Packing /Shipping | 1.2cuft/carton 870pcs/20'container 1800pcs/40' container 2016pcs/40HQ container |
