Introduction

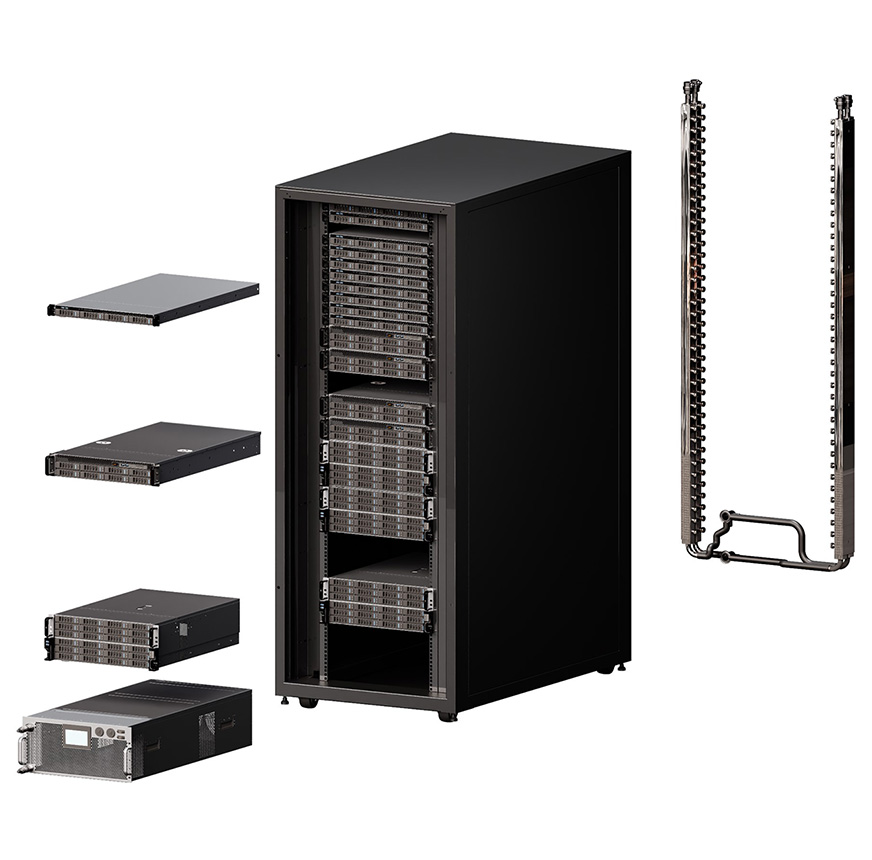

Advanced Rack-Level Liquid Cooling for Large-Scale Deployments
- For enterprise clients with large-scale server deployments, traditional air cooling often falls short in managing high-density computing environments. Our rack-level liquid cooling solution is designed to deliver efficient, high-performance thermal management, ensuring optimal operation for modern high-power AI and data-driven workloads.
Core Components: CDU, CDM, and Cooling Plates
- Our system consists of three key components:
- Cooling Distribution Unit (CDU) – The heart of the cooling system, responsible for circulating and regulating coolant flow. It efficiently cools heated coolant before redistributing it across the server rack.
- Coolant Distribution Manifold (CDM) – Directs coolant to individual cooling plates, ensuring precise thermal control for each server unit.
- Cooling Plates – Engineered for direct-to-core heat dissipation, effectively transferring excess heat away from high-performance computing nodes.
Scalable and Precise Cooling Management
- Unlike all-in-one cooling solutions, our modular system offers enhanced stability and precision, making it easier to scale and customize for different server configurations. The CDU supports multi-server cooling, efficiently managing up to 8kW workloads while maintaining consistent thermal performance.
Customizable Design for Seamless Integration
- We provide CDMs in various sizes, featuring quick-release couplers for easy connection to custom-configured cooling plates. Each component is tailored to client systems, ensuring seamless compatibility with their server infrastructure.
Get in Touch for Tailored Cooling Solutions
- Interested in upgrading your server facility with high-performance liquid cooling? Contact us today to explore custom configurations and optimized thermal solutions!
Cooling Distribution Unit
Cooling Distribution Unit
- Our liquid-to-air Cooling Distribution Unit (CDU) is the core of the rack-level water cooling system, delivering 8KW of cooling capacity to support high-heat-density server racks.
- Engineered for efficient heat exchange, the CDU ensures stable thermal performance, allowing servers to operate reliably under intense workloads.
- Designed for scalability and precision, it provides superior cooling for multi-server configurations, making it an essential component in high-performance data centers and AI processing environments.
- For tailored cooling solutions, contact us to explore customization options.
| Item | Spec |
|---|---|
| Cooling capacity | 8KW |
| Primary side | |
| Primary Coolant Type | Air |
| Air Flow | 530 CFM |
| Inlet/Outlet temperature | 25℃/47℃ |
| Secondary side | |
| Secondary Coolant Type | 25% Ethylene Glycol |
| Liquid Flow | 16 LPM |
| Inlet/Outlet temperature | 54.8℃/40℃ |
| Initial Pressure Difference | ≥1 bar |
| Max Power Consumption | 1245W |
| Pump Configuration | Double Inverter Water Pump |
| Power Supply | 220V, 50hz |
| Size | 950mmx448mmx170mm |
Coolant Distribution Manifolds
We offer a range of Coolant Distribution Manifolds (CDM) designed to accommodate various rack and server configurations. Each CDM is available in different sizes and features quick-release couplers for seamless integration with diverse cooling setups. For customized solutions tailored to your infrastructure, contact us to explore optimization options.
SR316-SQ/P05
| Type | Square tube |
|---|---|
| Material | SUS316 |
| Interface | direction Bottom |
| Interface
specification E | G3/4 internal thread |
| Vent valve P | 3/8 |
| Drain valve X | 3/8 |
| Connection Type | Stepless ear clamp |
| UQD | UQD04/HND06 |
SR316-SQ/P07
| Type | Square tube |
|---|---|
| Material | SUS316 |
| Interface | direction Bottom |
| Interface
specification E | G3/4 internal thread |
| Vent valve P | 3/8 |
| Drain valve X | 3/8 |
| Connection Type | Stepless ear clamp |
| UQD | UQD04/HND06 |
SR316-SQ/P11
| Type | Square tube |
|---|---|
| Material | SUS316 |
| Interface | direction Bottom |
| Interface
specification E | G3/4 internal thread |
| Vent valve P | 3/8 |
| Drain valve X | 3/8 |
| Connection Type | Stepless ear clamp |
| UQD | UQD04/HND06 |
SR316-RO/P12
| Type | Round tube |
|---|---|
| Material | SUS316 |
| Interface | direction Bottom |
| Interface
specification E | G3/4 internal thread |
| Vent valve P | 3/8 |
| Drain valve X | 3/8 |
| Connection Type | Stepless ear clamp |
| UQD | UQD04/HND06 |
CDM Accessories
Barb Fittings
- Material : SUS316
Barb Fittings
- Material : SUS316
Hoop
- Material : SUS316
Round tube
- Material : SUS316
Round tube
- Material : SUS316
Round tube
- Material : SUS316
Cooling Plate
If you need customized cooling plates but don’t have a pre-existing source, we can design and manufacture tailored solutions to fit your system’s requirements. Contact us for more details on custom configurations and compatibility options.
AMD Platform
