產品特色
- Dual Socket P+ (LGA 4189)
3rd Gen Intel® Xeon® Scalable processors - 16 DDR4 slots, supports 3200MHz DDR4 memory
- Up to 9 Expansion slots, support PCIe 4.0 x16
- Supports up to 8 Triple-slot Triple-Fan PCIe GPUs
- Support SAS/SATA/NVMe drives, support hot-swap
- 1 OCP 3.0 Slots
- AST2600， support IPMI 2.0
產品亮點

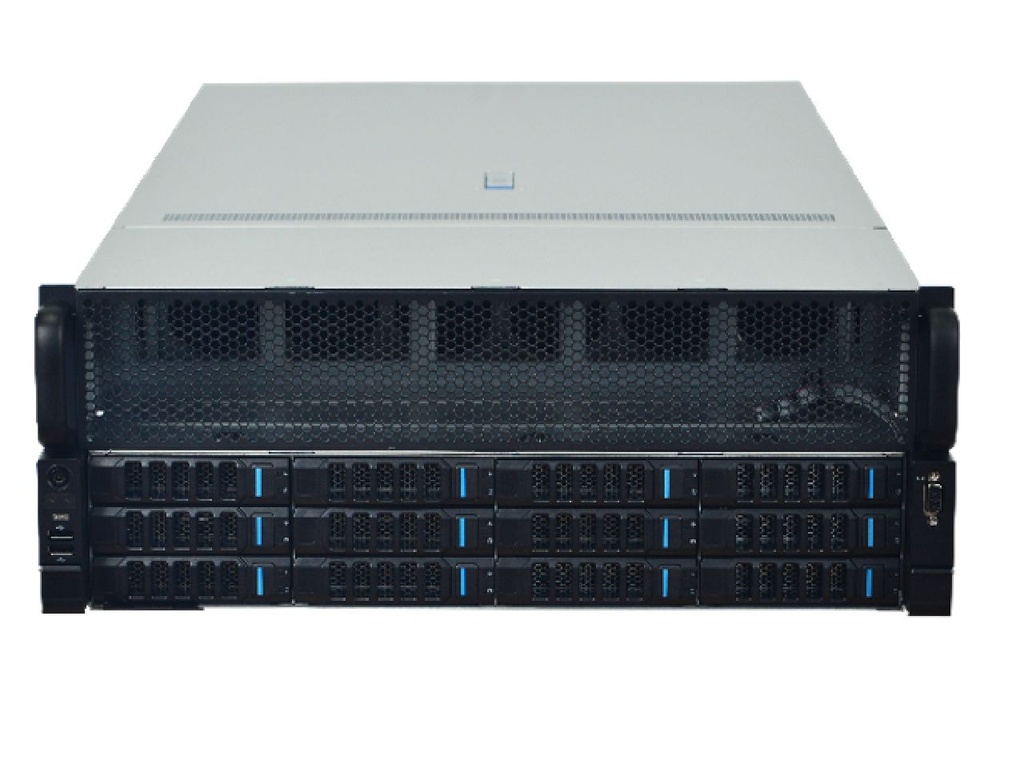

前視圖
➊ Power Button
➋ UID Button
➌ 2x USB2.0 Type A
➍ VGA
後視圖
➊ PSU
➋ UART（Type C port）
➌ 2x USB3.0 Type A
➍ RJ45（NC-SI）
➎ UID
➏ VGA
➐ PSU
主機板
➊ 6x MCIO x8
➋ 3th Gen Intel® Xeon® Ice Lake SP
➌ 18x DIMM Slots DDR4-3200MHz
➍ 2x Slim SAS (to OCP NIC 3.0)
➎ DC-SCM
➏ PSU
➐ 2x M.2 NVMe
➑ 6x MCIO 8i
➒ 4x MCIO 8i
頂視圖
➊ Storage Module Supports 12LFF or 25SFF
➋ 2x PCIeG4 x16 Slots (2x Triple-slot GPU)
➌ Intel® Ice Lake
➍ Intel® C621A
➎ 7 PCIeG4 x16 Slots (6x Triple-slot GPU)
➏ DC-SCM AST2600 BMC
➐ 3+1 CRPS
➑ 6x System Fans Module 6056
➒ 4x System Fans 8038
產品規格
| System Model | B5612-G3 |
|---|---|
| Processor | Supports 3rd Gen. Intel® Xeon® Scalable processors (Ice Lake) Supports up to 250W TDP CPUs |
| Chipset | Intel® C621A chipset |
| PCIe Expansion | Front：2 PCIe 4.0 x16 FHFL triple-width slots
Rear：7 PCIe 4.0 x16 FHFL slots（6 Triple-width + 1 Single-width) |
| GPU Card | Up to 8 Triple-slot Triple-Fan PCIe GPUs |
| Memory | 16 DDR4 slots, supports 2666/2933/3200MHz DDR4 memory |
| Storage | Front hot-swap: Support 12 hot-swap 3.5/2.5" SAS/SATA drives Internal M.2: 2 x M.2 (Up to 2280) SSD, support PCIe 3.0 x4 |
| Raid | Support to VROC，RAID 0, 1, 5, 6, 10, 50, and 60，Support Cache protection |
| Network | 1x 1GbE (RJ45) onboard, Support NCSI function
1x OCP3.0 slot, support PCIe 3.0 x4 |
| IO Ports | Front: 2x USB3.0, 1x VGA Rear: 2x USB3.0, 1x VGA，1x 1GbE (RJ45) ,1x USB TypeC（UART） |
| Fan | Standard 12 hot-swap N+1 redundant fans, supporting 6038/6056 specifications |
| Power Supply | 3+1 or 2+2 redundancy (2000W/2200W/2600W/3200W) |
| BMC | DC-SCM 2.0 module, Based Aspeed AST2600，support IPMI2.0/Redfish |
| Server Size | 448 x 220 x 917.5mm (WxHxD) |
| Operating Environment |
Operation Temperature.: 10° C ~ 35° C ,Non-Operation Temperature:-40° C~70° C
In/Non-operating Humidity: 20%~90%,(non-condensing) |
