產品特色
- Dual Socket E (LGA-4677)
Supports 4th /5th Gen Intel® Xeon® Scalable processors - 32 DDR5 slots, supports 4800MHz DDR5 memory
- Up to 6 Expansion slots, support PCIe 5.0 x16
- Support SAS/SATA/NVMe drives, support hot-swap
- 1 OCP 3.0 Slots
- AST2600, support IPMI 2.0
- Based OCSP2.0, Decoupling of system modules
產品亮點

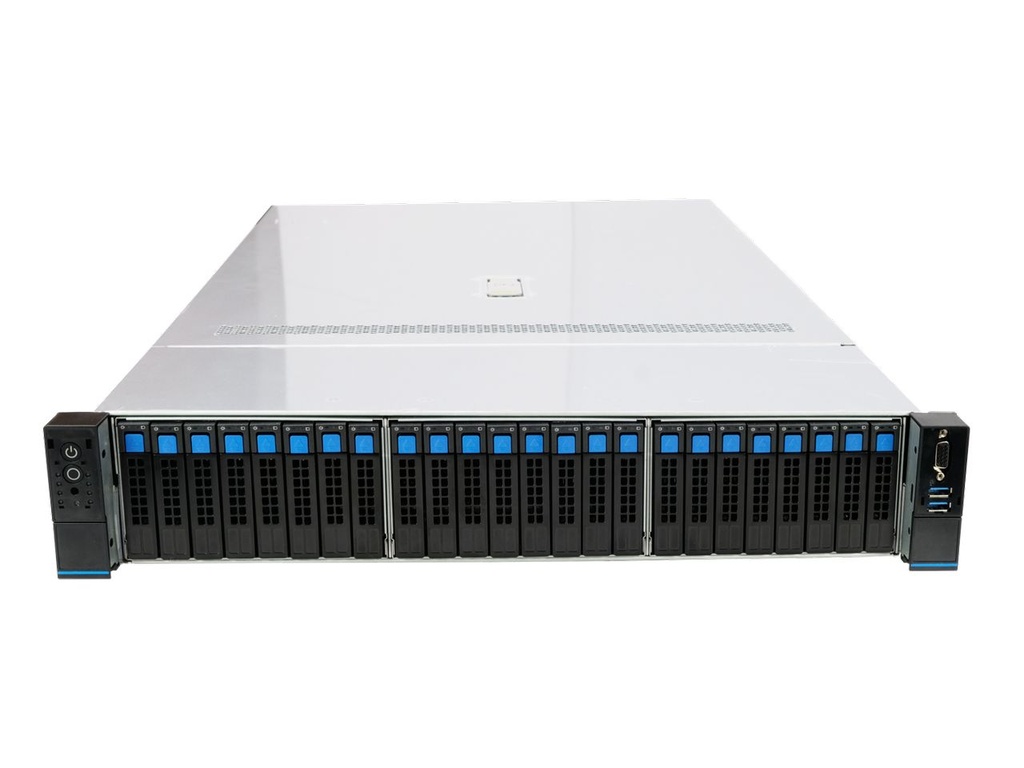

前視圖
後視圖
頂視圖
Internal Layout
產品規格
| Form Factor | 2U 24bay Rack Server |
|---|---|
| System Model | B2624-G4 |
| Processor | Support 2x Intel Sapphire/Emerald Rapids CPU,64c Supports up to 350W TDP CPUs |
| Memory | 32 x DDR5 slots, UP to 2TB 4800MT/s, support RDIMM, LRDIMM |
| BMC | Aspeed AST2600 Chip, 2GB DDR4 SDRAM, integrate an independent 1000Mbps network interface dedicated to IPMI management. |
| Network | Support SFF OCP 3.0 network cards (supporting NCSI) and PCIe cards |
| IO Ports | Front: VGA, 2x USB 3.0, UID LED/BTN , Health LED, PWR LED/BTN
Rear: VGA, 2x USB 3.0, UID LED/BTN, Mgmt RJ45 |
| PCIe Expansion | Support 6x Gen5 slots（x16 slots）, 1x OCP 3.0 |
| Storage | Front: 24 x 2.5‘ NVMe SSD
Rear: 4 x 2.5’ SATA/NVMe SSD Embedded: 2 x M.2 (SATA or 2x PCIe); |
| Power Supply | 2 x 1300W(100-220VAC & 240V HVDC) hot –swap power supply，support N+1 redundancy， |
| Fan | 6 Hot-Swap FANs，support N+1 redundancy |
| Server Size | 3.45" (H) x 17.6" (W) x 32.52" (D)(87mm x 447mm x 826mm) |
