產品特色
- 雙插槽 E (LGA-4677)
支援第 5 代／第 4 代 Intel® Xeon® 可擴充處理器 - 支援 32 根 DIMM，最高可達 8TB 3DS ECC DDR5-5600：RDIMM
- 支援 SAS/SATA/NVMe 硬碟，並支援熱插拔功能
- 最多支援 10 個擴充槽，支援 PCIe 5.0 x16
- 支援 2 個 OCP 3.0 插槽
- AST2600，支援 IPMI 2.0
- 基於 OCSP2.0，系統模組解耦設計
產品亮點

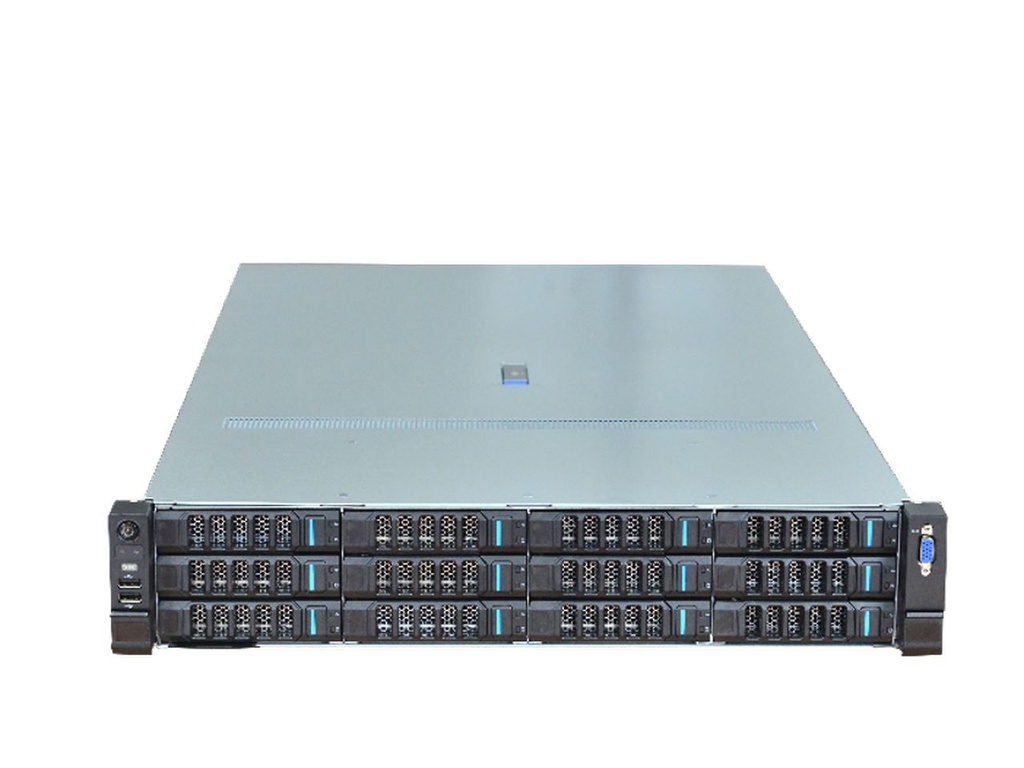

前視圖
➊ 電源按鈕
➋ UID 按鈕
➌ 2組 USB 2.0 Type A 埠
➍ VGA
後視圖
➊ OCP3.0-L
➋ UART（Type C port）
➌ 2x USB3.0 Type A
➍ RJ45（NC-SI）
➎ UID
➏ VGA
➐ OCP3.0-R
主機板
➊ Intel C741 PCH
➋ 5th/4th Gen Intel® Xeon® Scalable processors
➌ 32x DIMM Slots DDR5-5600MHz
➍ OCP-R
➎ DC-SCM
➏ OCP-L
➐ 2x MCIO Cable Riser
➑ 6x MCIO 8i
➒ 8x MCIO 8i
頂視圖
➊ Storage Module Supports 12LFF or 25SFF
➋ Motherboard
➌ PSU
➍ Storage Module Supports 4SFF
➎ IO Extension Module 6x PCIeG5 x16 Slots
➏ Fan Module 6056
➐ Chassis
產品規格
| System Model | B2612-G4 |
|---|---|
| Processor | Supports 4th/5th Generation Intel® Xeon® Scalable Processors Supports up to 350W TDP CPUs |
| Chipset | Intel® C741 chipset |
| Memory | 32 DDR5 memory slots, supporting DDR5 RDIMM 4400/4800/5600MHz memory |
| Storage | Front hot-swap: Support 12 hot-swap 3.5/2.5 SAS/SATA hard drives
Rear hot-swap: Support 2 hot-swap 3.5/2.5 SAS/SATA hard drives 4 hot-swap 2.5 SAS/SATA/NVMe Internal M.2: 2 x M.2 (Up to 2280) SSD |
| Raid | Support to VROC，RAID 0, 1, 5, 6, 10, 50, and 60，Support Cache SuperCapacitor |
| PCIe Expansion | UP to 10 x PCIe 5.0 slots (Offer interface expansions of SFF-TA-1033 and SFF-TA-1016 )；
OCP: 2 OCP 3.0 Slots |
| GPU Card | Up to 3 double-width or 10 single-width GPUs |
| Network | 1x 1GbE (RJ45) onboard, Support NCSI function |
| IO Ports | Front: 2x USB2.0, 1x VGA(option)
Rear: 2x USB3.0, 1x VGA，1x 1GbE (RJ45) ,1x USB TypeC（UART） Internal: 1 x TPM header |
| Fan | Standard 4 hot-swap N+1 redundant fans, supporting 6038/6056 specifications |
| Power Supply | Supports AC 220V 800W, 1300W, 1600W, 2000W, 2200W, 2600W redundant power supplies |
| BMC | DC-SCM 2.0 module, Based Aspeed AST2600，support IPMI2.0/Redfish |
| Server Size | 3.45 (H) x 17.6 (W) x 31.5 (D)(87mm x 447.4mm x 799mm) |
| Operating Environment |
Operating Temp.: 10° C ~ 35° C (50° F~ 95° F)
In/Non-operating Humidity: 90%, non-condensing at 35° C |
