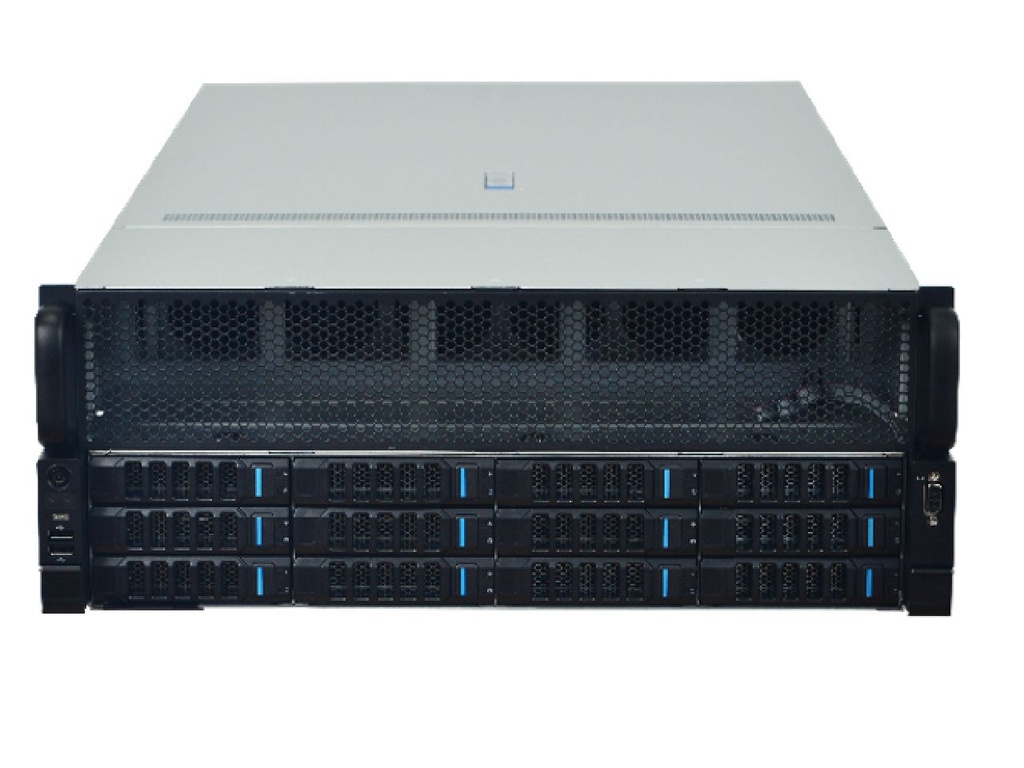

4U 12bay Barebone Server

B4612-G6
https://www.yycase.com/web/image/product.template/161/image_1920?unique=4b484f3

4U10G Intel AI Server powered by Intel® Xeon® 6 processors

Overview

Designed as a quick and advanced solution for AI deployment, the B4612-G6 4U barebone server supports 6th Gen Intel® Xeon® E-core processors. Built on a dependable and robust platform, it features a high-speed PCIe expansion card capable of supporting up to 10 dual-width GPU cards, delivering exceptional efficiency for AI learning. Its high-speed 12-bay frontal design offers flexible options for data storage, while its refined I/O configuration enhances operational productivity. This server provides a solid foundation for constructing a stable and high-performance AI environment.

    This combination does not exist.

    FeaturesSpecial DesignSpecifications

    Features

    • Dual Socket E2 (LGA-4710)
      Supports Intel® Xeon® 6700E-series processors
    • 32 DIMMs up to 8TB 3DS ECC DDR5-6400: RDIMM
    • Up to 12 Expansion slots, support PCIe 5.0 x16
    • Supports up to 10 600W dual-width GPUs
    • Support SAS/SATA/NVMe drives, support hot-swap
    • 2 OCP 3.0 Slots
    • AST2600, support IPMI 2.0


    Special Design

    Front view

    ➊ Power Button
    ➋ UID Button
    ➌ 2x USB2.0 Type A
    ➍ VGA

    Rear view

    ➊ PSU
    ➋ UART（Type C port）
    ➌ 2x USB3.0 Type A
    ➍ RJ45（NC-SI）
    ➎ UID
    ➏ VGA
    ➐ PSU

    Motherboard

    ➊ Intel® 6th Gen Xeon® SP
    ➋ 2x M.2 NVMe
    ➌ DC-SCM
    ➍ PSU
    ➎ 12x MCIO 8i
    ➏ 32x DIMM Slots for DDR5 memory
    ➐ 8x MCIO 8i

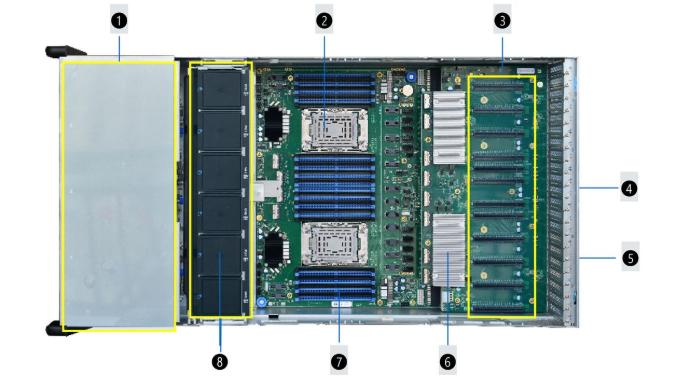

    Top view

    ➊ Storage Module Supports 12LFF or 25SFF
    ➋ Support Intel 6th XEON SP
    ➌ 12 PCIeG4 x16 FHFL Slots, Up to 10 double-width GPU(s)
    ➍ DC-SCM AST2600 BMC
    ➎ 3+1 CRPS
    ➏ 32 DDR5 RDIMM Slots
    ➐ 12x System Fans Module 6056

    Specifications

    System ModelB4612-G6
    Processor Intel® Xeon® 6700/6500 series processors(SRF-SP/GNR-SP)
    Up to 144 Cores, supports up to 350W TDP CPUs
    ChipsetSystem on Chip
    PCIe Expansion Switch：2/1x Broadcom PEX89104, 104-lanes PCIeG5 Switch or direct link to CPU
    Input：10/8 MCIO (PCIe5.0 x8)
    Output：12 FHHL PCIe 5.0 x16 slots
    GPU Card Up to 10 double-width or 12 single-width GPUs
    Memory 32 DDR5 memory slots, supporting DDR5 RDIMM 4400/4800/5600/6400MHz memory
    Storage Front hot-swap: Support 12 hot-swap 3.5/2.5 SAS/SATA hard drives
    Internal M.2: 2 x M.2 (Up to 2280) SSD
    Raid Support to VROC，RAID 0, 1, 5, 6, 10, 50, and 60，Support Cache SuperCapacitor
    Network 1x 1GbE (RJ45) onboard, Support NCSI function
    1x OCP3.0 slot
    IO Ports Front: 2x USB2.0, 1x VGA(option)
    Rear: 2x USB3.0, 1x VGA，1x 1GbE (RJ45) ,1x USB TypeC（UART）
    Internal: 1 x TPM header
    Fan Standard 12 hot-swap N+1 redundant fans, supporting 6038/6056 specifications
    Power Supply 3+1 or 2+2 redundancy (2000W/2200W/2600W/3200W)
    BMC DC-SCM 2.0 module, Based Aspeed AST2600，support IPMI2.0/Redfish
    Server Size 175mm(H) x 437mm(W) x 842mm(D)
    Operating
    Environment    		 Operation Temperature.: 10° C ~ 35° C ,Non-Operation Temperature:-40° C~70° C
    In/Non-operating Humidity: 20~90% (non-condensing)
