Tower Server Chassis

YY-WA01 is Design for Workstation Case
https://www.yycase.com/web/image/product.template/62/image_1920?unique=0dd2a2c

The WA01 is a new versatile and powerful workstation computer case. It can be configured as a rackmount case or a tower server case, depending on the user's requirements and preferences.
It features an isolated PSU space, a radiator area, and a capacity for four long graphic cards. It also provides a removable top cover for slide rail installation and an adaptor bracket for redundant power supply. An optional rear fan addon is ready for enhanced cooling ability. The WA01 is compatible with server grade motherboards and watercooling systems, ensuring optimal performance and reliability.

    This combination does not exist.

    OverviewFeaturesSpecial DesignSpecifications

    Overview

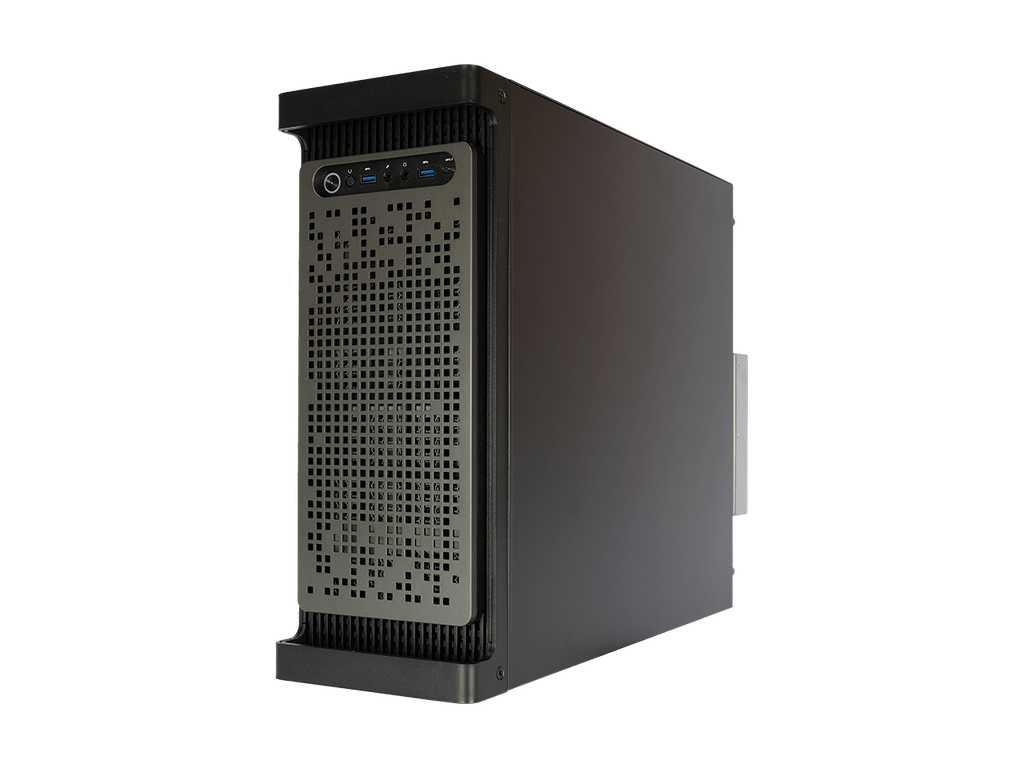

    Introducing the WA01 Workstation Computer Case

    Are you looking for a versatile and powerful workstation computer case that fits your needs? Introducing the WA01, the latest product from YYcase, the leading server case manufacturer. The WA01 can be used as either a ackmount case or a ower server case, depending on your needs and preferences.

    Unique Design for Optimal Performance

    The WA01 features a unique design with an isolated PSU space and a dedicated area for a radiator, making it ideal for water cooling. It supports server-grade motherboards like EEB or EATX and can accommodate up to 4 long graphic cards. You can also choose the rear fan addon to enhance its cooling capability.

    Easy Conversion and Enhanced Usability

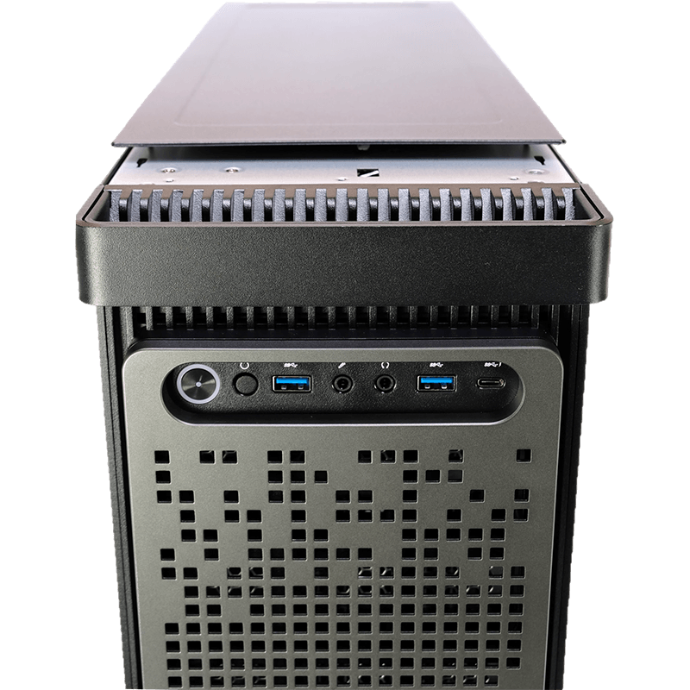

    Switching to rackmount mode is simple: just remove the top cover and attach the slide rail. The integrated handle on the front panel allows you to pull the case out easily. For additional power, you can use the adaptor bracket for a redundant power supply.

    Ultimate Flexibility, Performance, and Reliability

    The WA01 is the ultimate workstation computer case, offering flexibility, performance, and reliability.

    Features

    • Enhanced water cooling compatibility with preserved radiator.
    • Supports up to 4 long graphic cards.
    • Can be used as rackmount or tower.
    • Isolated PSU space for better cooling effect.
    • Optional rear fan addon to enhance cooling ability.
    • Supports EEB or EATX server grade motherboard.
    • Detachable top cover for slide rail installation.
    • Integrated handle on the front panel.
    • Adaptor bracket for redundant power supply.

    Special Design

    Water Cooling compatible

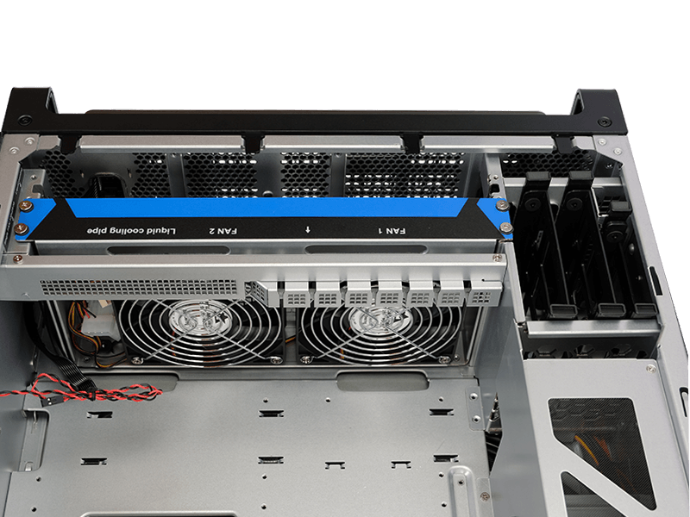

    Water Cooling has been a standard for professional workstation system. The preserved area for radiator allows for easy installation and maintenance of water cooling systems. Radiators up to 240mm is supported in the WA01 case.

    Optimized Cooling Design

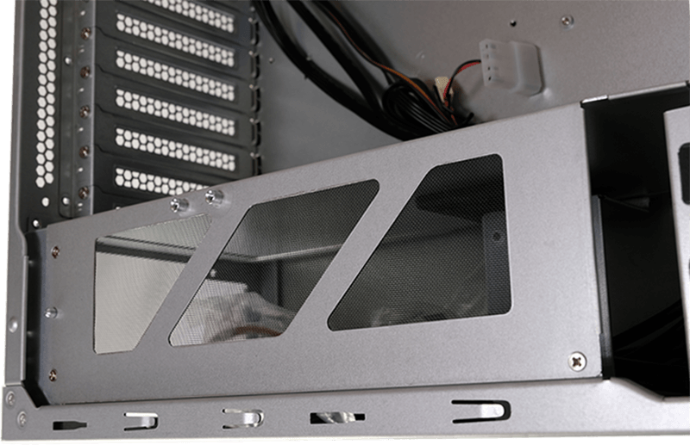

    The isolated power supply area separates the PSU from the rest of the components. This helps to reduce the heat and noise generated by the PSU, and to improve the airflow and ventilation inside the case. The WA01 is designed to keep your workstation cool and quiet.

    Powerful Cooling Kits

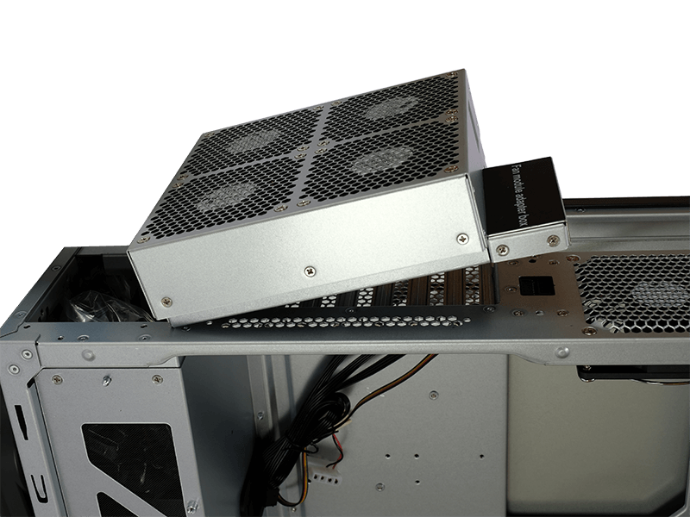

    The optional rear fan addon adds 80mm fans x 4 to the back of the case. It enhances the cooling ability of the WA01 by increasing the exhaust of hot air and creating a positive pressure inside the case. The WA01 is designed to optimize the cooling efficiency of your workstation.

    Flexible Configuration

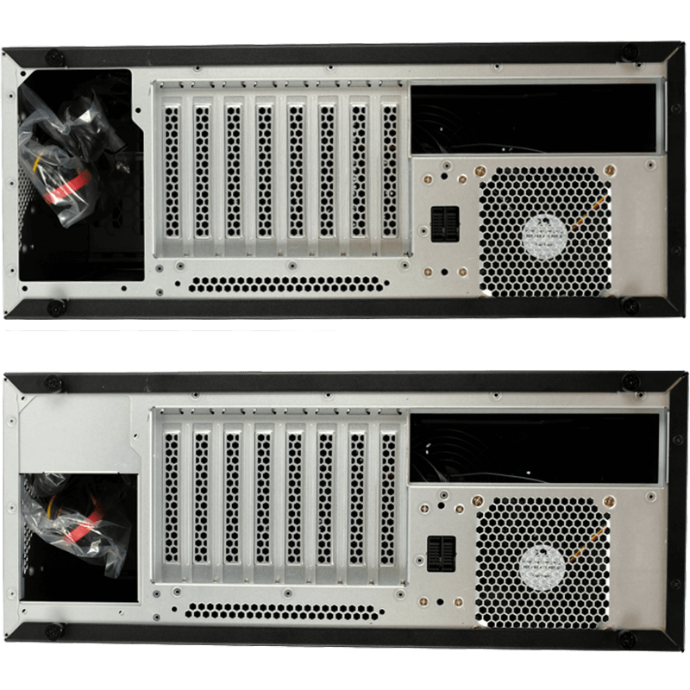

    The WA01 comes with a changeable power supply bracket, which allows you to use different types of power supplies for your workstation. The WA01 can support both standard ATX power supplies and redundant power supplies, depending on your needs and preferences. The changeable power supply bracket can be easily installed and removed with screws. The WA01 is designed to give you more flexibility and compatibility on the hardware configuration.

    Hidden Tricks

    To achieve dual orientation use, the WA01 has a detachable top cover, which can be removed when you want to use the case as a rackmount case. There’re series mounting holes for slide rail installation hidden by the detachable top cover, which makes it easy to mount the case on a rack and slide it in and out. The WA01 is designed to make your rackmount installation simple and convenient.

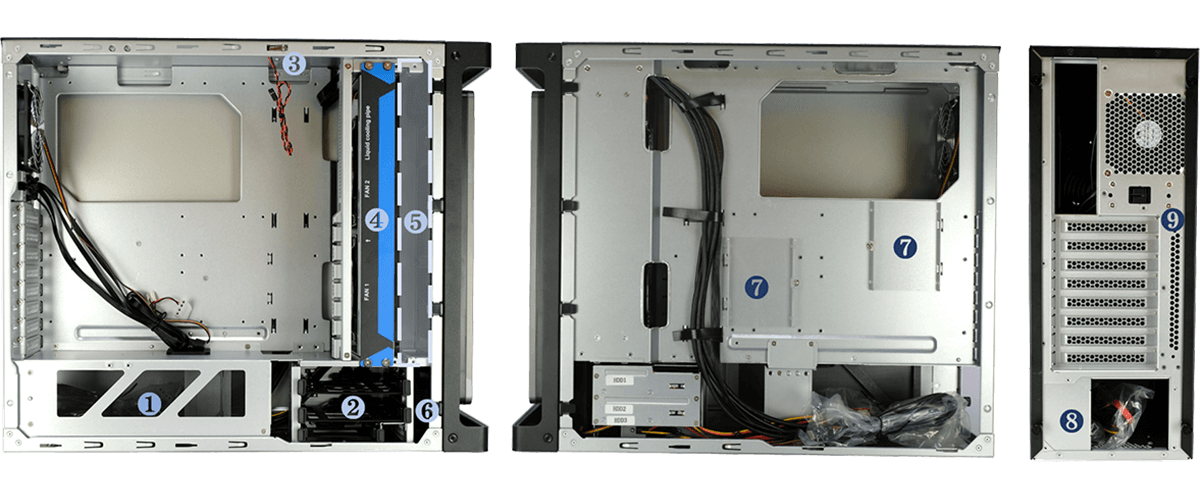

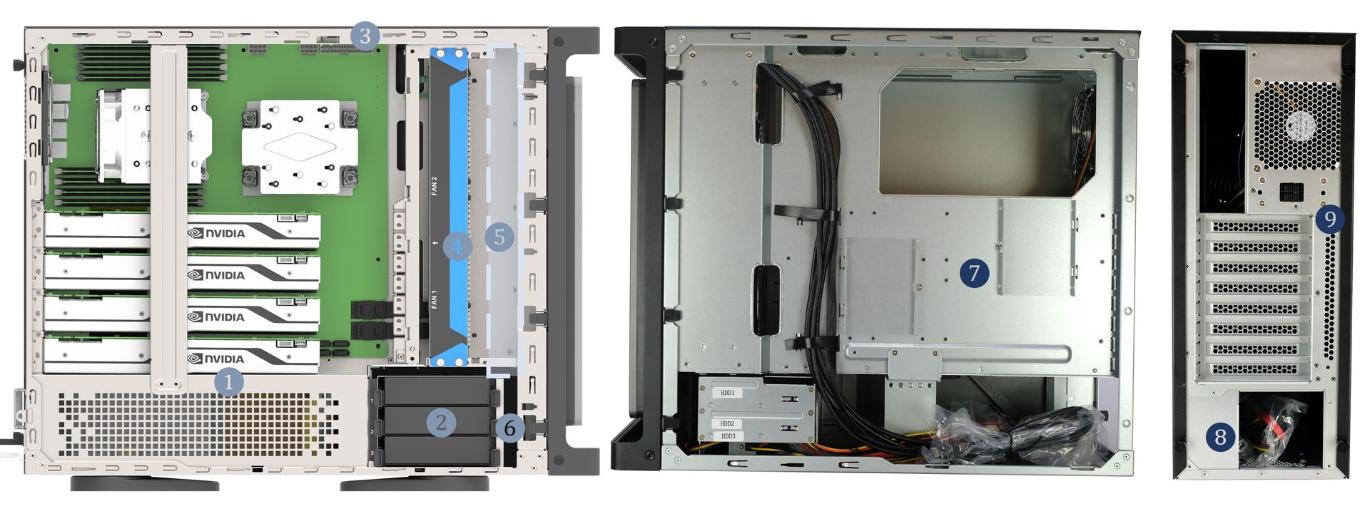

    1. Isolated PSU space
    2. 3.5" Drive mounting site
    3. Intrusion switch
    4. 120mm fan x 2
    5. Preserved Radiator Space
    6. 90mm fan x 1
    7. Preserved 2.5" Drive mounting site
    8. Optional Redundant bracket
    9. POGO connector for fan addon

    Specifications

    Model YY-WA01
    Case Type Full Tower/ Rackmount
    Dimension (mm) 435(H) x 175(W) 500(D)
    Side Panel Steel
    Color Black
    Material SGCC 1.2mm
    Drive Bays 2 x 3.5" + 1 x 2.5" +2 x 2.5"(optional)
    Expansion slots 8 Slots
    Motherboard SSI EEB / SSI CEB / ATX / micro ATX
    Fan Support Front : 90mm x 1
    Mid : 120mm x 2
    Rear : 90mm x 1 / 80mm x 4(optional addon)
    Radiator Support Mid : 240mm x 1
    Clearance CPU Height : 135mm/145mm(without card holder)
    VGA Length : 300mm
    (compatible with 4070 or Professional Graphics Cards)
    ( PSU Length : 180mm
    PSU ATX/Redundant
    Packing MOQ 100 pcs, Carton size: 68*57*29 cm
