Innovated Rugged Solution

YY-RG

YY-RG Series is the specialized iPad bumper case, aiming to provide robust, high endurance protection. As an IP68 iPad waterproof case, it can efficiently prevent your device from the invasion of any liquid and dust. It is the must have kit for outdoor lovers.

Smart Accessories - Designed for Outdoors
YY-RGP1 : For iPad2 / 3 rd / 4 th generation
YY-RGP2 : For iPad Air

Feature

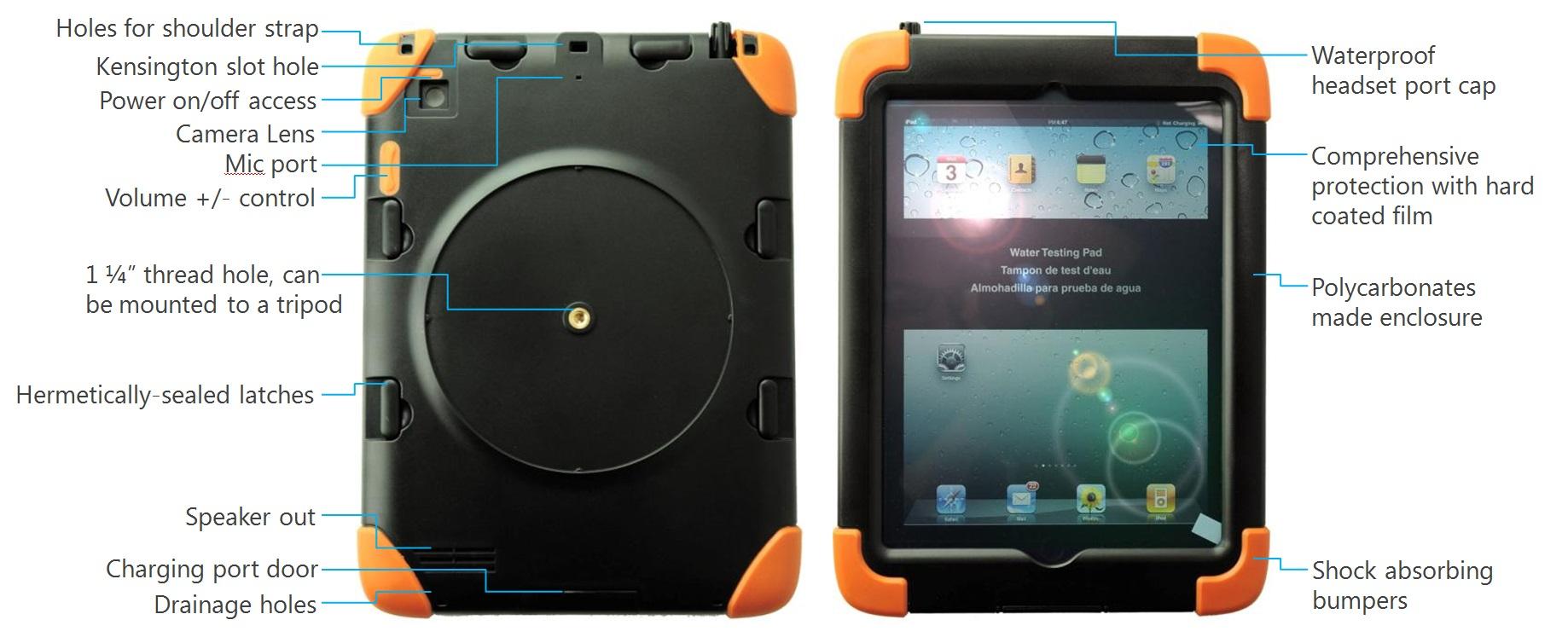

Comprehensive protection with hard coated film and full access ports
Polycarbonates made enclosure with tripod mounting and security lock options
Hermetically-sealed internal compartments with IP68 durability
Shock absorbing bumpers and lining, tested and passed MIL-STD-810G-516.6
Material : Polycarbonate / TPU / Silicon
Dimension : 286 x 213 x 31 mm (11.3” x 8.4” x 1.2”)
Weight : 600g (21oz)
Quick User Guide
Water Test

Special Design

Technical Specs

Size : 8.4"x11.3"x1.2" (21.3x28.6x3.1cm)
Net Weight : 21oz / 600g
Materials : PC / TPU / Silicon
Color : Black with colorful bumpers
Temperature range YY-RG Case alone : -4°F (-20°C) to 122°F (+50°C)
iPad Operating : 32°F (0°C) to 95°F (35°C)

Limited Warranty

WHAT IS COVERED? this product will be free from defects in workmanship and materials under normal use for a period of one year from the original purchase date. WHAT IS NOT COVERED? ‧ Normal wear and tear of Product use ‧ Misuse, lack of care, mishandling, accident, abuse or other abnormal use ‧ Use of the Product other than for its intended purpose ‧ Damage caused by improper or unauthorized repair or maintenance ‧ Product that has been modified or altered ‧ The product has passed MIL-STD-810G 516.6 and IP68, but it is not designed for diving purpose. The extreme usage over than the mentioned test method is not its intended purpose.

Test Limits

MIL-STD-810, Environmental Engineering Considerations and Laboratory Tests is an United States Military Standard that emphasizes tailoring an equipment's environmental design and test limits to the conditions that it will experience throughout its service life, and establishing chamber test methods that replicate the effects of environments on the equipment rather than imitating the environments themselves. The current document revision (as of 2012) is MIL-STD-810G.Test Method 516.6 : total 26 drops from 4 feet (122cm) height to 2" plywood.

IP68, International Protection Rating IEC60529 Edition 2.1 : 2001 which classifies and rates the degree of protection provided against the intrusion of solid objects, dust, accidental contact, and water in mechanical casings and with electrical enclosures. The standard aims to provide users more detailed information than vague marketing terms such as waterproof. Test method of water proof test: locate the enclosure 1M below the surface of the water in duration of 1 hour. Test method of dust test : locate the enclosure in 1M3 chamber with maximum depression of -20mbar / 2Kg Talcum powder in duration of 8 hours.
