Tower Server Chassis

YY-R468 is Design for High Performance Application
https://www.yycase.com/web/image/product.template/63/image_1920?unique=7e21c9e

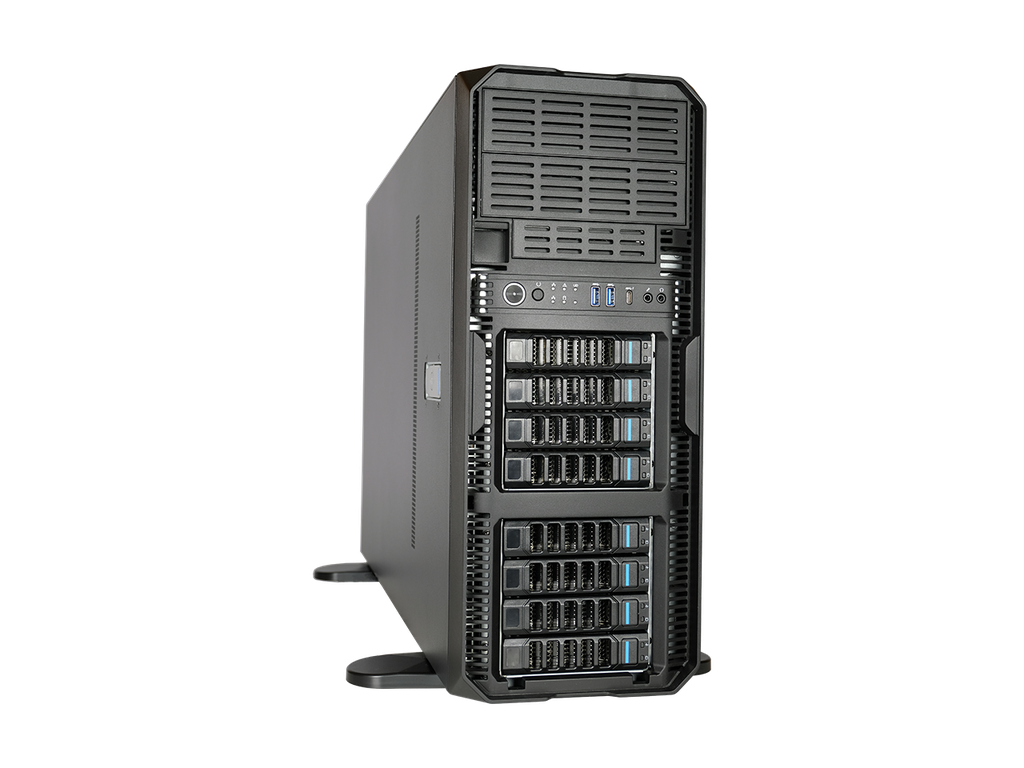

The R468 is a versatile and high-performance 4U IPC case. It supports 360mm water cooling radiators, an 8-bay hotswap for 3.5"/2.5" 12Gb SATA/SAS drives, and adaptive PSU bracket options. Compatible with mainstream server motherboards and high-performance GPU cards like the RTX4090, it’s built for demanding workloads. The R468 also features a unique anti-theft front bezel and ample space for cable routing, setting a new standard for industrial PC cases.

    This combination does not exist.

    Overview

    Introducing the R468 Server Case

    The R468 is our latest innovation in 4U IPC cases, designed for versatility and high performance. It features support for water cooling radiators up to 360mm, an 8-bay hotswap for 3.5”/2.5” 12Gb SATA/SAS drives, and adaptive PSU bracket options for diverse power needs. With support for mainstream server motherboards and high-performance GPU cards, including the RTX4090, it’s built for demanding workloads. The R468 also boasts a unique anti-theft front bezel and ample space for cable routing, setting a new standard for industrial PC cases.

    Enhanced Cooling Solutions

    Workstations often face thermal challenges due to high-end components. To address this, the R468 features a dual-mode fan bracket engineered to accommodate both air and water cooling solutions. This innovation grants system integrators increased flexibility during the assembly process, ensuring optimal performance and reliability.

    Superior Versatility

    Equipped with eight hotswap HDD bays, the R468 offers superior versatility compared to traditional tower cases. These bays enable it to function as a compact NAS storage system, a multi-user professional platform, or a small-scale main server for small businesses. As your company expands, this case can transition into a rack-mounted subsystem, complementing other servers. Additionally, the reserved 5.25" ODD space and 3.5" area offer room for future enhancements, making it an excellent choice for diverse applications.

    Expansive Design for High-Performance Components

    The R468 is engineered with an expansive design to accommodate high-performance components like GPU cards, tower CPU coolers, and redundant PSUs, ensuring optimal compatibility. This generous spacing not only facilitates organized cable management but also enhances cooling efficiency, crucial for maintaining system stability and performance.

    Customization Services

    As a server case manufacturer, we also provide customization services for companies looking to create their own custom server cases. Feel free to contact us with your ideas, and we’ll do our best to assist you.

    Feature

    • 8 bay 3.5"/ 2.5" 12 Gb SATA/SAS Hotswap
    • Adaptive PSU bracket options
    • Support mainstream server MB
    • Support high performance GPU cards like RTX4090
    • Unique antitheft front bezel
    • Unrestrained cable routing space

    Click and change content directly from the front-end: no complex back end to deal with.

    Building blocks system

    Create your page from scratch by dragging and dropping pre-made, fully customizable building blocks.

    Special Design

    Screwless autolatch side cover

    Removeable side cover to hide slide rail mounting holes

    Beautiful security door(Optional)

    1. Mount for ATX/2U Redundant PSU
    2. 8cm toolless fan x 2(optional)
    3. 8 PCI Slots
    4. Fan Rack for 360mm Radiator and 12038 fan x 3 (optional)
    5. 5.25" drive bay mounting site with screwless design
    6. 3.5" drive bay mounting site
    7. 3.5" or 2.5" drive bay Hotswap Module(Optional)

    Specifications

    Model YY-R468
    Case Type Full Tower/ Rackmount
    Dimension (mm) 438(H) x 175(W) x 680(D)
    Side Panel Steel
    Color Black
    Material SGCC 1.2mm
    Drive Bays 2 x 5.25" + 1 x 3.5" + 8 x 3.5" hotswap bay (optional)
    Expansion slots 8 Slots
    Motherboard SSI EEB / SSI CEB / ATX / micro ATX
    Fan Support Mid : 120mm x 3
    Rear : 80mm x 2
    Radiator Support Mid : 360mm x 1
    Clearance CPU Height : 145mm
    VGA Length : 340mm
    (compatible with 4090 or Professional Graphics Cards)
    PSU ATX/Redundant
    Packing MOQ 100 pcs
