Storage Server Chassis

YY-R2612 is Design for 2U 12Bay Storage
https://www.yycase.com/web/image/product.template/55/image_1920?unique=adcb4c1

The YY-2612 is a popular 2U 12bay server case. It provides sufficient HDD bays for the storage system. The Clients can freely combine this 2U storage with other storage systems, such as 2U8bay system, 2U IPC or 4U systems in one rack to get the flexibility on the cost and the system configuration. With its powerful 12Gbs SAS expander interface, it can be quickly setup and link with other system, reducing the establishing time and cost. It is a task based storage server chassis. It should be the considerable rackmount case choice for IT specialists.

    This combination does not exist.

    Features & BenefitsPhoto AlbumSpecifications

    Features & Benefits

    • Supports motherboard size up to 12" x 13"
    • 12Gb/s mini-SAS / SATA backplane, or 12Gb/s backplane with expander.
    • Sturdy chassis structure
    • Auto lock top cover for quick access
    • Fresh new appearance design
    • Optimized FPIO arrangement

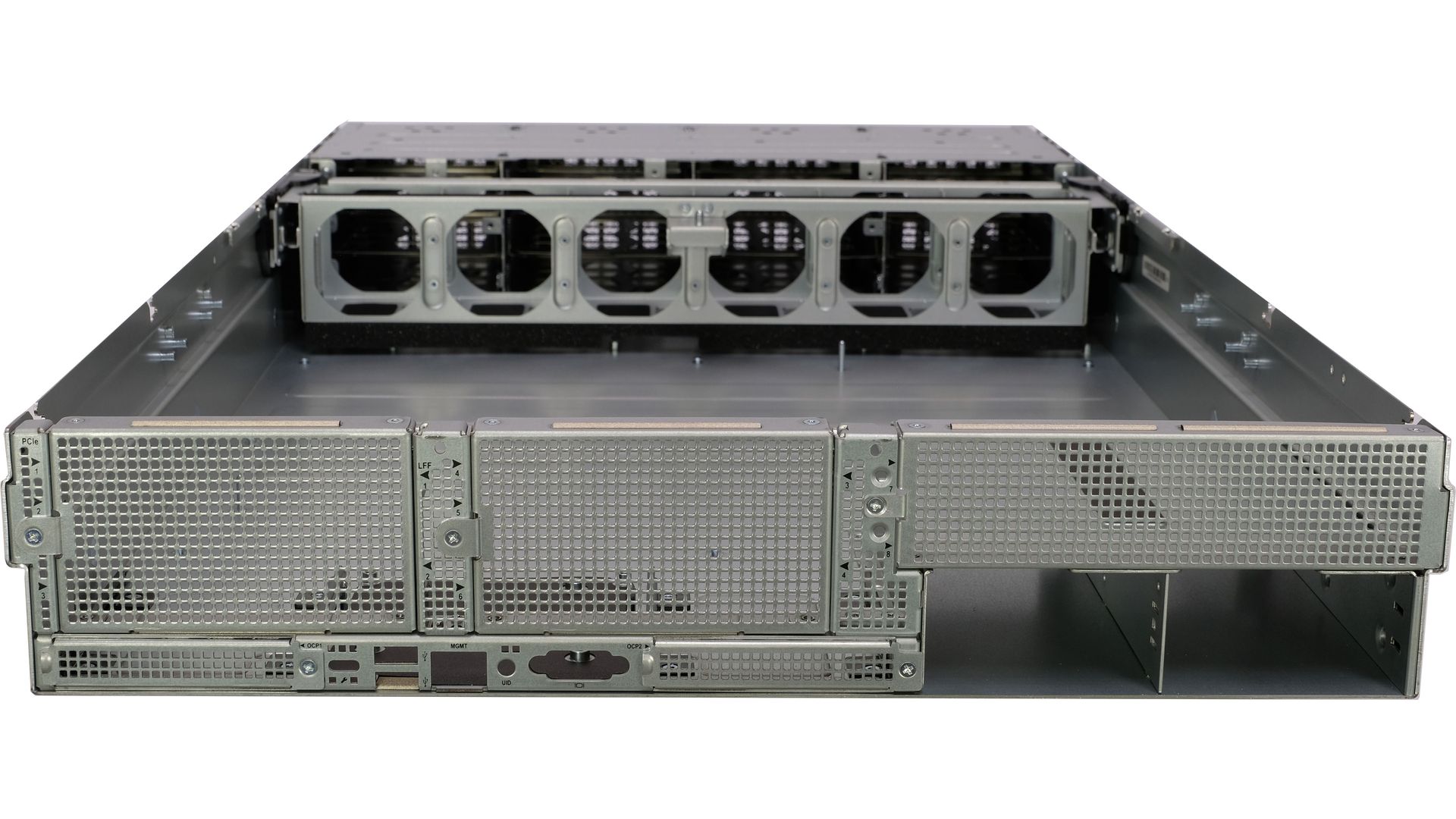

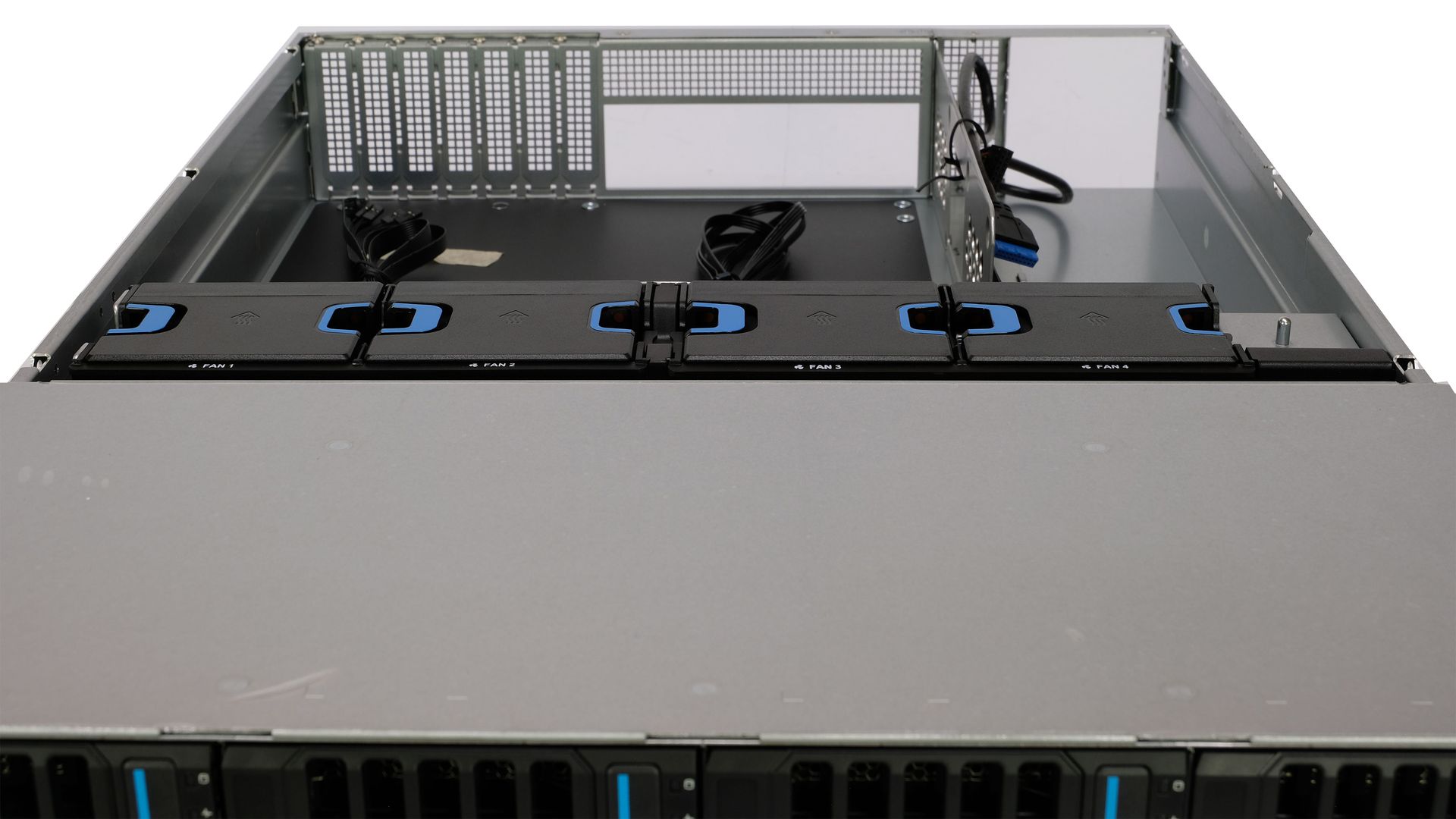

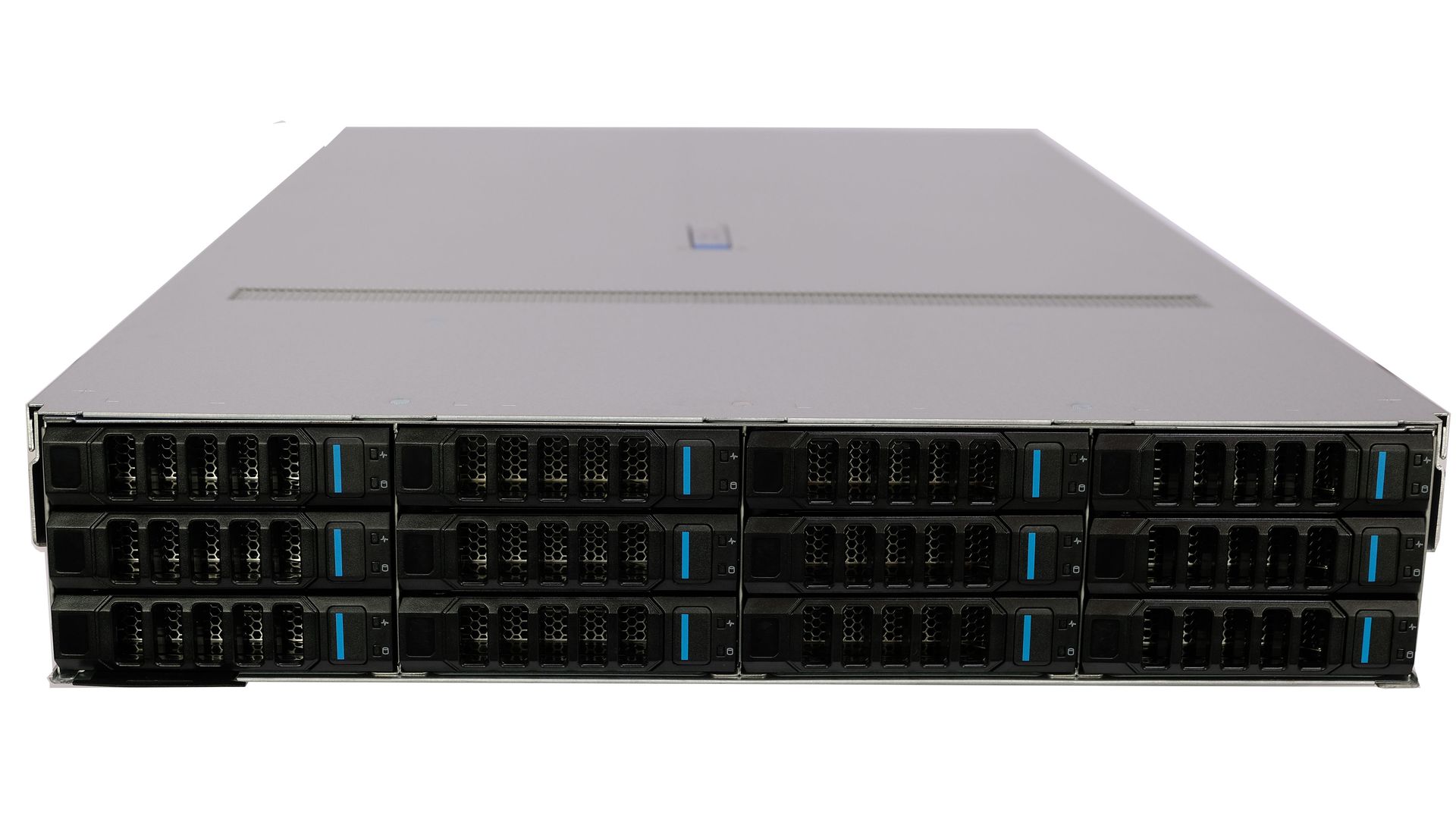

    Photo Album

    Specifications

    Model YY-R2612
    Form Factor 2U
    M/B Form Factor ATX, CEB, Extended ATX (12”x13”)
    Dimensions (WxHxD) mm 436 x 87 x 660 (27”D)
    Drive Bays
    - Slim ODD Bay
    - 2.5”HDD Bay
    - 3.5”HDD Bay
    0
    2(optional)
    12
    PSU Form Factor 2U Single or 2U Redundant

    Front Panel IO and Indicators    		 Power on/off switch, System reset switch
    1 x Power Status, 1 x HDD Activity 2 x LAN Activity
    2 x USB2.0 (default) or 2 x USB3.0 (option)
    System Security Intrusion Switch
    Cooling Fans - Middle 4 x 80x80xT38mm
    Expansion Slots 7 x Low Profile PCI or 3 x Riser PCI
    HDD Backplane 12Gb/s mini-SAS or mini-SAS with expander on-board,
    down compatible with 6Gb/s HDD
    Metal Thickness SGCC 1.2mm
    Net Weight 15kg
    Gross Weight 18kg
    Packing / Container Loading Single Carton: 58x86x20cm (3.52cuft)
    Double Carton: 60x88x22cm (4.1 cuft) Gross Weight +1 kg (Optional)
