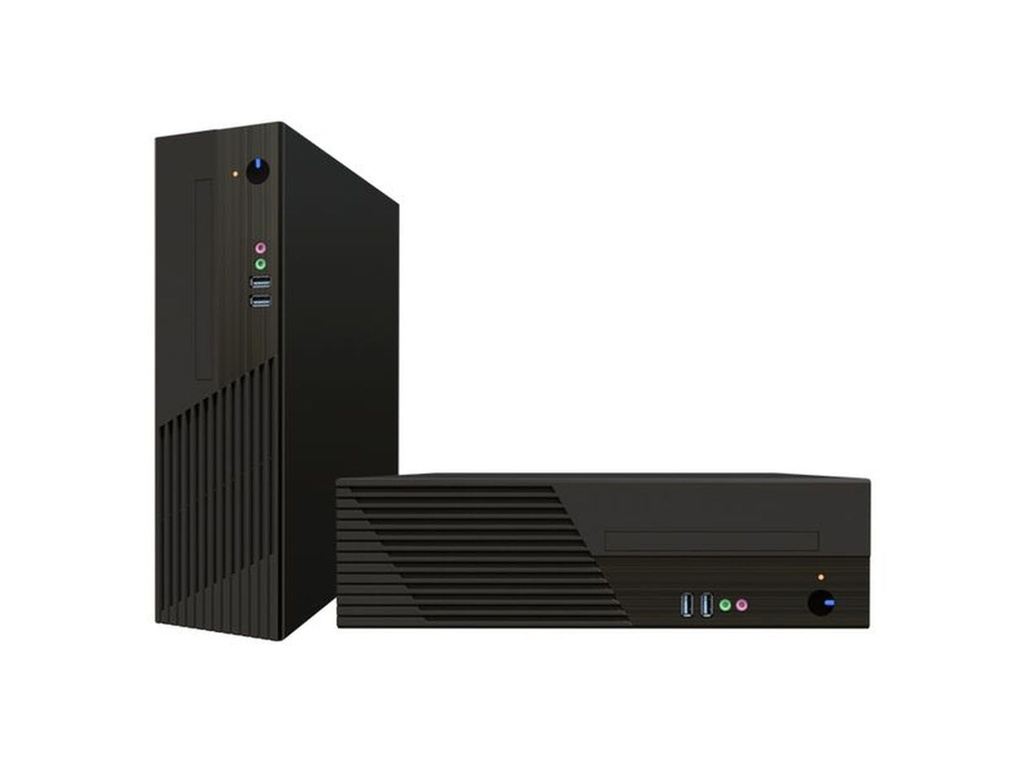

7900 9L Compact PC Chassis

Ideal MicroATX/MiniITX Computer Case
https://www.yycase.com/web/image/product.template/14/image_1920?unique=7c79fbf

Introducing our latest innovation in compact computing: the 9L Micro ATX PC Case. Engineered for convenience, this sleek case features a toolless assembly design, allowing for quick and hassle-free setup and offering robust security features to protect your valuable components. It boasts an expansive CPU cooler clearance zone of up to 75mm and supports GPU card length up to 270mm, ensuring compatibility with a wide range of hardware. With additional upgrade options like FPIO and enhanced fans, coupled with an optimized cooling design, this case is a versatile foundation for any powerful, yet compact PC build.

    This combination does not exist.

    FeatureSpecial DesignSpecifications

    Feature

    • Compatible with Micro-ATX MB and TFX PSU in only 9L volume
    • Flexible FPIO options, can upgrade to USB3.0 and Type C
    • The HDD/ODD cage offers toolless solution for different storage configuration
    • Maximized hardware compatibility, Preserved site for ports, security lock and optional kits
    • Wide clearance zone for CPU Cooler and GPU cards

    Special Design

    • ❶ 4 Low Profile PCIE Slots
    • ❷ Tool-less Auto Lock
    • ❸ Tool-less PCIE Card Bracket
    • ❹ Camlock
    • ❺ Intrusion Switch (optional)
    • ❻ Standard TFX PSU
    • ❼ Screwless bracket for 3.5" & 2.5" Slim ODD both 1 driver space
    • ❽ 1x 2.5" SSD screwless bracket
    • ❾ 6 cm Front Cooling Fan
    • ❿ Kensington Lock

    Specifications

    Model YY-7900
    Case Dimension (structure)
    Case Dimension (with bezel)    		 325 W x 291 D x 92 H mm(8.7L)
    325 W x 298 D x 92 H mm(8.8L)
    Motherboard configuration Standard Micro ATX , mini ITX
    Drive configuration Slim ODD (T9.5mm,screwless)
    1 x 3.5"HDD (screwless) or 1 x 2.5"HDD (screwless)
    1 x 2.5"HDD (screwless)
    CPU Clearance Zone 75mm
    Expansion slots and ports 4 low profile PCI slot
    Front panel control Power switch,Reset Switch, Power LED, HDD LED
    USB 3.0 Gen1x2 + HD Audio(Options for Type C)
    SD Card Reader (option)
    Materials Recyclable, RoHS compliant
    ABS, SGCC t0.6 Sheet Metal
    Emissions Designed to meet FCC class
    Color Black
    Power Supply (option) TFX
    Optional Kits Chassis Intrusion Switch
    60x60x15mm Fan (front-mounted)
