Feature

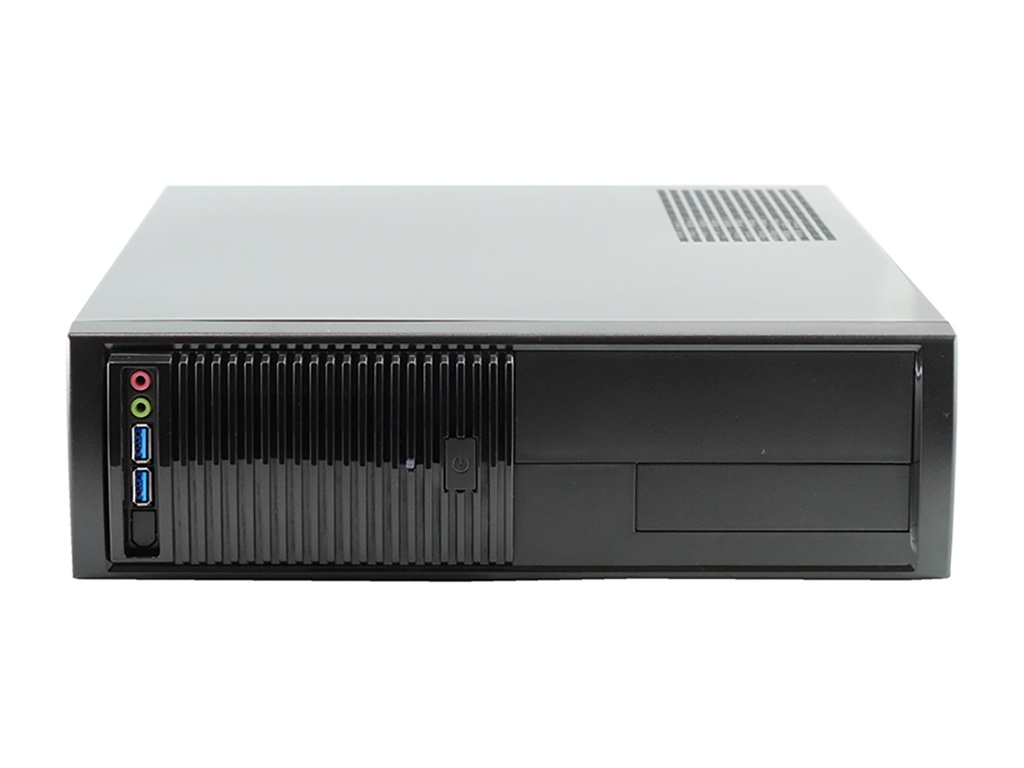

YY-7303 is a 12L small form factor case that can contain two 3.5" HDD, a 5.25" ODD, and a 3.5" exposed drive bay preserved space. Screwless design is one of the essential mechanical designs for this chassis, offering easy installation and repair for the integrators. Regarding the front panel I/O, it supports two ports of USB 2.0 for the standard version and may optionally upgrade to USB 3.1 Gen1 by request.
Special Design
More Feature details
more consideration For every system builder
Compact (33cm tall)
Type A
Always Keep the vent on the side of chassis no worry about the dust or drink drop.
Type B
no vent on the top of cover TFT may stand on it freely
Customer may choose the top cover with different vents location depends the orientation of system usage.
Thermal Solution
- The adjustable air partition can aim the CPU location, to optimum the airflow for each motherboard
- Allow 2 bays HDD installed, an optional 8cm cooling fan(6cm for YY-7404) could be installed behind front bezel
- Designed with Cable Tunnel, to make system assembly easy and upgrade the thermal efficiency
Specifications
| Model | YY-7303 | |
|---|---|---|
| Case dimension | 333mm W x 388mm D x 96mm H ( 13.1"W x 15.2"D x 3.8"H ) without Bezel: 333mm W x 358mm D x 96mm H (13.1"W x 14"Dx 3.8"H ) |
|
| Motherboard configuration | Micro ATX, DTX | |
| Drive configuration | 4 drive bays : 1 - 5.25" 1 - 3.5" 2 - 3.5" hidden |
|
| Optional system cooling fans | 1 * 8015mm DC fan for front-mounted | |
| Expansion slots and ports | 4 slots | |
| Front panel control | Power switch, Power LED, HDD LED USB 2.0*2 + AC97 or HD AUDIO + USB 3.1 gen 1*2 (Option) |
|
| Materials | Recyclable materials; Steel chassis Flame retardant plastic parts and front bezel(HB) |
|
| Emissions | Designed to meet FCC class B-47 CFR part15/IEC/CISPR 22:1993 | |
| Net Weight | 3.2kgs / 7.04lbs | |
| Color | Black Chassis /Black Bezel with Glossy Black | |
| Power Supply | TFX 250W~300W | |
| Options | 1x8015mm fan, Foot Stand, Intrusion Switch, Multi-in-one Card Reader, Internal Speaker + Amp PCB kits |
|
| Packing /Shipping | 0.95cuft/Single packed carton 1070pcs/20'container 2160pcs/40' container 2500pcs/40HQ container |
60pcs/honeycomb box(bulk) 1320pcs/20'container 3000pcs/40' container 3000pcs/40HQ container |
