Feature

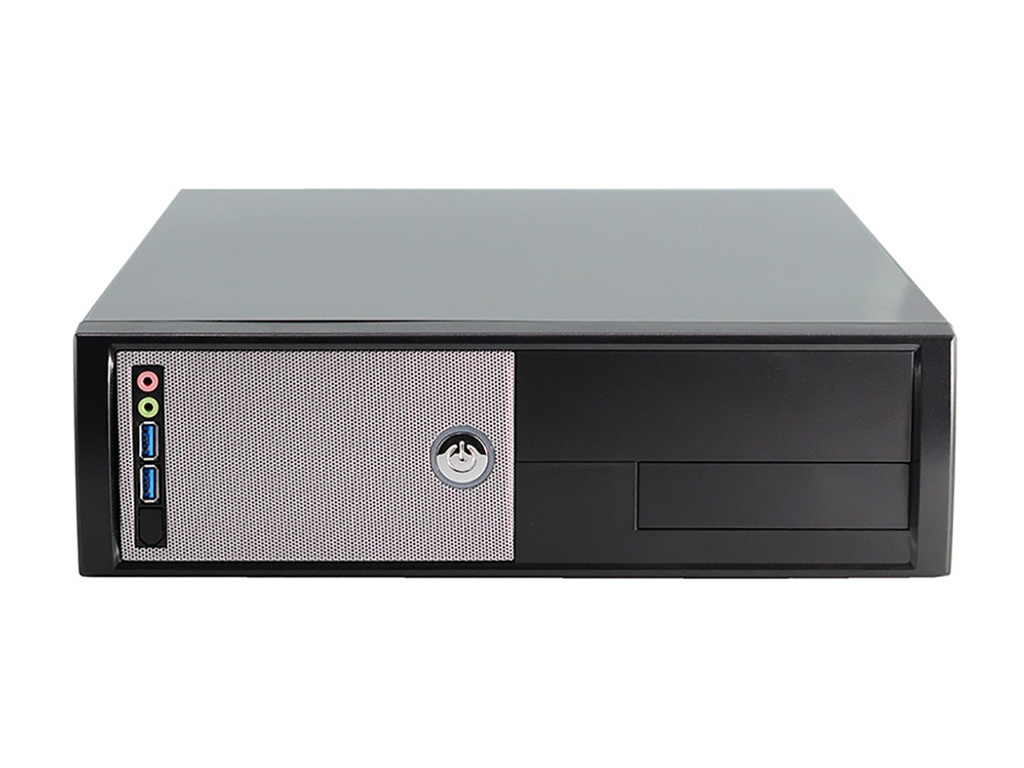

YY-7301
is a 12L micro-ATX pc case that can contain two 3.5" HDD, a 5.25" ODD, and a 3.5" exposed drive bay.
Special Design
More Feature details
more consideration For every system builder
Compact (33cm tall)
Type A
Always Keep the vent on the side of chassis no worry about the dust or drink drop.
Type B
no vent on the top of cover TFT may stand on it freely
Customer may choose the top cover with different vents location depends the orientation of system usage.

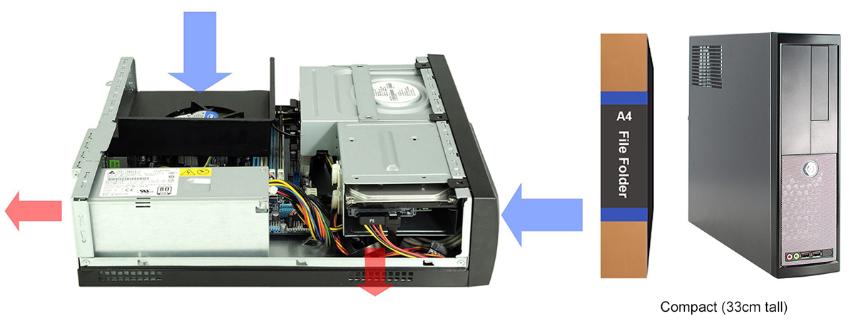

Thermal Solution
- The adjustable air partition can aim the CPU location, to optimum the airflow for each motherboard
- Allow 2 bays HDD installed, an optional 8cm cooling fan(6cm for YY-7404) could be installed behind front bezel
- Designed with Cable Tunnel, to make system assembly easy and upgrade the thermal efficiency
Specifications
| Model | YY-7301 | |
|---|---|---|
| Case dimension | 333mm W x 383mm D x 96mm H ( 13.1"W x 15.2"D x 3.8"H ) without Bezel: 333mm W x 358mm D x 96mm H (13.1"W x 14"Dx 3.8"H ) |
|
| Motherboard configuration | Micro ATX, DTX | |
| Drive configuration | 4 drive bays : 1 - 5.25" 1 - 3.5" 2 - 3.5" hidden |
|
| Optional system cooling fans | 1 * 8015mm DC fan for front-mounted | |
| Expansion slots and ports | 4 slots | |
| Front panel control | Power switch, Power LED, HDD LED USB 2.0*2 + AC97 or HD AUDIO + USB 3.1 gen 1*2 (Option) |
|
| Materials | Recyclable materials; Steel chassis Flame retardant plastic parts and front bezel(HB) |
|
| Emissions | Designed to meet FCC class B-47 CFR part15/IEC/CISPR 22:1993 | |
| Net Weight | 3.2kgs / 7.04lbs | |
| Color | Black Chassis /Black Bezel with Silver Mesh | |
| Power Supply | TFX 250W~300W | |
| Options | 1x8015mm fan, Foot Stand, Intrusion Switch, Multi-in-one Card Reader, Internal Speaker + Amp PCB kits |
|
| Packing /Shipping | 0.95cuft/Single packed carton 1070pcs/20'container 2160pcs/40' container 2500pcs/40HQ container |
60pcs/honeycomb box(bulk) 1320pcs/20'container 3000pcs/40' container 3000pcs/40HQ container |
