Features

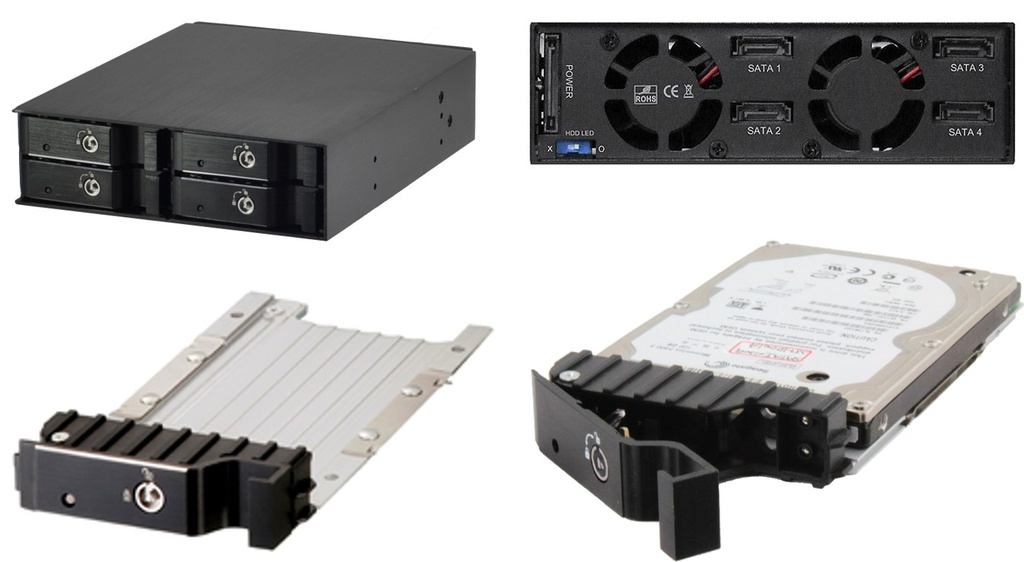

Hot Swap 2.5” HDD Enclosure
Aluminum
With Anti-Vibration Tray Design
- Secure HDD with screws in Aluminum carrier and handle
- Patented Anti-vibration design
- Each tray will be touching with 4 resilient points to limit the top-bottom range of the vibration.
Specifications
| Part No. | 7507-11142 |
|---|---|
| Form Factors | 1*5.25 Bay for 4*2.5" HDD(SSD) 4 x SATA data ports |
| Support HDD types | For 2.5" HDD or SSD type For SATA I,II,III HDD or SAS I, II HDD For SATA 6G or SAS 6G HDD Supported HDD height up to 14.5mm |
| Interface | 7pin data connector x 4 |
| Hot swap | YES |
| Power Connector | SATA 15pin x 1 |
| Keylock/anti shock | * With metal key lock * With guiding rail for anti-vibration design |
| Transfer rate | Support Up to SATA III 6G & SAS 6Gbps(SAS-II) |
| HDD Connection | Cable-less HDD connection |
| Material | Aluminum body & carrier & aluminum front bezel |
| Cooling fan | 40 x 40 x20mm x 2 |
| Power LED | Power ON : Blue |
| Fan Failure LED | YES *Fan failure : Red blinking(slow) LED indication |
| Overheating LED | YES *Overheating : Red blinking(fast) LED indication |
| Data cable | w/o cables |
| Product Colors | Black |
| Dimension WxHxD | 146 x 42 x 180mm |
| Weight | 0.91 kgs |
