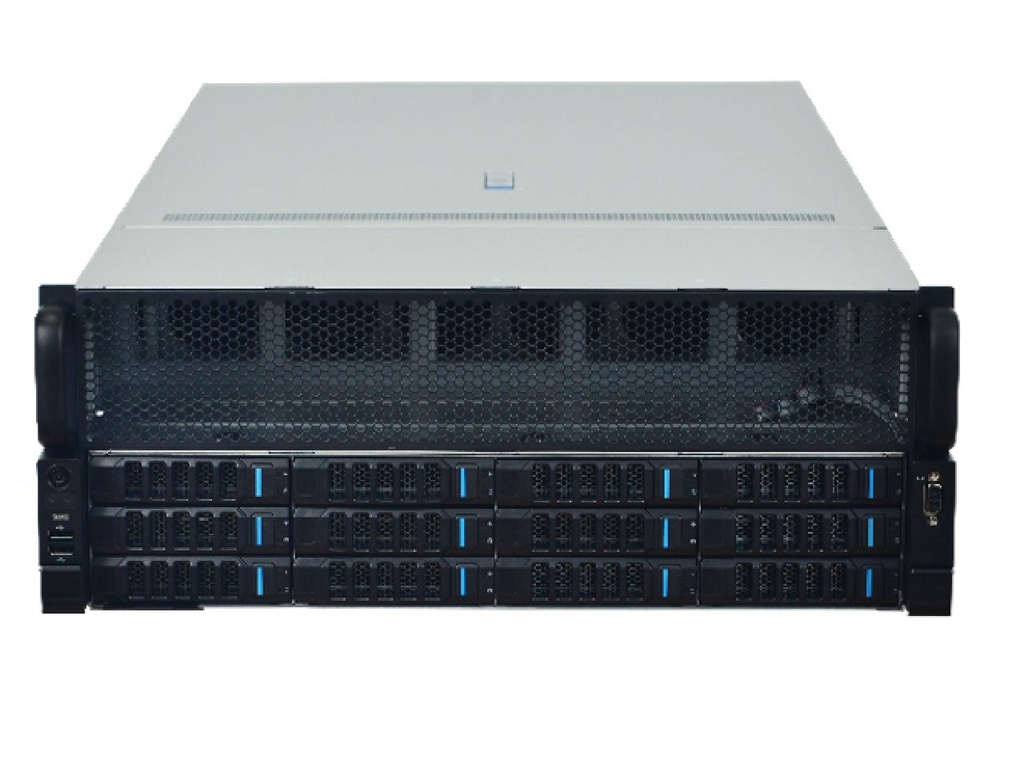

5U 12bay Barebone Server

B5612-G3
https://www.yycase.com/web/image/product.template/162/image_1920?unique=af136d1

5U8GPU Intel AI Server powered by 3rd Gen Intel® Xeon® Scalable processors

Overview

Designed for those who seek an all-in-one solution, the B5612-G3 5U barebone server provides a cost-effective platform for AI deployment with support for 3rd Gen Intel® Xeon® Scalable processors. Leveraging its extra capacity, it accommodates up to 7 dual-width GPU cards and 2 triple-width GPU cards, enabled by high-speed PCIe expansion cards and riser adaptors. Built on a dependable and robust platform, it ensures exceptional efficiency for AI learning tasks. Its high-speed 12-bay frontal design offers versatile data storage options, while its refined I/O configuration enhances overall operational efficiency. This server serves as a strong foundation for creating a stable and high-performance AI environment.

    This combination does not exist.

    FeaturesSpecial DesignSpecifications

    Features

    • Dual Socket P+ (LGA 4189)
      3rd Gen Intel® Xeon® Scalable processors
    • 16 DDR4 slots, supports 3200MHz DDR4 memory
    • Up to 9 Expansion slots, support PCIe 4.0 x16
    • Supports up to 8 Triple-slot Triple-Fan PCIe GPUs
    • Support SAS/SATA/NVMe drives, support hot-swap
    • 1 OCP 3.0 Slots
    • AST2600， support IPMI 2.0


    Special Design

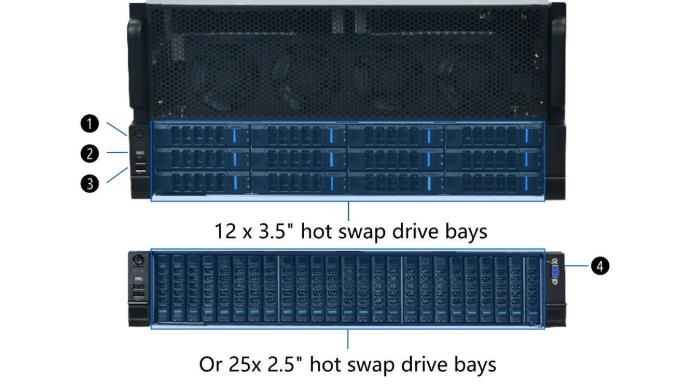

    Front view

    ➊ Power Button
    ➋ UID Button
    ➌ 2x USB2.0 Type A
    ➍ VGA

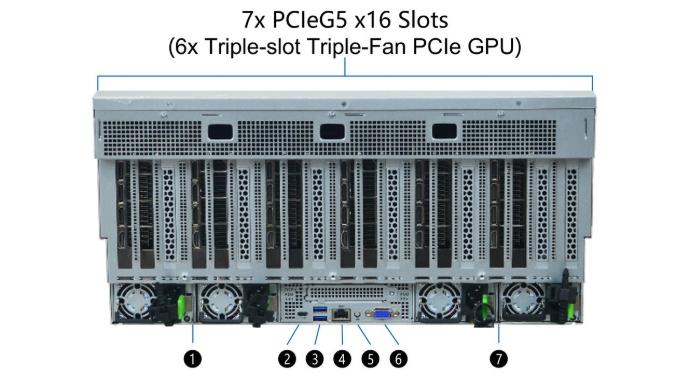

    Rear view

    ➊ PSU
    ➋ UART（Type C port）
    ➌ 2x USB3.0 Type A
    ➍ RJ45（NC-SI）
    ➎ UID
    ➏ VGA
    ➐ PSU

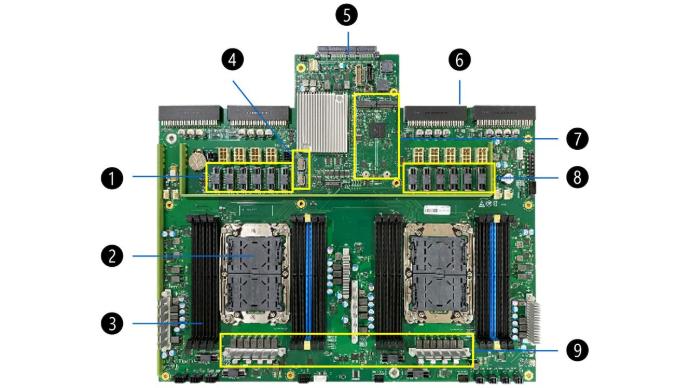

    Motherboard

    ➊ 6x MCIO x8
    ➋ 3th Gen Intel® Xeon® Ice Lake SP
    ➌ 18x DIMM Slots DDR4-3200MHz
    ➍ 2x Slim SAS (to OCP NIC 3.0)
    ➎ DC-SCM
    ➏ PSU
    ➐ 2x M.2 NVMe
    ➑ 6x MCIO 8i
    ➒ 4x MCIO 8i

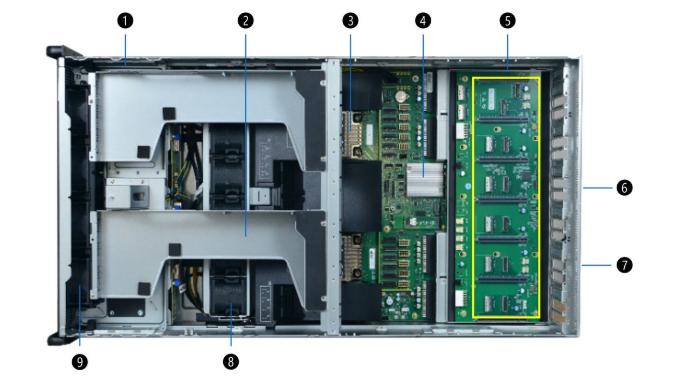

    Top view

    ➊ Storage Module Supports 12LFF or 25SFF
    ➋ 2x PCIeG4 x16 Slots (2x Triple-slot GPU)
    ➌ Intel® Ice Lake
    ➍ Intel® C621A
    ➎ 7 PCIeG4 x16 Slots (6x Triple-slot GPU)
    ➏ DC-SCM AST2600 BMC
    ➐ 3+1 CRPS
    ➑ 6x System Fans Module 6056
    ➒ 4x System Fans 8038

    Specifications

    System ModelB5612-G3
    Processor Supports 3rd Gen. Intel® Xeon® Scalable processors (Ice Lake)
    Supports up to 250W TDP CPUs
    ChipsetIntel® C621A chipset
    PCIe Expansion Front：2 PCIe 4.0 x16 FHFL triple-width slots
    Rear：7 PCIe 4.0 x16 FHFL slots（6 Triple-width + 1 Single-width)
    GPU Card Up to 8 Triple-slot Triple-Fan PCIe GPUs
    Memory 16 DDR4 slots, supports 2666/2933/3200MHz DDR4 memory
    Storage Front hot-swap: Support 12 hot-swap 3.5/2.5" SAS/SATA drives
    Internal M.2: 2 x M.2 (Up to 2280) SSD, support PCIe 3.0 x4
    Raid Support to VROC，RAID 0, 1, 5, 6, 10, 50, and 60，Support Cache protection
    Network 1x 1GbE (RJ45) onboard, Support NCSI function
    1x OCP3.0 slot, support PCIe 3.0 x4
    IO Ports Front: 2x USB3.0, 1x VGA
    Rear: 2x USB3.0, 1x VGA，1x 1GbE (RJ45) ,1x USB TypeC（UART）
    Fan Standard 12 hot-swap N+1 redundant fans, supporting 6038/6056 specifications
    Power Supply 3+1 or 2+2 redundancy (2000W/2200W/2600W/3200W)
    BMC DC-SCM 2.0 module, Based Aspeed AST2600，support IPMI2.0/Redfish
    Server Size 448 x 220 x 917.5mm (WxHxD)
    Operating
    Environment    		 Operation Temperature.: 10° C ~ 35° C ,Non-Operation Temperature:-40° C~70° C
    In/Non-operating Humidity: 20%~90%,(non-condensing)
