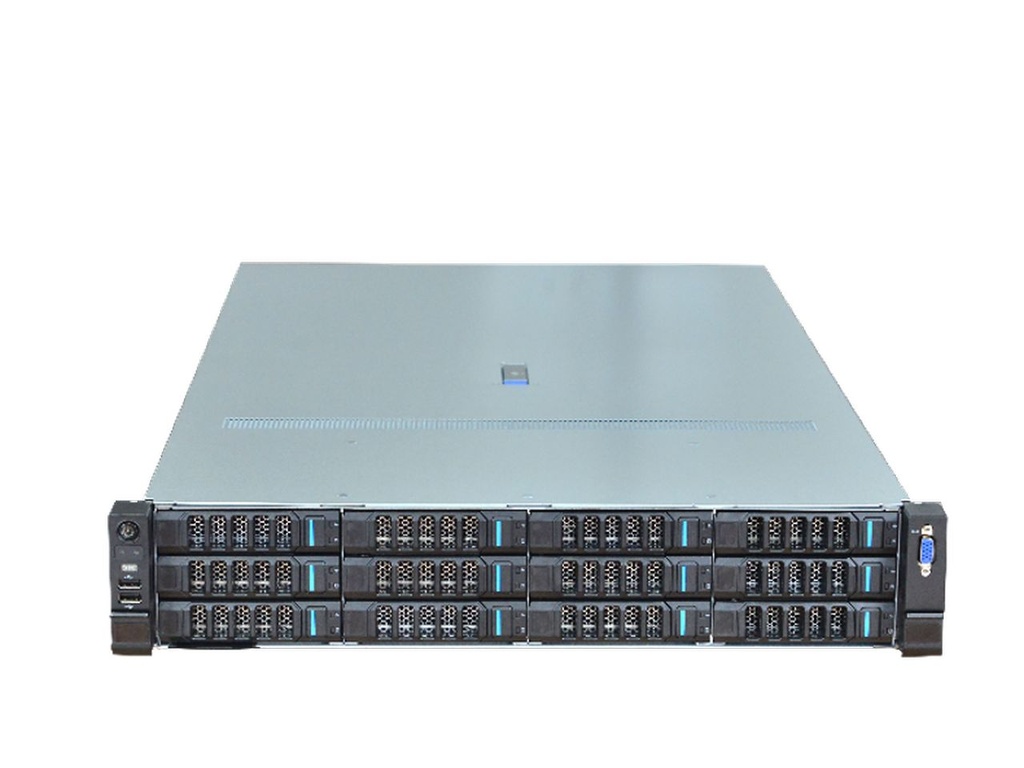

2U 12bay Barebone Server

B2612-G6AP
https://www.yycase.com/web/image/product.template/154/image_1920?unique=5864b13

OCSP2.0 universal server powered by Intel® Xeon® 6 processors

Overview

The B2612-G6AP 2U barebone server delivers exceptional performance with support for 6th Gen Intel® Xeon® 6900 processors. Designed for ultimate stability and reliability, it boasts a high-speed 12-bay frontal design and a carefully optimized I/O configuration, ensuring smooth execution of diverse tasks and challenges.

    This combination does not exist.

    FeaturesSpecial DesignSpecifications

    Features

    • Dual Socket BR (LGA-7529)
      Support Intel® Xeon® 6900 Series processors
    • 24 DIMMs up to 8TB 3DS ECC DDR5-6400: RDIMM
    • Support SAS/SATA/NVMe drives, support hot-swap
    • Up to 10 Expansion slots, support PCIe 5.0 x16
    • 2 OCP 3.0 Slots
    • AST2600, support IPMI 2.0
    • Based OCSP2.0, Decoupling of system modules


    Special Design

    Front view

    ➊ Power Button
    ➋ UID Button
    ➌ 2x USB2.0 Type A
    ➍ VGA

    Rear view

    ➊ OCP3.0-L
    ➋ UART（Type C port）
    ➌ 2x USB3.0 Type A
    ➍ RJ45（NC-SI）
    ➎ UID
    ➏ VGA
    ➐ OCP3.0-R

    Specifications

    System ModelB2612-G6AP
    Processor Supports Intel® Xeon 6900-Series Processors
    Supports up to 500W TDP CPUs
    ChipsetSystem on Chip
    Memory Up to 24 DIMMs supporting up to 6TB 6400MT/s DDR5 RDIMM
    or 3TB 8800MT/s DDR5 MRDIMM
    Storage Front hot-swap: Support 12 hot-swap 3.5/2.5 SAS/SATA hard drives
    Rear hot-swap: Support 2 hot-swap 3.5/2.5 SAS/SATA hard drives or 4 hot-swap 2.5 SAS/SATA/NVMe
    Internal M.2: 2 x M.2 (Up to 2280) SSD
    Raid Support to VROC，RAID 0, 1, 5, 6, 10, 50, and 60，Support Cache SuperCapacitor
    PCIe Expansion UP to 10 x PCIe 5.0 slots (Offer interface expansions of SFF-TA-1033 and SFF-TA-1016 ) (Air Cooled)；
    UP to 6 x PCIe 5.0 slots (Offer interface expansions of SFF-TA-1033 and SFF-TA-1016 ) (Liquid Cooled)；
    OCP: 2 OCP 3.0 Slots
    GPU Card Up to 4 double-width or 10 single-width GPUs
    Network 1x 1GbE (RJ45) onboard, Support NCSI function
    IO Ports Front: 2x USB2.0, 1x VGA(option)
    Rear: 2x USB3.0, 1x VGA，1x 1GbE (RJ45) ,1x USB TypeC（UART）
    Internal: 1 x TPM header
    Fan Standard 4 hot-swap N+1 redundant fans, supporting 6038/6056 specifications
    Power Supply Supports AC 220V 800W, 1300W, 1600W, 2000W, 2200W, 2600W redundant power supplies
    BMC DC-SCM 2.0 module, Based Aspeed AST2600，support IPMI2.0/Redfish
    Server Size 3.45 (H) x 17.6 (W) x 31.5 (D)(87mm x 447.4mm x 799mm)
    Operating
    Environment    		 Operation Temperature.: 10° C ~ 35° C ,Non-Operation Temperature:-40° C~70° C
    In/Non-operating Humidity: 20%~90%,(non-condensing)
