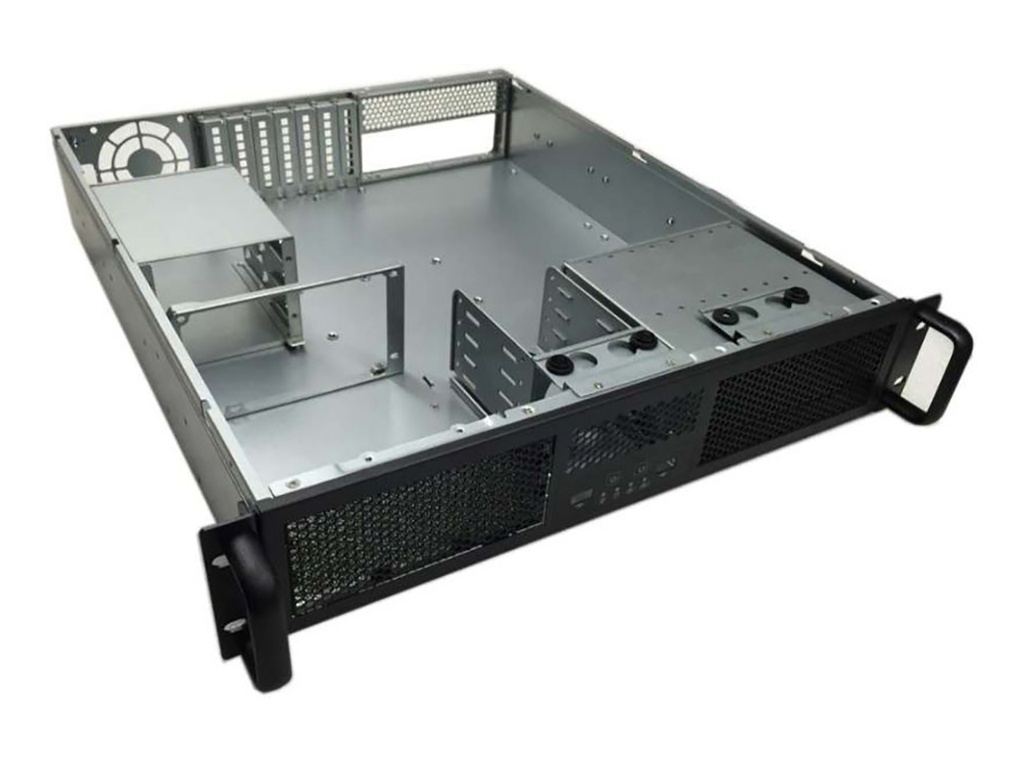

2U Rackmount Server Case

YY-R251 is Design for 2U Rackmount
https://www.yycase.com/web/image/product.template/66/image_1920?unique=6df16d0

YY-R251 is built-in with convertible modular, anti-vibration cage, and dust-proof filter, which is a multi-purpose rack mount pc case.
It is ruggedly constructed with full-height PCI slots. Furthermore, there are also abundant optional kits for distinct assembling requirements, supporting versatile general purposes. It is widely suitable for various industrial applications.

    This combination does not exist.

    Special DesignSpecifications

    Special Design

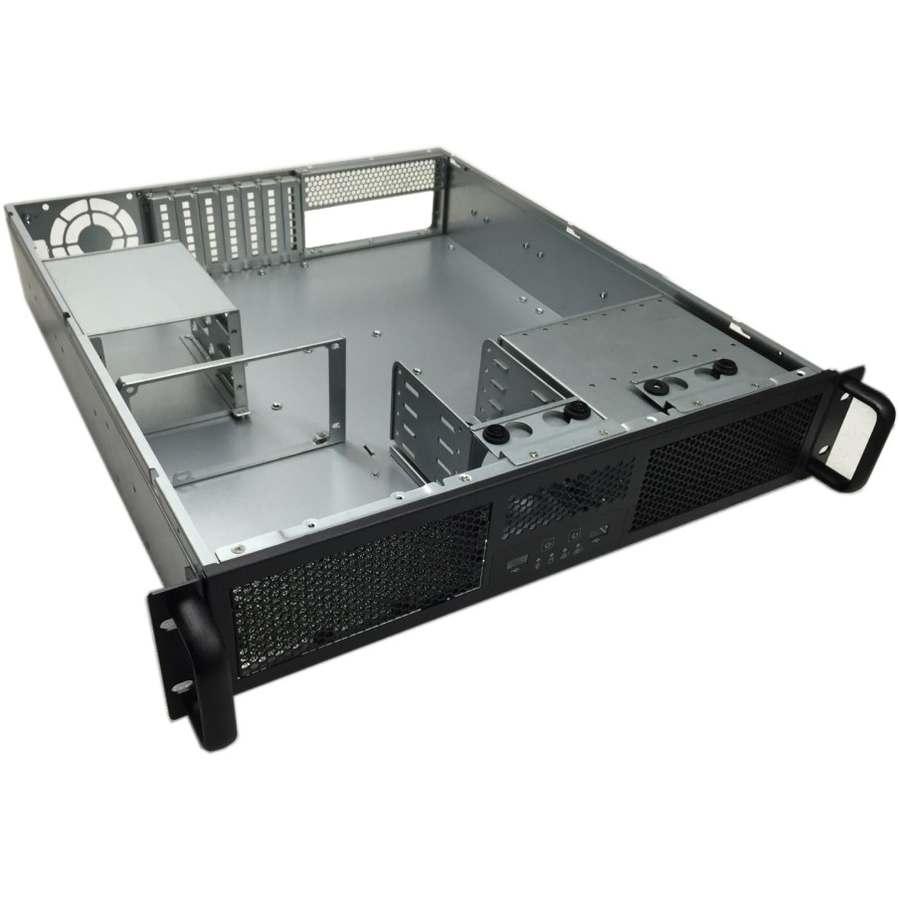

    YY-R251 00

    SPECIFICATIONS
    Model YY-R251 00
    Versatile Cage for
    - 5.25"ODD Bay
    - 3.5"HDD Bay
    - 2.5"HDD Bay
    1
    4
    4
    Optional Cooling Fan
    Rear Exhaust
    3.5"HDD zone
    Front
    1x 8cm t25mm
    1x 6cm t25mm
    1x 6cm t25mm
    Optional PSU ATX

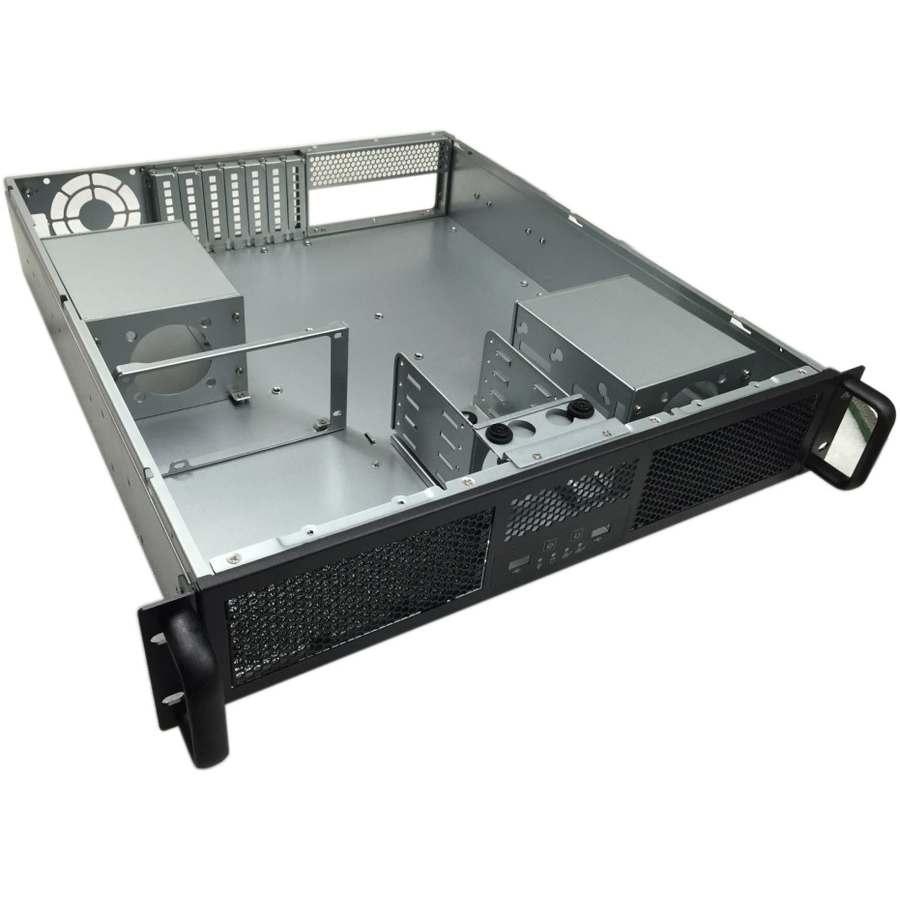

    YY-R251 01

    SPECIFICATIONS
    Model YY-R251 01
    Versatile Cage for
    - 5.25"ODD Bay
    - 3.5"HDD Bay
    - 2.5"HDD Bay
    -
    6
    4
    Optional Cooling Fan
    Rear Exhaust
    3.5"HDD zone
    Front
    1x 8cm t25mm
    1x 6cm t25mm
    1x 6cm t25mm
    Optional PSU ATX

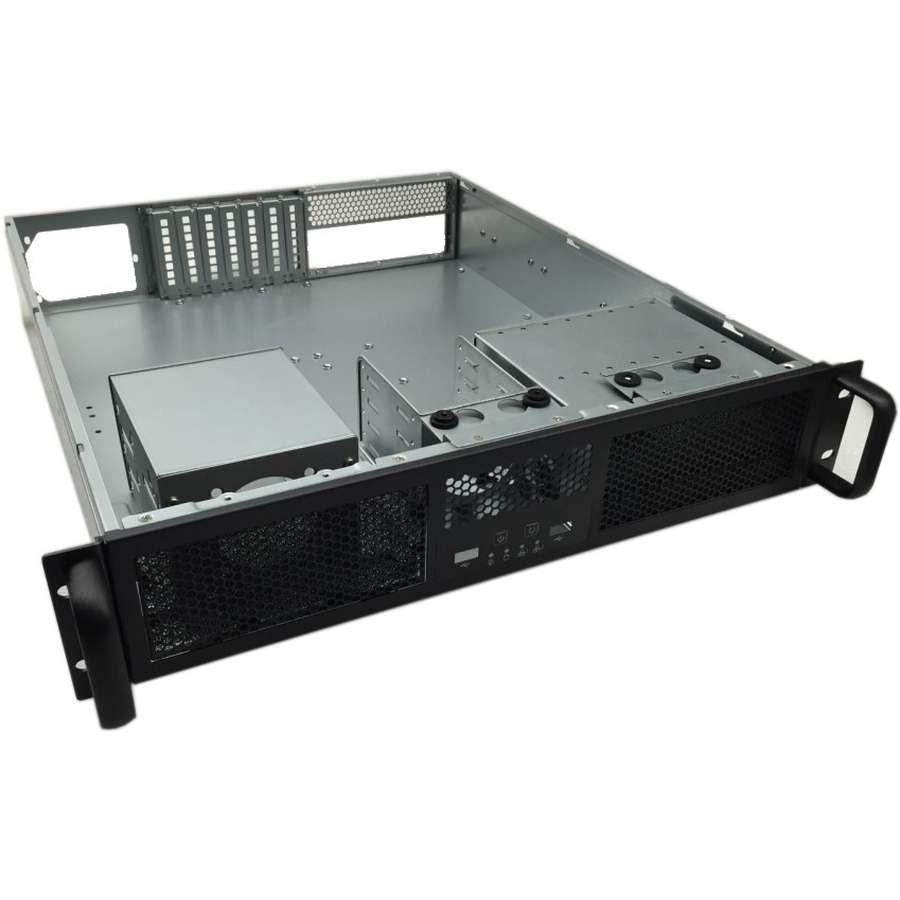

    YY-R251 02

    SPECIFICATIONS
    Model YY-R251 02
    Versatile Cage for
    - 5.25"ODD Bay
    - 3.5"HDD Bay
    - 2.5"HDD Bay
    1
    4
    4
    Optional Cooling Fan
    Rear Exhaust
    3.5"HDD zone
    Front
    -
    1x 6cm t25mm
    1x 6cm t25mm
    Optional PSU 2U

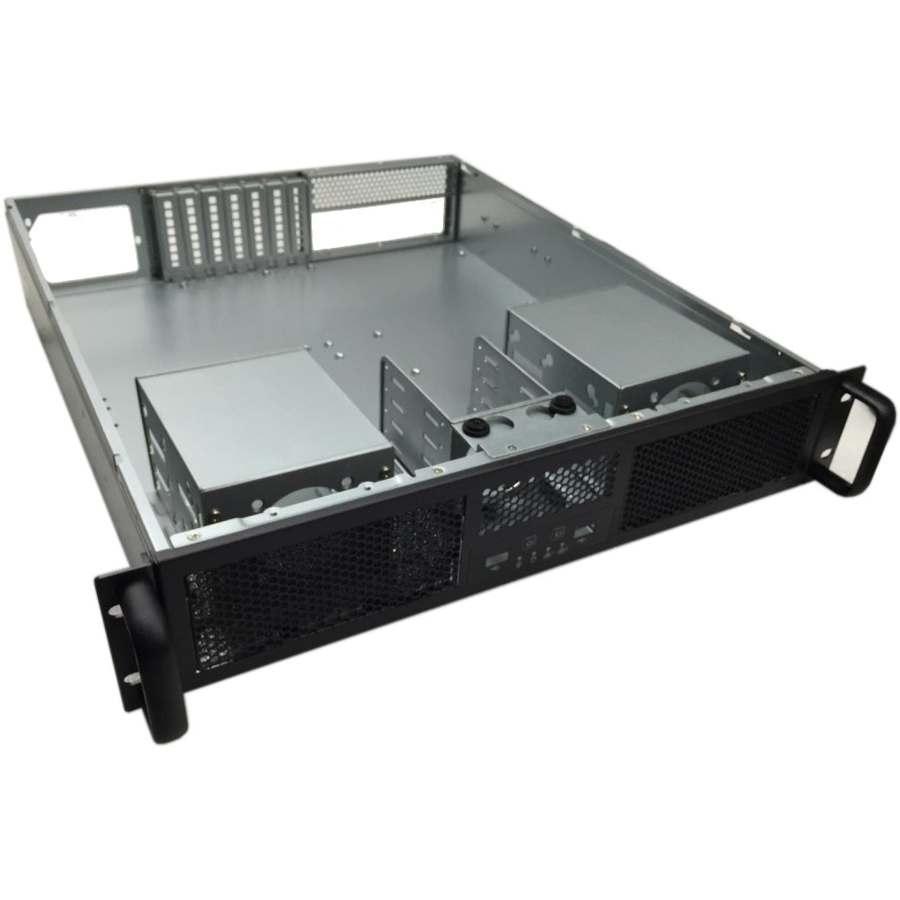

    YY-R251 03

    SPECIFICATIONS
    Model YY-R251 03
    Versatile Cage for
    - 5.25"ODD Bay
    - 3.5"HDD Bay
    - 2.5"HDD Bay
    -
    6
    4
    Optional Cooling Fan
    Rear Exhaust
    3.5"HDD zone
    Front
    -
    2x 6cm t25mm
    1x 6cm t25mm
    Optional PSU 2U

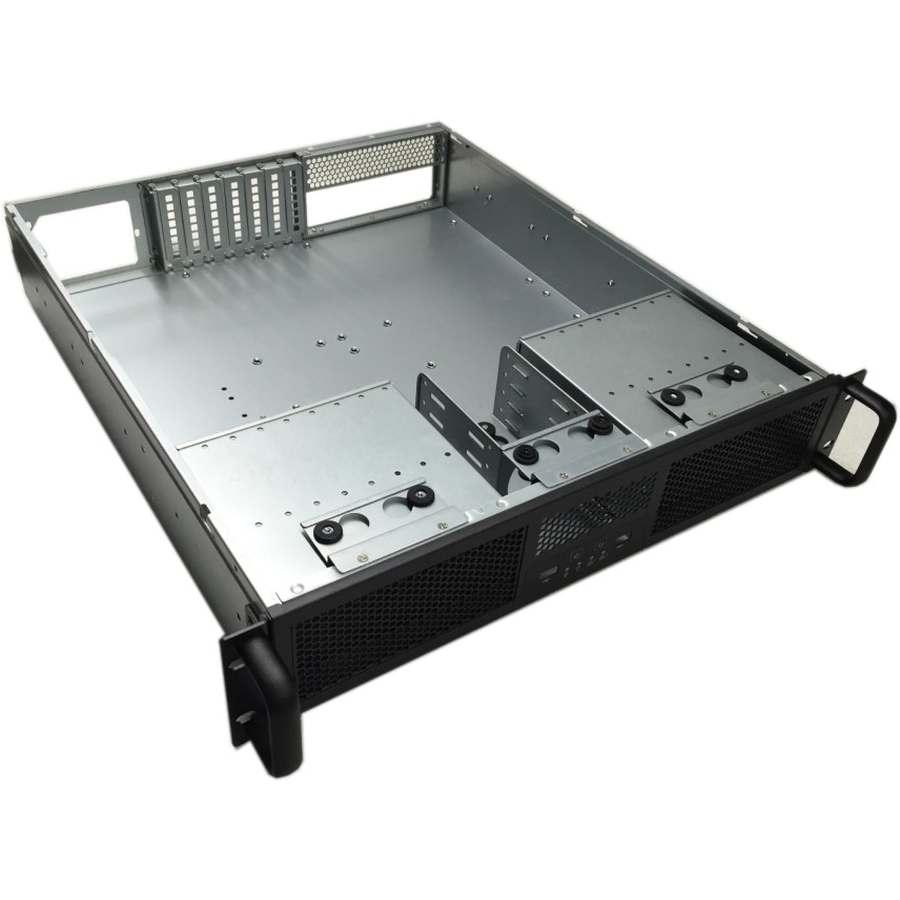

    YY-R251 04

    SPECIFICATIONS
    Model YY-R251 04
    Versatile Cage for
    - 5.25"ODD Bay
    - 3.5"HDD Bay
    - 2.5"HDD Bay
    2
    2
    4
    Optional Cooling Fan
    Rear Exhaust
    3.5"HDD zone
    Front
    -
    -
    1x 6cm t25mm
    Optional PSU 2U

    Specifications

    Model YY-R251
    M/B Support 12" x9.6" / 12"x 10.5"
    Front Panel I/O
    and Indicators    		 1x Power switch, 1x Reset switch
    1x Power LED, 1x HDD LED, 2x LAN LED
    2x USB2.0 (default) or 2x USB3.0 (option)
    Material SGCC t1.2mm
    Dimension WxHxD 430 x 88 x 510mm
    Packing
    Container Loading    		 55x22x63 (2.69cuft)
    20': 370pcs / 40': 740pcs
