4U 24Bay Storage Server Case YY-R4624


Overview

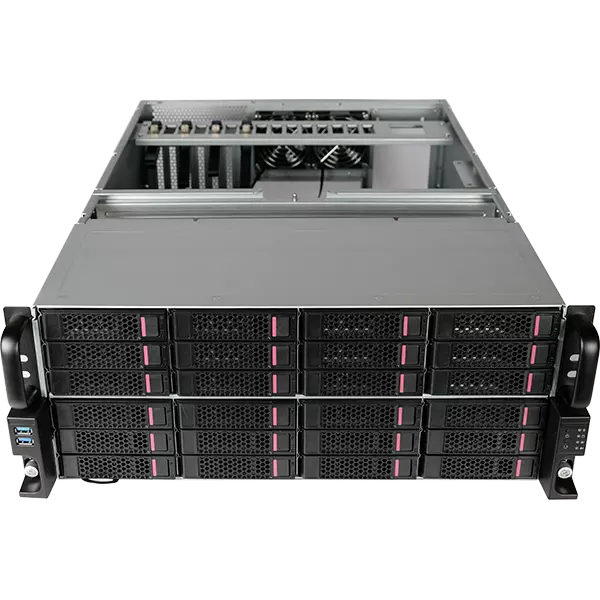

Bays and Bays! The YY-4624 is the ultimate storage server chassis aiming to provide the most rooms for the storage device. With the 12Gbs SAS expander interface, The frontal 24 HDD bays can be easily configured from the control side and it can efficiently reduce the establishing time and cost. The 3 12cm cooling fans help introduce the fresh air to lessen the risk from the heat shock. With the flexible backboard options, our client can build the system freely for different task and application. It is the best rackmount nas case choice for IT specialists. .



Features & Benefits

  • Optional PCI Card Retainer for holding different height add-on cards

Branding Service

For batch purchasing, we provide advanced custom PC case design service.

Our customization service covers Front panel ID Design and Modeling, Mechanical Modification, Production Optimization, Packaging Customization and Branding Service from Logo Printing or Logo Engraving to Branding Carton.

With years of experience, our service is fast and accurate. We can help you realize the ideal design works, no matter desk PC case design, gaming case design or mini ITX case design. Feel free to consult us with your any idea or concept.
We can help you find the best brand custom PC case solution!

Case Study How to Start What we do Why Us

Special Design

Specifications

Model YY-R4624
Form Factor 4U
M/B Form Factor ATX, CEB, Extended ATX (12”x13”)
Dimensions (WxHxD) mm 442 x 176 x 660 (25.6”D)
Drive Bays
- Slim ODD Bay
- 2.5”HDD Bay
- 3.5”HDD Bay

0
0
24
PSU Form Factor ATX Single or Mini Redundant

Front Panel IO and Indicators
Power on/off switch, System reset switch
1 x Power Status, 1 x HDD Activity 2 x LAN Activity
2 x USB2.0 (default) or 2 x USB3.0 (option)
System Security Intrusion Switch
Cooling Fans
- Middle
- Rear Exhaust Out

3 x 120x120xT38mm
2 x 80x80xT25mm

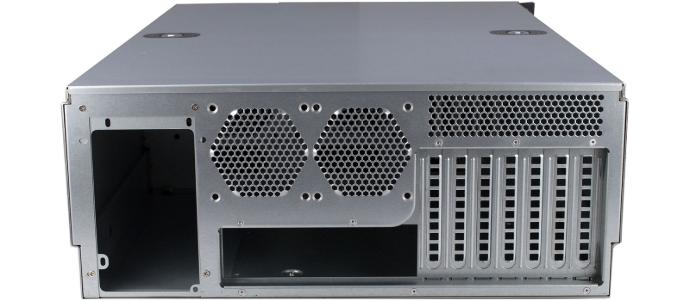

Expansion Slots 7 x Full Height and Full Length
HDD Backplane 12Gb/s mini-SAS or mini-SAS,
down compatible with 6Gb/s HDD
Metal Thickness SGCC 1.2mm
Net Weight 16.5kg
Gross Weight 20.2kg
Packing / Container Loading 55x78x30 (4.55cuft)
